IP66 Rugged LCD Monitor , IR Industrial Touch Screen Monitor Waterproof HDMI Input DC 24V
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD43CMT5IPS1 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 15-20 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 1000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| View Angels | 89/89/89/89 | IP Rating | IP65/IP66/IP67 |
|---|---|---|---|
| Touch Options | PCAP, IR | Resolution | 1920 X 1080 |
| Water Proof Connector | HDMI Input, USB Port, DC 24V | Housing Type | Stainless Steel Or Aluminum |
| Brightness | 500nits, 1000-3000nits Optional | Mounting | VESA, |
| Contrast Ratio | 1400:1 | MTBF | 50000H |
| Highlight | rugged display monitors,rugged computer monitor |
||
Product Description

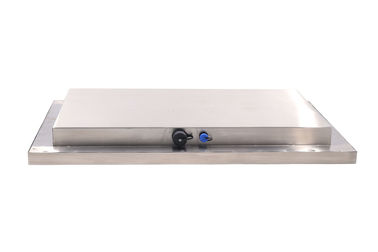

43" rugged 304 IP66 stainless steel LCD IR touch monitor with waterproof HDMI input DC 24V
Specifications:
| Panel | Cell Type/Glass Surface | TFT | |
| Aspect Ratio/Size | 43” 16:9 | ||
| Active Area/Pixel Pitch | 1941.184(H) x 529.416(V)/0.4902mm | ||
| Native Resolution/Colors | 1920 x 1080 /16.7M | ||
| Brightness/Contrast | 400nits/1400:1 | ||
| Response Time | 8ms | ||
| Viewing Angle(Typical) | 178/178 | ||
| Light Source | LED Backlight with 50000H | ||
| Input signals | HDMI | ||
| Convenient Features | Backlight adjustment, Plug & Play, OSD Multi-Languages | ||
| Power | Internal power supply with universal/Auto-Sensing, AC100~240V | ||
| Power Consumption | Operation/Power Saving | Bellow 140W | |
| Operating Temperature | -0~50℃ | ||
| Storage Temperature | -20~70℃ | ||
| Touch Panel/Touch interface | IR touch screen/ USB | ||
| Key Control | Power on/off with LED, Menu, Select, Adjustment(Right/Left) | ||
| Order Information | 43 stainless steel chassis monitor with IR touch/ITD43CMT2IPS1 | ||
|
|||
| 43” stainless steel chassis monitor with tempered glass/ITD43CMG1IPS1 | |||
ITD rugged industrial rugged full IP65/IP66 LCD display series features industrial-duty fully sealed NEMA 4/IP65 stainless steel chassis, for specially use in hygienic and harsh environments. It offers extra protection from extensive corrosive environments with the intrusion of dust, rain, hose directed water, and applications where corrosive materials and caustic cleaners are used. The additional high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality and guaranteeing product life cycle longevity, stability, and reliability.
FEATURES
▪IP65/IP66 sealed, with anti-corrosive rubber providing 360 degree protection
▪Full IP65/IP66 I/O connectors protect from any particles, water, and corrosive agents
▪Modularize mechanical design provides flexible product configuration and easy maintenance
▪Complete custom design/solution
▪CE, FCC, RoHS Compliance
Optional
•IR touch, PCAP touch, AR/AG protective glass
•Optical bonding
•Aluminum alloy housing, economical steel housing
•Full IP67
