Fanless All In One Industrie Pc Touch Screen With RFID And Finger Printer
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD17PPCT5XI* |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,wooden case,pallet |
| Delivery Time | 7-12 work days |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 10000 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel I3/i5/i7 | Memory | DRAM4GB |
|---|---|---|---|
| Storage | 64G | OS | Windows 7/10. Linux |
| I/O | 4 X USB,2 X COM, 1 X HDMI,1 X RJ45 | 24/7/365 Working Supported | Yes |
| Operating Temperature | -10~60℃ -20~70℃ Optional | MTBF | 50000H |
| Power | 1 X DC 24V, DC12V, DC9-36V Optional | Failure Rate | 0.6% |
| Aging Test | 48H | Certificates | CE, FCC, RoHS |
| Color | Black Or Silver | ||
| Highlight | touch panel computer,touch monitor pc |
||
Product Description
front panel pc industrual fanless all in one pc touch screen with RFID and finger printer
The ITD industrial multi-touch screen panel mounted panel PC is fully-integrated‚ multi capacitive touch screen or resistive touch screen that combines high-performance Intel® Core™ Dual/Quad Core Processor i3/i5/i7 with Projected Capacitive Touch (PCT or PCAP) Technology or single resistive touch in a sleek industrial-grade IP65/ NEMA 4/4x Ingress rating TFT-LCD flat panel with flat front surface design. The ITD Windows-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Windows 7/8/10 and other popular programming languages. The ITD multi-touch panel mounted panel PC is designed for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.
| Panel | Cell Type/Glass Surface | TFT |
| Size | 17” | |
| Aspect Ratio | 4:3 | |
| Active Area | 337.92(H) x 270.33(V)mm | |
| Pixel Pitch | 0.264 × 0.264mm | |
| Native Resolution | 1280 x 1024 | |
| Colors | 16.7M | |
| Brightness | 250cd/㎡ | |
| Contrast | 1000:1 | |
| Response Time | 25ms | |
| Viewing Angle(Typical) | 170/160 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SPECIFICATION
| System | CPU | Intel® Core i3/i5/i7 Processor |
| BIOS | AMI | |
| Chipset | TBA | |
| Memory | 2 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.16GB | |
| Graphic Chipset | CPU integrated graphics HD and support 1080p | |
| Storage | 32GB SSD or 320GB HDD | |
| LAN | 1 x 10/100/1000Mbps Ethernet | |
| Input / Output | Serial Ports | 1 x COM |
| USB Ports | 4 X USB | |
| VGA Port | 1 x VGA | |
| HDMI Port | 1x HDMI Port | |
| Audio Card |
with Realtek ALC662 Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN |
|
| Power | Input Voltage | DC 12V |
| Operation/Power Saving | 77W | |
| Environment Considerations | Operating Temperature | -10~60℃ (-20~70℃ Optional) |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90% | |
| Order Information | 17”Flat Bezel Panel PC with PCAP Touch i3/i5/i7 /ITD17PPCT5XI* | |
| 17”Flat Bezel Panel PC with Resistive Touch i3/i5/i7 /ITD17PPCT1XI* | ||
| 17” Flat Bezel Panel PC with Tempered Glass i3/i5/i7 /ITD17PPCG1XI* | ||
FEATURES
▪ Easy-to-clean, true flat front surface without bezel
▪ Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA
▪ Ten independent touch points (with Windows 7/8/10, Android, Linux operating systems)
▪ Eliminates dust and debris build-up at the edge and corners of the display
▪ Provides improved power efficiency and reduced consumption
▪ Responds to a light touch to activate response
▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel
▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments
▪ CE, FCC, RoHS Compliance

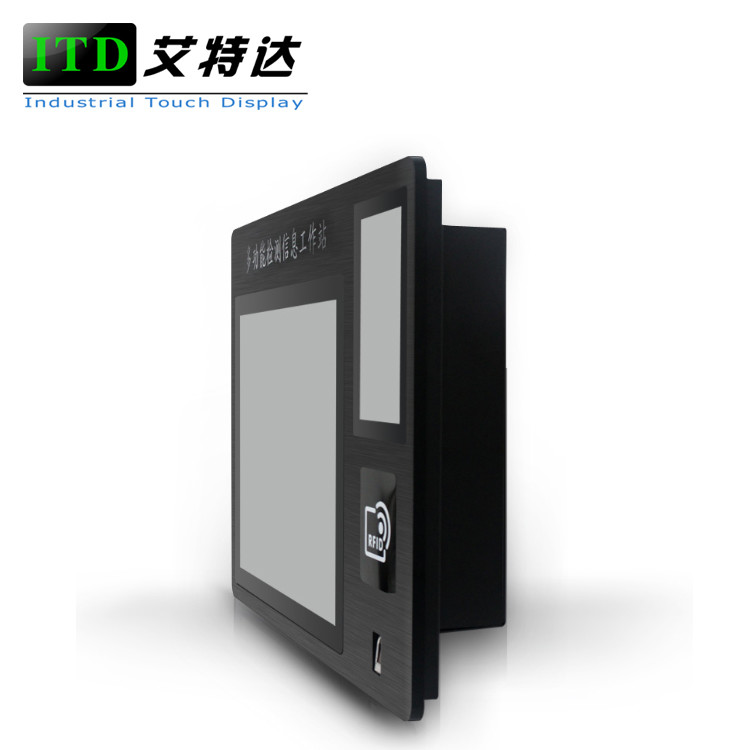

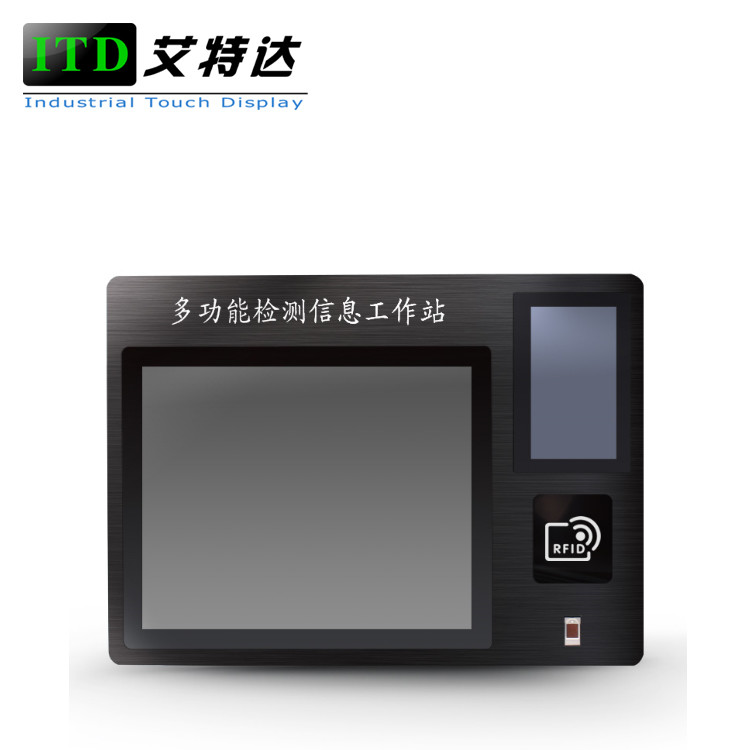

Product Display:
