8 Watt 7 Inch Industrial Panel PC Touch Screen Flat Surface Capacitive For Kios
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 1024X600 | Operating Temperature | -10~60℃,-20~70℃ Optional |
|---|---|---|---|
| Backlight | LED Back-light With 50000hours | Viewing Angle | 85°/85°/85°/85° |
| Input Signals | VGA,HDMI | MTBF | 50000hours |
| Touch Type | Projective Capacitive Touch 10 Points | Power Consumption | 8W |
| Mount Interface | VESA 75*75mm | Material | Aluminum Alloy Frame, Steel Chassis |
| Keywords | 7 Inch LED Touch Screen Monitor | ||
| Highlight | industrial touch display,industrial computer monitor |
||
Product Description
touch screen industrial monitor 7 inch flat surface capacitive for kiosk
BASIC PARAMETERS
2. 1 General
| Model | ITD07OFT5K1 |
| IP | IP65(for front panel only) |
| Outline Dimensions | Width: 190mm Height: 122mm Depth: 28.8mm |
| Weight(N.W/G.W) | 0.74Kg / 1.75Kg (Approx.) |
| Packing Dimension | 330(W) × 280(H) × 95(D)mm |
| Speakers | 8Ω3W |
| LCD Type | 7＂Active matrix TFT-LCD |
| Video Input | VGA and HDMI, Audio |
| Recommend Resolution | 1024×600@60Hz,75Hz |
| OSD controls | Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External Brick Input (line) Voltage: 100-240 VAC, 50-60 Hz Output Voltage/Current: 12V at 3A Max. |
| Power Consumption | 6W |
| Mount Interface |
1)VESA 75×75mm 2)Mounting Brackets optional |
| Regular Warranty | 1 Year for TFT Panel and 2 Years for Others |
| Agency Approval | FCC,CE,RoHS Certified |
2. 2 LCD Specification
| Active Area(mm) | 155.5(H) x 87.5(V) |
| Resolution | 1024×600 |
| Dot Pitch(mm) | 0.150×0.150 |
| Nominal Input Voltage VDD | +3.3V(Typ) |
| Viewing angle (L/R/T/B) | 85°/85°/85°/85° |
| Contrast | 800:1 |
| Luminance(cd/m2) | 300 |
| Response Time(Rising/Falling) | 10/15ms |
| Support Color | 16.7M |
| Screen Scanning | 60Hz |
| Backlight MTBF(hr) | 50000h |
2.3 Touch Screen Specification
| Type | Projected Capacitive Touch Screen |
| Resolution | 4096×4096 |
| Light Transmission | 85%±5% |
| Touch Life Cycle | 50 millions times |
| Touch Response time | 5ms |
| Touch System Interface | USB A type |
| Operating System Support |
Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above Drivers for Windows CE/XP, Android |
2.4 External AC Power Adapter
| Output | 12V DC/3A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
2.5 Environment
| Operating Temp. | -10～60°C |
| Storage Temp. | -20～70°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |

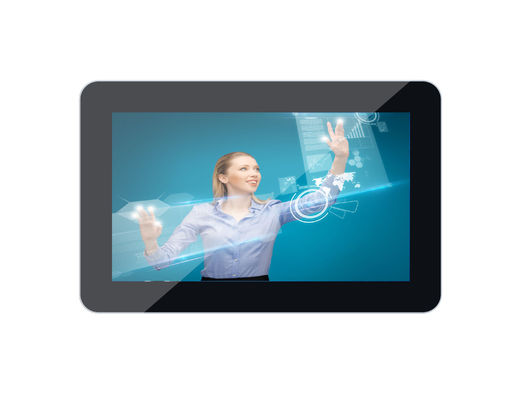

Product image:
