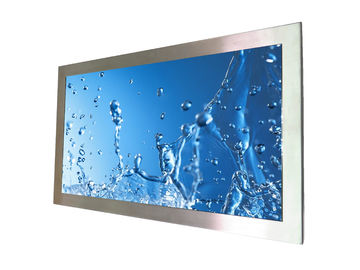

Waterproof Sunlight Readable LCD Monitor Stainless Steel 1000 Nits 27 Inch Touch Screen
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD27CMT5HBIPS2 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,wooden case,pallet |
| Delivery Time | 15-20 work days |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 10000 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Touch Type | PCAP, IR | Waterproof Connector | HDMI Input, USB Port, AC100-240V Input |
|---|---|---|---|
| Housing Type | Stainless Steel Or Aluminum Alloy | Operating Temperature | -10~60℃ |
| IP Rate | IP65/IP66, IP67 Optional | Viewing Angles | 89/89/89/89 |
| MTBF | 50000Hours | Warranty | 1 Year For TFT Panels And 2 Years For Others |
| Brightness | 1000nits, 1500nits Optional | ||
| Highlight | sunlight readable display,sun readable lcd display |
||
Product Description
Outdoor waterproof stainless steel 1000nits 27 inch sunlight readable touch screen
ITD rugged industrial rugged high bright full IP65/IP66 LCD display series features industrial-duty fully sealed NEMA 4/IP65 stainless steel chassis, for specially use in hygienic and harsh indoor/outdoor environments. It offers extra protection from extensive corrosive environments with the intrusion of dust, rain, hose directed water, and applications where corrosive materials and caustic cleaners are used. The additional high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality and guaranteeing product life cycle longevity, stability, and reliability.
Specs:
| Model | ITD21CMG1IPHBS2 | ITD24CMG1IPHBS2 | ITD27CMG1IPHBS2 | ITD32CMG1IPHBS2 |
| Size | 21.5” | 24” | 27” | 32” |
| Active Area | 476.64(H)x248.25(V) | 531.36(H)x298.89(V) | 597.6(H)x336.15(V) | 698.4(H)x392.85(V) |
| Pixel Pitch | 0.248mm | 0.2768mm | 0.3114mm | 0.3638mm |
| Contrast Ratio | 1000:1 | 1000:1 | 1000:1 | 1200:1 |
| Resolution | 1920 x 1080 | 1920x1080 | 1920x1080 | 1920x1080 |
| Brightness | 1000nits | 1000nits | 1000nits | 1000nits |
| Viewing Angles | 85/85/80/80 | 89/89/89/89 | 89/89/89/89 | 89/8/9/89/89 |
| Response Time | 5ms | 5ms | 5ms | 8ms |
| Colors | 16.7M | 16.7M | 16.7M | 16.7M |
| Backlight | LED | LED | LED | LED |
| Input Signal Connectors | HDMI (Waterproof Connector) |
| Power (Waterproof Connector) | |
| USB/RS232 (Waterproof Connector) Optional for Touch Connection | |
| Power Input | External DC 12V for 7”~24”; Internal AC 110-240V for 27”~65” |
| Power Consumption | TBA |
| Operating Temperature | -10~60℃ for 7”~24”; 0~50℃ for 27”~65” (-20~70℃ for some sizes optional) |
| Storage Temperature | -20~70℃ |
| Operating Humidity | 10%~90% (Non Condensing) |
| Order Information | Full IP65/IP66 stainless steel monitor 1000nits with tempered glass/ITD**CMG1IPHBS2 |
| Full IP65/IP66 stainless steel monitor 1000nits with Resistive touch/ITD**CMT1IPHBS2 | |
| Full IP65/IP66 stainless steel monitor 1000nits with PCAP touch/ITD**CMT5IPHBS2 | |
| Full IP65/IP66 aluminum alloy monitor 1000nits with tempered glass/ITD**CMG1IPHBA2 | |
| Full IP65/IP66 aluminum alloy monitor 1000nits with Resistive touch/ITD**CMT1IPHBA2 | |
| Full IP65/IP66 aluminum alloy monitor 1000nits with PCAP touch/ITD**CMT5IPHBA2 | |
| Full IP65/IP66 steel monitor 1000nits with tempered glass/ITD**CMG1IPHBX2 | |
| Full IP65/IP66 steel monitor 1000nits with Resistive touch/ITD**CMT1IPHBX2 | |
| Full IP65/IP66 Steel Monitor 1000nits with PCAP Touch/ITD**CMT5IPHBX2 | |
| Full IP65/IP66 stainless steel monitor 1500nits with tempered glass/ITD**CMG1IPHBS1 | |
| Full IP65/IP66 stainless steel monitor 1500nits with Resistive touch/ITD**CMT1IPHBS1 | |
| Full IP65/IP66 stainless steel monitor 1500nits with PCAP touch/ITD**CMT5IPHBS1 | |
| Full IP67 stainless steel monitor 1000nits with tempered glass/ITD**CMG1IPHBS7 | |
| Full IP67 stainless steel monitor 1000nits with Resistive touch/ITD**CMT1IPHBS7 | |
| Full IP67 stainless steel monitor 1000nits with PCAP Touch/ITD**CMT5IPHBS7 |
