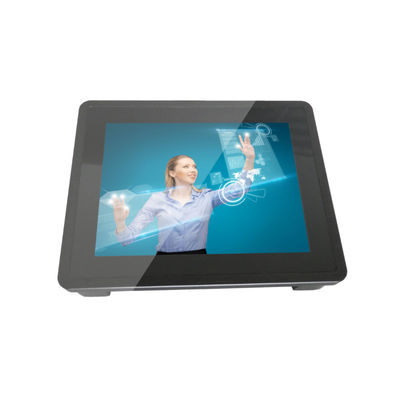

1024×768 XGA Industrial Panel Mount Monitor Display Optical Bonding 8 Inch

  • 1024×768 XGA Industrial Panel Mount Monitor Display Optical Bonding 8 Inch
  • 1024×768 XGA Industrial Panel Mount Monitor Display Optical Bonding 8 Inch
Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number ITD08OFT5P1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,master carton,wooden case,pallet
Delivery Time 15 work days
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 unit per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 8" Resolution 1024×768
Brightness 450nits Video Inputs VGA, HDMI
Optical Bonding Yes MTBF 50000h
Operating Temperature -20~70℃ Warranty 1 Year For TFT Panels And 2 Years For Others
Power 1 X DC 12V,, DC24, DC9-36V Optional Aging Test 48H
Housing Type Aluminum Frame, Steel Back Chassis
Highlight

industrial computer monitor

,

waterproof lcd monitor
Leave a Message
Product Description

8 inch 1024×768 XGA industrial lcd touch screen monitor display optical bonding -20~70℃​


ITD 8” ITD08OFT5P1 multi-touch screen monitor series is fully-integrated that combines Projected Capacitive Touch Technology with vandal proof, in an industrial/commercial -grade LCD flat panel, with a sleek‚ IP65 NEMA 4(optional), and true flat front surface industrial design. These multi-touch displays with HMI interface provide a full range of industrial-grade units with multi-function capabilities and brilliant displays.



FEATURES

•High contrast color TFT LCD display supports resolution up to 1024 x 768

•Supports DDC 1/2B for Plug & Play compatibility

•Advanced OSD control for picture quality adjustment

•All steel construction designed for harsh and industrial environments

•Easy-to-install console with open frame style

•75 x 75mm VESA mount

•CE, FCC, RoHS Compliance



OPTIONALS

•AR/AG Tempered glass

•Sunlight Readable, light sensor

•DC 24V, DC9-34V Input

•Video Signal input: AV,S-Video



SPECIFICATION

Panel Cell Type/Glass Surface TFT
Aspect Ratio/Size 8” 4:3
Active Area/Pixel Pitch 162.048(H) x 121.536(V)/0.15825mm
Native Resolution/Colors 1024 x 768 /262K/16.7M
Brightness/Contrast 450nits/700:1
Response Time 20ms
Viewing Angle(Typical) 160(H)/160(V)
Light Source LED Backlight with 50000Hours’Lifetime
Input Signals VGA/HDMI
Convenient Features Backlight adjustment, Plug & Play, OSD Multi-Languages
Power External AC-to-12VDC power adapter with universal/Auto-Sensing
Power Consumption Operation/Power Saving Below 12W
Key Control Power on/off with LED, Menu, Select, Adjustment(Right/Left)
Operating Temperature -20℃-70℃
Storage Temperature -30℃-80℃
Relatively Operating Humidity 10% - 90%(Non Condensing)
Touch Panel Projected Capacitive Touch with USB Port
10 Multi Touch Points with Vandal Proof
Plug and Play in Windows XP/7/8/10/Linux; Mac, Android with driver



Typical Application

Banking Automation

Gaming/Casino Systems

Self-Service Kiosks

Entertainment

Transport and Ticketing

In-Home Control Devices

Automation

Vehicle

Marine

Security

Customized Solutions
