DC12V Industrial LCD Monitor XGA USB Powered Capacitive Touchscreen
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | Steel Chassis | Color | Black Or Silver |
|---|---|---|---|
| Housing Type | VESA Mounting | MTBF | 50000h |
| Operating Temperature | -10~60℃ | Operating Humidity | 20%-80% (Non Condensing) |
| 24/7/365 Use | Supported | Resolution | 1024*768 |
| I/O | Single USB Port For Video Input, Touch Connection And Power Supply | ||
| Highlight | DC12V Industrial LCD Monitor,1024*768 Industrial Display Monitors,DC12V USB Powered Monitor |
||
Product Description

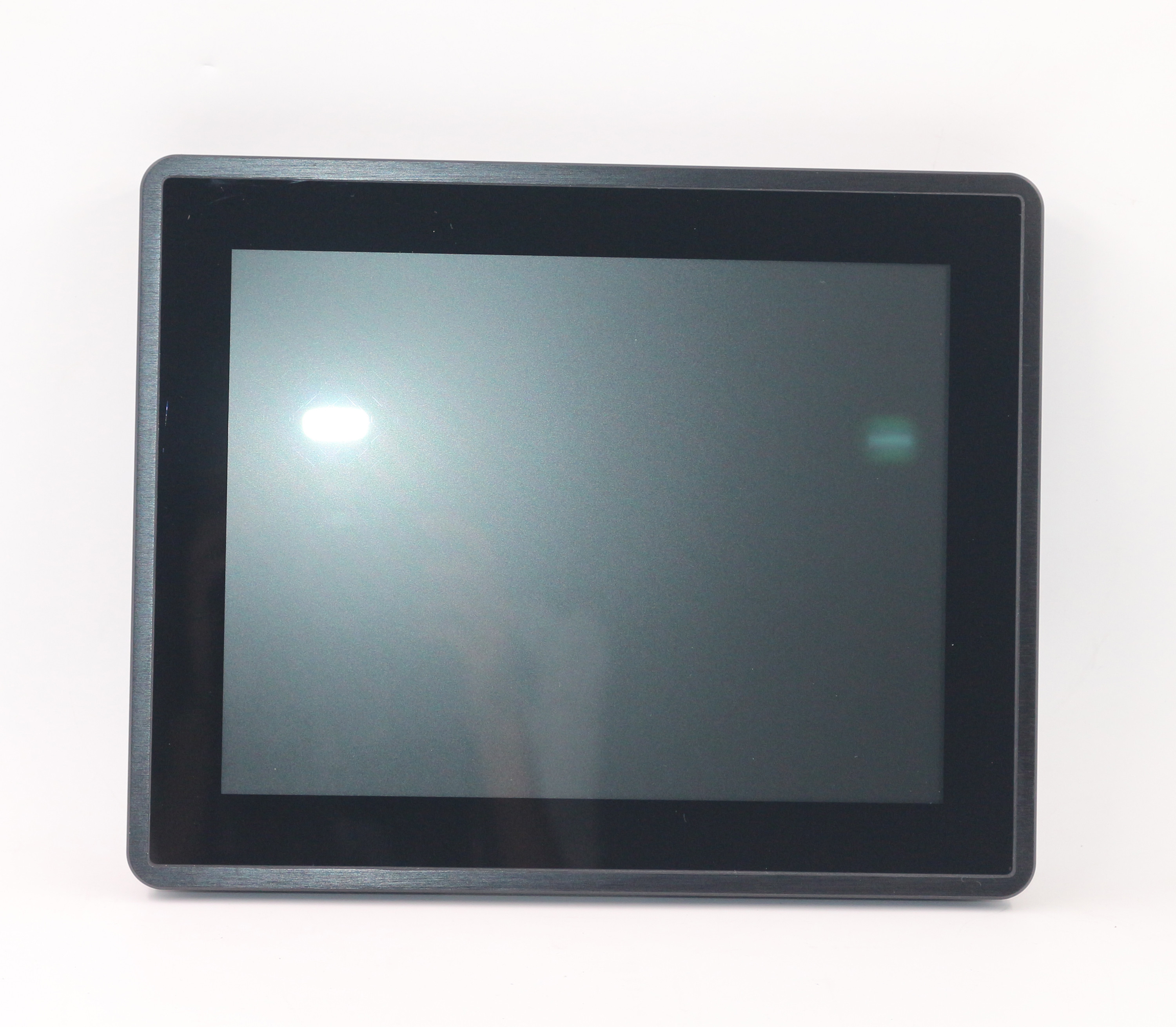

DC12V Industrial LCD Monitor XGA USB Powered Capacitive Touchscreen
8 inch XGA USB powered capacitive industrial lcd touch screen monitor
BENEFITES
- Exceptional quality and highly engineered USB powered touch monitors
- Optional touchscreens like resistive, projected capacitive touch screen
- All steel construction designed for harsh and industrial environments

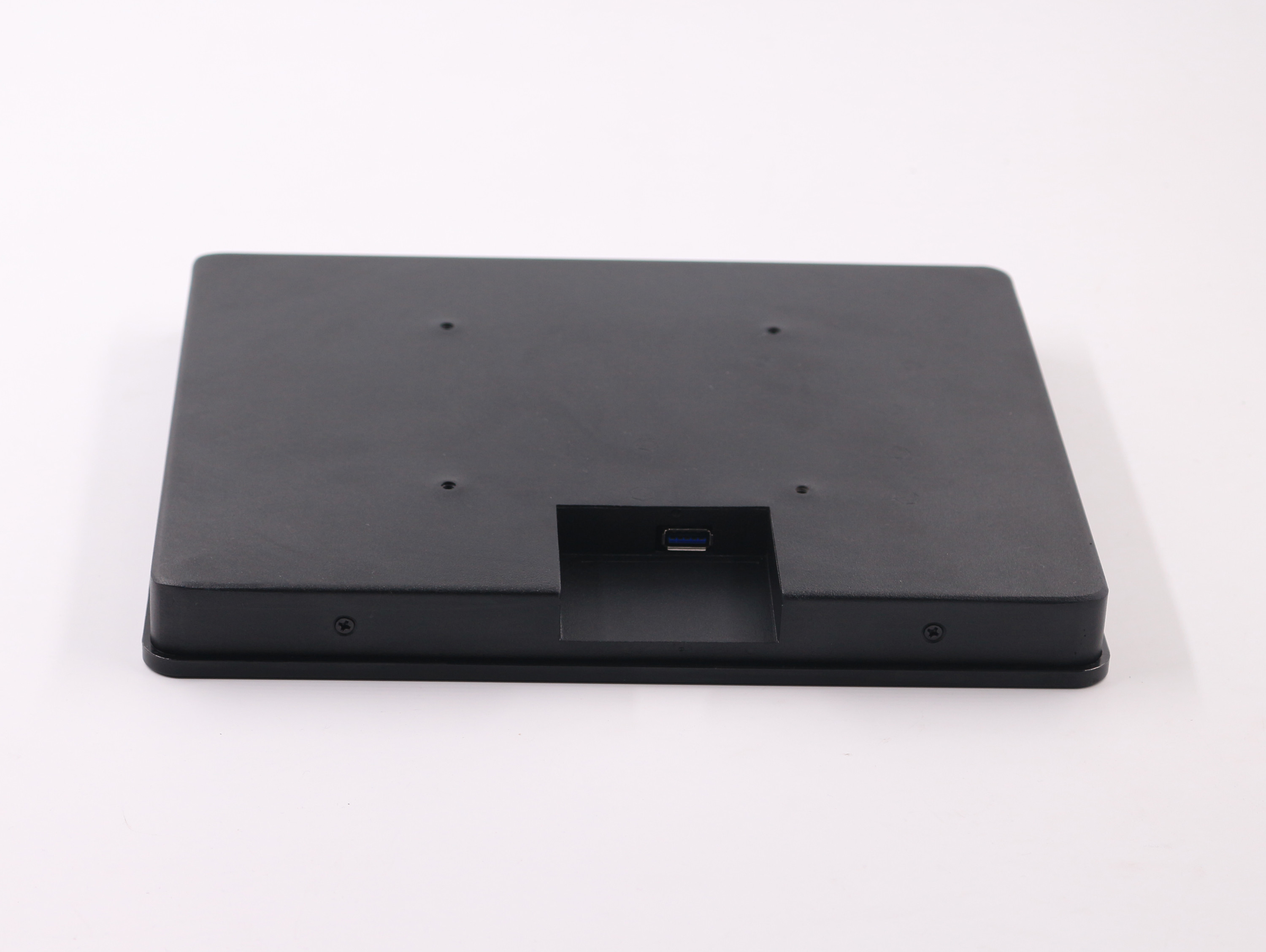

- Easy-to-install cabinet and chassis VESA-mount display
- Utilizes Displaylink for power, touch and video over single USB connection
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD chassis USB powered touch monitors come with one external USB cable only integrating power supply, video input and touch connection! One cable does it all! It is designed to help you streamline your tasks and create a more efficient and enjoyable end-user experience. Its capacitive and non-touch options have HDMI compatibility right out of the box, which is designed to be highly resilient and durable, lasting for years of consistently efficient performance to benefit industrial/commercial or business system-related needs. Its size arrange can be up to max. 15.6”.
|
USB Powered Touch Monitor
|
|
| Model Name |
ITD08CMT50U
|
| IP Rating | N/A |
|
LCD Panel
|
|
| Screen Diagonal (Inch) | 8” |
| Display Active Screen Size (mm) | 162.048(H)×121.536(V) |
| Aspect Ratio | 4:3 |
| Physical Resolution | 1024×768 |
| Maximum Resolution Supported | 1920×1080 |
| Colors | 262K/16.7M |
| Brightness (cd/m²) | 400 |
| Contrast Ratio | 700:1 |
| View Angels | 80/80/80/80 |
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours’Lifetime |
|
Touch Panel
|
|
| Touch Options | Resistive, PCAP |
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |
|
Input / Output
|
|
| Video Input | USB |
| Audio | N/A |
| Touch Connector | USB |
| Power Connector | USB |
|
Operation
|
|
| Operating Temperature Range | -10~60°C (-20~70°C Optional) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
|
Power
|
|
| Power Indicator | Green LED |
| Power Input | DC 12V |
| Power Consumption | 10W |
|
Order Information
|
|
| 8”USB Powered LCD Monitor with Resistive Touch | ITD08CMT10U |
| 8”USB Powered LCD Monitor with PCAP Touch | ITD08CMT50U |
| 8”USB Powered LCD Monitor with Tempered Glass | ITD08CMG10U |
