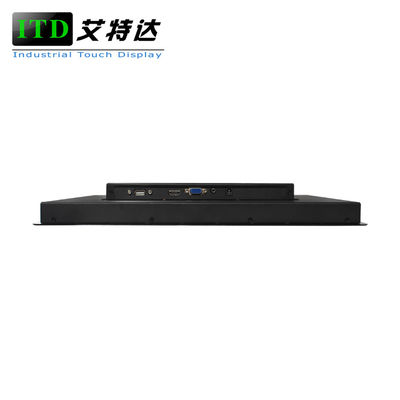

High Resolution Panel Mount Touch Screen Monitor Flat Front Input VGA USB A Type FCC CE RoHS
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE,ROHS,FCC |
| Model Number | ITD101PMT5X31 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,woonden case,pallet |
| Delivery Time | 10-15 work days |
| Payment Terms | T/T,Western Union,Paypal |
| Supply Ability | 10000 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Screen Diagonal | 10.1 Inch | Aspect Ratio | 16:10 |
|---|---|---|---|
| Physical Resolution | 1280×800 1920×1200 Optional | Brightness | 300nits, 1000nits Optional |
| Backlight/Backlight Lifetime | LED Backlight With 50000 Hours’ Lifetime | View Angels | 85/85/85/85 |
| Operating Temperature Range | -10~60°C | Video Input | VGA/DVI/HDMI |
| Touch Options | Resistive, Projected Capacitive Touch | OS Supported | Windows, Linux, Android, Mac, Raspberry Pi |
| MTBF | 50000Hours | Warranty | 1 Year For TFT Panels And 2 Years For Others |
| Waterproof | IP65 Front Panel | ||
| Highlight | panel mount lcd monitor,industrial touch monitor |
||
Product Description
high resolution touch screen monitor flat front input VGA USB A type FCC CE RoHS
ITD rugged industrial multi-touch display panel mounted monitors series is fully-integrated‚ multi capacitive touch screens that combine PCT and PCAP technology in a sleek industrial-grade IP65/ NEMA 4-4x ingress rating TFT-LCD flat panel with flat front surface design and HMI interface provide a full range of industrial-grade units with multi-function capabilities and brilliant displays. The ITD multi-touch display can be directly connected to industrial processing machines, control systems, automation systems, pharmaceutical operator interface, and other harsh computing environments.
FEATURES
•High contrast color TFT LCD display supports resolution up to 1280 x 800
•Supports DDC 1/2B for Plug & Play compatibility
•Advanced OSD control for picture quality adjustment
•Robust design with aluminum NEMA 4/ IP65 front panel
•All steel construction designed for harsh and industrial environments
•CE, FCC, RoHS Compliance
OPTIONS
•Anti-Glare / Anti-Reflective tempered glass
•Touch sensor technologies: resistive,IR,PCAP
•Sunlight readable, light sensor
•AV, DVI,HMDI inputs
SPECIFICATION
| Panel | Cell Type/Glass Surface | TFT |
| Aspect Ratio/Size | 10.1” 16:10 | |
| Active Area/Pixel Pitch | 221.0(W) x 140.50(H)/0.1695mm | |
| Native Resolution/Colors | 1280 x 800 /16.7M | |
| Brightness/Contrast | 300nits | |
| Response Time | 8ms | |
| Viewing Angle(Typical) | 80/80/80/80 | |
| Light Source | LED backlight | |
| Input Signals | VGA/DVI/HDMI | |
| Convenient Features | Backlight adjustment, Plug & Play, OSD Multi-Languages | |
| Power | External AC-to-12VDC power adapter with universal/Auto-Sensing | |
| Power Consumption | Operation/Power Saving | Below 12W |
| Key Control | Power on/off with LED, Menu, Select, Adjustment(Right/Left) | |
| Order Information | 10.1”industrial panel mount monitor with resistive touch/ITD101PMT101 | |
| 10.1”industrial panel mount monitor with IR touch/ITD101PMT201 | ||
| 10.1”industrial panel mount monitor with tempered glass/ITD101PMG101 | ||
Product Display:
