Multi Touch Display Industrial Panel Mount Monitor 1920*1080 13.3 Inch LED Backlight
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Screen Diagonal | 13.3 Inch | Aspect Ratio | 16:9 |
|---|---|---|---|
| Physical Resolution | 1920×1080 | Brightness | 300nits 1000nits Optional |
| Backlight/Backlight Lifetime | LED Backlight With 50000 Hours’ Lifetime | View Angels | 85/85/85/85 |
| Operating Temperature Range | -10~60°C | Video Input | VGA/DVI/HDMI |
| Touch Options | Projected Capacitive Touch | MTBF | 50000Hours |
| Warranty | 1 Year For TFT Panels And 2 Years For Others | Application | Automation, Marine, Kiosks, Vehicle, Tranpostation |
| Certificate | CE, FCC, RoHS | ||
| Highlight | panel mount lcd monitor,industrial touch monitor |
||
Product Description
rugged computer monitor multi-touch display 1920 x 1080 13.3inch LED backlight
ITD rugged industrial multi-touch display panel mounted monitors series is fully-integrated‚ multi capacitive touch screens that combine PCT and PCAP technology in a sleek industrial-grade IP65/ NEMA 4-4x ingress rating TFT-LCD flat panel with flat front surface design and HMI interface provide a full range of industrial-grade units with multi-function capabilities and brilliant displays. The ITD multi-touch display can be directly connected to industrial processing machines, control systems, automation systems, pharmaceutical operator interface, and other harsh computing environments.
| Model | ITD13PMT5X32 |
| IP | IP65(for front panel only) |
| IK | TBA |
| Cut-Out Dimensions | 355.2×226.8mm |
| Weight(N.W/G.W) | 2.5Kg / 2.8Kg (Approx.) |
| LCD Type | 13.3＂Active matrix TFT-LCD |
| Video Input | VGA and DVI-I, HDMI, Audio |
| Recommend Resolution | 1280×800@60Hz,75Hz |
| OSD controls | Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External Brick Input (line) Voltage: 100-240 VAC, 50-60 Hz Output Voltage/Current: 12V at 3A Max. |
| Power Consumption | 10W for 400nits; 15W for 1000nits |
| Mount Interface |
1)VESA 75×75/100×100mm 2)Panel Mounting via Clamps |
| Regular Warranty | 1 Year for TFT panels; 2 Years for others. |
| Agency Approval | FCC,CE,RoHS Certified |
2. 2 LCD Specification
| Active Area(mm) | 293.42(W) × 164.97(H) |
| Resolution | 1920×1080 |
| Pixel Pitch(mm) | 0.152855×0.15285 (H×V) |
| Nominal Input Voltage VDD | +3.3V(Typ.) |
| Viewing angle (L/R/T/B) | 85°/85°/85°/85° |
| Contrast | 800:1 |
| Luminance(cd/m2) | 350(1000nits optional) |
| Response Time(Rising/Falling) | 25ms |
| Support Color | 16.2M |
| Screen Scanning | 60Hz |
| Backlight MTBF(hr) | 50000h |
2.3 Touch Screen Specification
| Type | Projected Capacitive Touch Screen |
| Resolution | 4096×4096 |
| Light Transmission | 85%±5% |
| Touch Life Cycle | 50 millions times |
| Touch Response time | 5ms |
| Touch System Interface | USB A type |
| Operating System Support |
Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above Drivers for Windows CE/XP, Mac, Android |
2.4 External AC Power Adapter
| Output | 12V DC/3A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
2.5 Environment
| Operating Temp. | -10～60°C (-20～70°C optional) |
| Storage Temp. | -20～70°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |

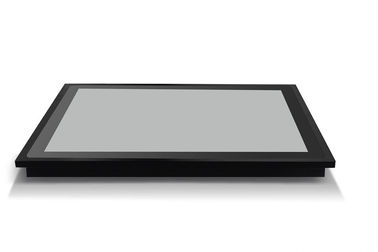

Product Display:
