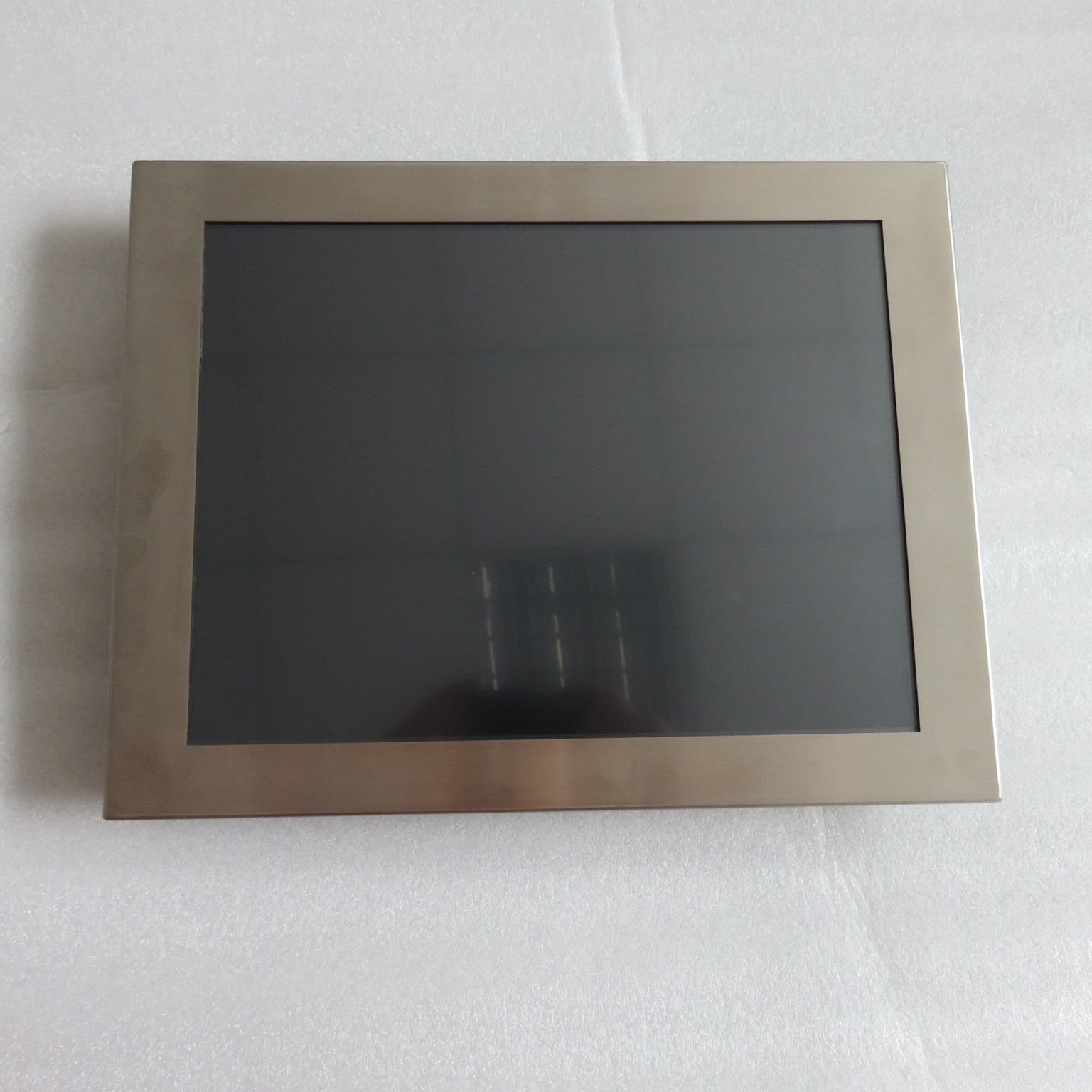

Compact Structure Rugged All In One PC SS Aluminum Alloy Enclosure PCAP Touch
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution | 1920x1080 | Brightness | 250 To 1500 Nits Optional |
|---|---|---|---|
| Viewing Angle | 89/89/89/89 | Input Signal | HDMI (Waterproof Connector) |
| Power Input | DC 12V (Waterproof Connector) DC24V, DC9-36V, AC100-240V Input Optional | Storage Temperature | -20~60℃ |
| Operating Temperature | 0~50℃ | ||
| Highlight | rugged industrial computers,rugged industrial pc |
||
Product Description
full waterproof IP65 IP66 IP67 rugged industrial panel PC with Stainless Steel aluminum alloy enclosure pcap touch
The ITD Full IP65/IP66 panel PCs series is an Intel® Celeron™ Quad Core Processor J1900 2.0 GHz based that meets all hygiene regulation standards in the food, beverage, chemical, pharmaceutical, consumer packaged goods, and biotechnology process manufacturing. This waterproof PCs series has a wide range of sizes option, with complete stainless-steel chassis and anti-corrosive. This HMI system features fan-less design and IP65/NEMA 4X sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration while meeting required EMI/RFI resistance compliance.
| Model | ITD10PPCG1IPSJ1 | ITD12PPCG1IPSJ1 | ITD15PPCG1IPSJ1 | ITD17PPCG1IPSJ1 | ITD19PPCG1IPSJ1 | ITD21PPCG1IPSJ1 |
| Size | 10.4” (4:3) | 12.1”(4:3) | 15” (4:3) | 17” (4:3) | 19” (4:3) | 21.5” (16:9) |
| Active Area | 211.2(W) x 158.4(H) | 246.0(H) x 184.5(V) | 211.2(W) x 158.4(H) | 337.92(H) x 270.33(V) | 376.32(H) x 301.06(V) | 476.64(H)x248.25(V) |
| Contrast Ratio | 500:1 | 500:1 | 700:1 | 1000:1 | 1000:1 | 1000:1 |
| Resolution | 800x600 or 1024x768 | 800x600 or 1024x768 | 1024x 768 | 1280 x 1024 | 1280 x 1024 | 1920 x 1080 |
| Brightness | 300nits | 300nits | 300nits | 250nits | 250nits | 250nits |
| Viewing Angles | 70/70/60/70 | 70/70/60/60 | 80/80/60/80 | 85/85/80/80 | 85/85/80/80 | 85/85/80/80 |
| Backlight | LED | LED | LED | LED | LED | LED |
SPECIFICATION
| System | CPU | Intel® Baytrail Celeron Quad Core J1900 2.0GHz Processor |
| BIOS | AMI | |
| Chipset | Intel® Baytrail SOC CPU Integrated | |
| Memory | 1 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB | |
| Graphic Chipset | CPU integrated graphics HD and support 1080p | |
| Storage | 1 x SATA, 1 x mSATA, Default to 64GB SSD | |
| I/O | Serial Ports | 1x COM (Optional) |
| USB Ports | 2 x USB 2.0(Waterproof Connector and Cable) | |
| Power Port | 1 x 12V DC Jack (Waterproof Connector and Cable); DC9-36V input optional | |
| LAN | 1 x 10/100/1000Mbps Ethernet (Waterproof Connector and Cable) | |
| WIFI | Built-in, 802.11a/b/g/h (optional) | |
| Touch Screen | Type | Projected Capacitive Touch Screen with 10 independent touch points |
| Response Time | ≤5ms | |
| Interface | USB or COM, default to USB | |
| Transparency | ≥85% | |
| Lifetime | ≥50,000,000 times/click | |
| OS Support | Windows CE/XP/7/8/10, Linux, Mac, Android | |
| General | Power Input | DC 12V, DC 9-36, AC100-240V input optional |
| Power Switch | Included | |
| Mounting Option |
75 x 75/100 x 100mm VESA Mount |
|
| Operation/Power Saving | TBA | |
| Operating Temperature | -10~60℃(-20~70℃ optional) | |
| Storage Temperature | -20~70℃ | |
| OS Support | Windows 7/Windows 10/ Linux | |
| Order Information | Stainless Steel Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD**PPCG1IPSJ1 | |
| Stainless Steel Full IP65/IP66 Panel PC J1900 with Resistive Touch: ITD**PPCT1IPSJ1 | ||
| Stainless Steel Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD**PPCT5IPSJ1 | ||
| Stainless Steel Full IP67 Panel PC J1900 with Tempered Glass: ITD**PPCG1IPSJ2 | ||
| Stainless Steel Full IP67 Panel PC J1900 with Resistive Touch: ITD**PPCT1IPSJ2 | ||
| Stainless Steel Full IP67 Panel PC J1900 with PCAP Touch: ITD**PPCT5IPSJ2 | ||
| Aluminum Alloy Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD**PPCG1IPAJ1 | ||
| Aluminum Alloy Full IP65/IP66 Panel PC J1900 with Resistive Touch: ITD**PPCT1IPAJ1 | ||
| Aluminum Alloy Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD**PPCT5IPAJ1 | ||
| Steel Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD**PPCG1IPXJ1 | ||
| Steel Full IP65/IP66 Panel PC J1900 with Resistive Touch: ITD**PPCT1IPXJ1 | ||
| Steel Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD**PPCT5IPXJ1 | ||
BENEFITES
- Exceptional quality and highly engineered industrial heavy duty monitors
- Optional touchscreens like resistive and PCAP
- Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65 ratings from all directions
- Solid steel and stainless steel or aluminum alloy enclosures
- IP65 sealed, Full IP65 I/O connectors protect from any particles, water, and corrosive agents
- Accuracy in high-use applications
- Long lasting product cycle for continuity thru all phases of project

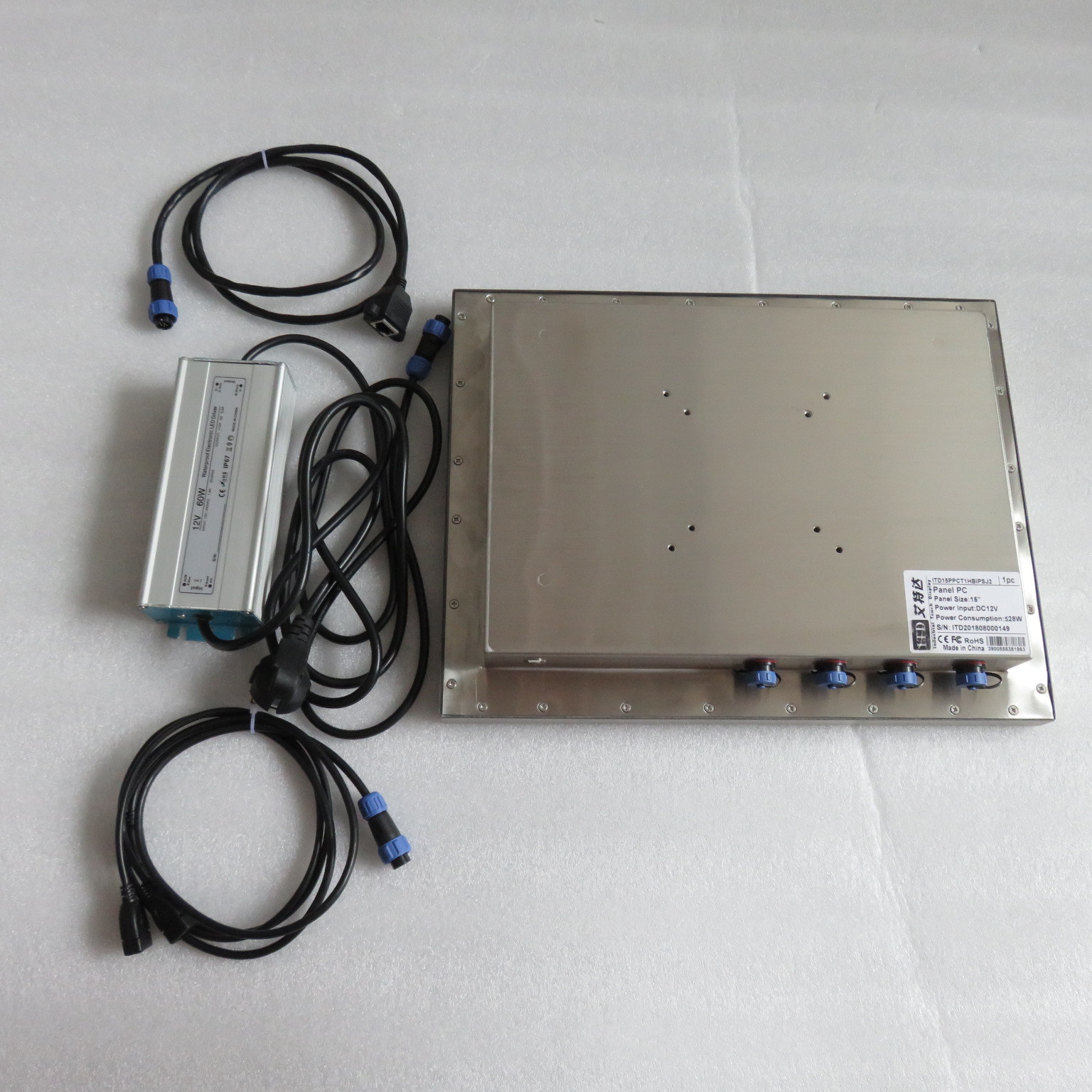

Product Display
