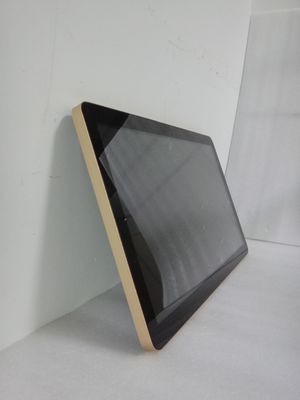

FHD Industrial Touch Screen Monitor , 21.5" Industrial TFT Lcd Panel Display

  • FHD Industrial Touch Screen Monitor , 21.5" Industrial TFT Lcd Panel Display
  • FHD Industrial Touch Screen Monitor , 21.5" Industrial TFT Lcd Panel Display
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD21OFT5K1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 3-7 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Widescreen Yes Outline Dimension Width: 527mm Height: 325mm Depth: 43mm
Packing Dimension 560(W) × 430(H)×140(D)mm Speakers 8Ω10W
LCD Type 21.5＂Active Matrix TFT-LCD Power Supply Input (line) Voltage: 100-240 VAC, 50-60 Hz
Regular Warranty 24months For Internal Electronics And 12 Months For TFT Panel Resolution 1920×1080
Touch Screen Projected Capacitive Touch Screen Touch Life Cycle 50 Millions Times
Input 100-240 VAC, 50-60 Hz Operating Temp. -10～60°C
Highlight

industrial computer monitor

,

waterproof lcd monitor
Leave a Message
Product Description

FHD touch screen monitor 21.5" HDMI input zero bezel pure flat industrial TFT lcd panel display



ITD new PCAP multi-touch screen monitor new series is fully-integrated, off-the-shelf unit that combines Projected Capacitive Touch Technology with vandal proof, in an industrial/commercial -grade LCD flat panel, with a sleek‚ IP65 NEMA 4, and true flat front surface industrial design. These multi-touch displays with HMI interface provide a full range of industrial-grade units with multi-function capabilities and brilliant displays.



  • BASIC PARAMETERS

    2. 1 General

  •

    Model    		 ITD21OFT5K1
    IP IP65(for front panel only)
    Outline Dimensions Width: 527mm Height: 325mm Depth: 43mm
    Weight(N.W/G.W) 6.3Kg / 7.6Kg (Approx.)
    Packing Dimension 560(W) × 430(H)×140(D)mm
    Speakers 8Ω10W
    LCD Type 21.5＂Active matrix TFT-LCD
    Video Input VGA and DVI-I, HDMI, Audio
    Recommend Resolution 1920×1080@60Hz,75Hz
    OSD controls Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
    Power Supply Type: External Brick
    Input (line) Voltage: 100-240 VAC, 50-60 Hz
    Output Voltage/Current: 12V at 4A Max.
    Power Consumption 26W
    Mount Interface

    1)VESA 100mm

    2)Mounting Brackets optional
    Regular Warranty 24months for internal electronics and 12 months for TFT panel
    Agency Approval FCC,CE,RoHS Certified

    2. 2 LCD Specification

    Active Area(mm) 476.64(H) x268.11(V)
    Resolution 1920×1080
    Dot Pitch(mm) 0.24825×0.24825
    Nominal Input Voltage VDD +5V(Typ)
    Viewing angle (L/R/T/B) 178/178
    Contrast 1000:1
    Luminance(cd/m2) 250
    Response Time(Rising/Falling) 5ms
    Support Color 16.7M
    Screen Scanning 60Hz
    Backlight MTBF(hr) 50000h



2.3 Touch Screen Specification

Type Projected Capacitive Touch Screen
Resolution 4096×4096
Light Transmission 85%±5%
Touch Life Cycle 50 millions times
Touch Response time 5ms
Touch System Interface USB A type
Operating System Support

Plug and Play for Windows 7/8/10, Linux Kernel 3.18.12 or above

Drivers for Windows CE/XP, Android

2.4 External AC Power Adapter

Output 12V DC/4A
Input 100-240 VAC, 50-60 Hz
MTBF 50000 hr at 25°C

2.5 Environment

Operating Temp. -10～60°C
Storage Temp. -20～70°C
Operating RH: 20%～80%
Storage RH: 10%～90%







Product Display









FHD Industrial Touch Screen Monitor , 21.5" Industrial TFT Lcd Panel Display 0









FHD Industrial Touch Screen Monitor , 21.5" Industrial TFT Lcd Panel Display 1
