21.5" 250cd/m2 4096×4096 Halo Capacitive Touch Screen 26W
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD21CMT5G1 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,wooden case,pallet |
| Delivery Time | 15-20 working days |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 5000 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 1920*1080 | Material | Steel Housing |
|---|---|---|---|
| Screen Diagonal | 21.5" | Touch Screen | PCAP Touch/IR Touch |
| View Angels | 89/89/89/89 | Backlife | LED Backlight With 50000 Hours’lifetime |
| Pane; Type | IPS | Video Inputs | VGA, DVI, HDMI Inputs |
| Power Supply | Internal PSU Or External PSU | Lifespan | 50000hours |
| LED Halo | Yes | ||
| Highlight | 4096×4096 Halo Capacitive Touch Screen,250cd/M2 Halo Capacitive Touch Screen,26W Gaming LCD Monitor |
||
Product Description

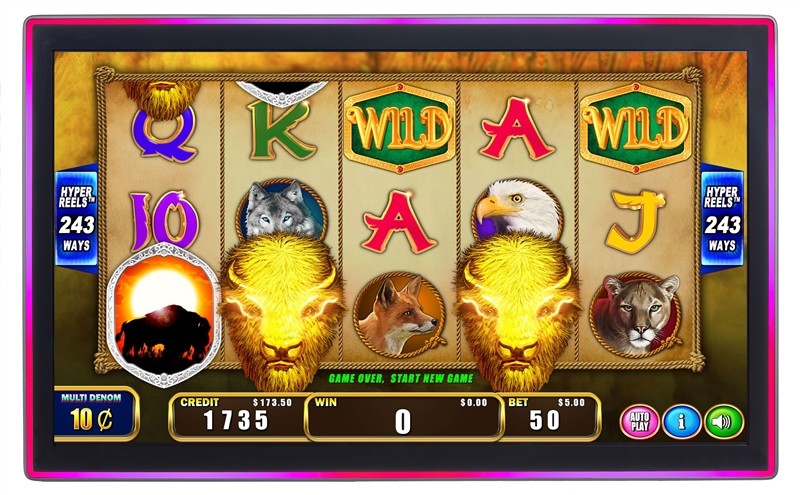

21.5 inch LED framed halo capacitive touch screen LCD monitor for gaming
LED framed halo PCAP multi-touch screen monitor is fully-integrated, off-the-shelf unit that combines Projected Capacitive Touch Technology with vandal proof, in an industrial/commercial -grade LCD flat panel, with a sleek‚ IP65 NEMA 4, and true flat front surface industrial design. These multi-touch displays with HMI interface provide a full range of industrial-grade units with multi-function capabilities and brilliant displays.
Features
•High contrast color TFT LCD display supports resolution up to 3840 x 2160
•Supports DDC 1/2B for Plug & Play compatibility
•Advanced OSD control for picture quality adjustment
•Rugged steel back chassis, true flat surface, LED strip halo framed
•10 simultaneous multi touch points PCT/PCAP touch Sensor
•Easy to clean without bezel
•CE, FCC, RoHS Compliance
2. 1 General
| Model | ITD21CMT5G1 |
| IP | IP65(for front panel only) |
| Outline Dimensions | Width: 527mm Height: 325mm Depth: 43mm |
| Weight(N.W/G.W) | 6.3Kg / 7.6Kg (Approx.) |
| Packing Dimension | 560(W) × 430(H)×140(D)mm |
| Speakers | 8Ω10W |
| LCD Type | 21.5＂Active matrix TFT-LCD |
| Video Input | VGA and DVI-I, HDMI, Audio |
| Recommend Resolution | 1920×1080@60Hz,75Hz |
| OSD controls | Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External Brick Input (line) Voltage: 100-240 VAC, 50-60 Hz Output Voltage/Current: 12V at 4A Max. |
| Power Consumption | 26W |
| Mount Interface |
1)VESA 100mm 2)Mounting Brackets optional |
| Regular Warranty | 24months for internal electronics and 12 months for TFT panel |
| Agency Approval | FCC,CE,RoHS Certified |
2. 2 LCD Specification
| Active Area(mm) | 476.64(H) x268.11(V) |
| Resolution | 1920×1080 |
| Dot Pitch(mm) | 0.24825×0.24825 |
| Nominal Input Voltage VDD | +5V(Typ) |
| Viewing angle (L/R/T/B) | 89°/89/89°/89° |
| Contrast | 1000:1 |
| Luminance(cd/m2) | 250 |
| Response Time(Rising/Falling) | 5ms |
| Support Color | 16.7M |
| Screen Scanning | 60Hz |
| Backlight MTBF(hr) | 50000h |
2.3 Touch Screen Specification
| Type | Projected Capacitive Touch Screen |
| Resolution | 4096×4096 |
| Light Transmission | 85%±5% |
| Touch Life Cycle | 50 millions times |
| Touch Response time | 5ms |
| Touch System Interface | USB A type |
| Operating System Support |
Plug and Play for Windows 7/8/10, Linux Kernel 3.18.12 or above Drivers for Windows CE/XP, Android |
2.4 External AC Power Adapter
| Output | 12V DC/4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
2.5 Environment
| Operating Temp. | -10～60°C |
| Storage Temp. | -20～70°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
