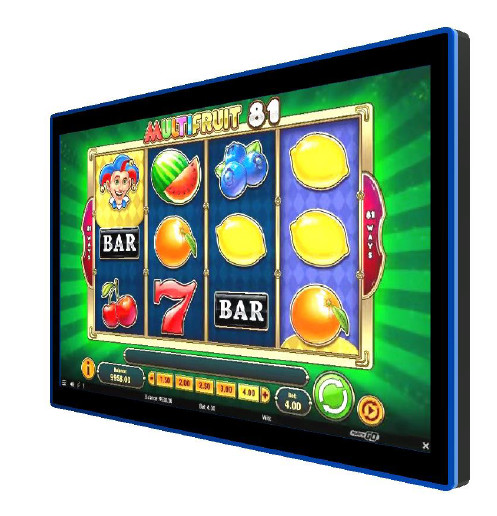

Steel IPS 40W 250nits 24" LED Lights Bar Monitor
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD24CMT5G1 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,wooden case,pallet |
| Delivery Time | 15-20 working days |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 5000 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 1920*1080 | Material | Steel Housing |
|---|---|---|---|
| Screen Diagonal | 24" | Touch Screen | PCAP Touch/IR Touch Or No Touch |
| View Angels | 89/89/89/89 | Backlife | LED Backlight With 50000 Hours’lifetime |
| Pane; Type | IPS | Video Inputs | VGA, DVI, HDMI Inputs |
| Power Supply | Internal PSU Or External PSU | Lifespan | 50000hours |
| LED Halo | Yes | Custom Design | Optional |
| Highlight | 24" LED Lights Bar Monitor,250nits LED Lights Bar Monitor,40W Industrial LCD Display Monitor |
||
Product Description
24 inch LED lights bar industrial touch screen LCD display monitor
LED framed halo PCAP multi-touch screen monitor is fully-integrated, off-the-shelf unit that combines Projected Capacitive Touch Technology with vandal proof, in an industrial/commercial -grade LCD flat panel, with a sleek‚ IP65 NEMA 4, and true flat front surface industrial design. These multi-touch displays with HMI interface provide a full range of industrial-grade units with multi-function capabilities and brilliant displays.
Features
•High contrast color TFT LCD display supports resolution up to 1920 x 1080
•Supports DDC 1/2B for Plug & Play compatibility
•Advanced OSD control for picture quality adjustment
•Rugged steel back chassis, true flat surface, LED strip halo framed
•10 simultaneous multi touch points PCT/PCAP touch Sensor
•Easy to clean without bezel
•CE, FCC, RoHS Compliance
| Name | 23.8 Inch LED Lights Bar Closed Frame Touch Monitor |
| Model | ITD24CMT5G1 |
| LCD Panel Parameters | |
| Display Technology | Active Matrix TFT-LCD with LED Backlight |
| Aspect Ratio | 16:9 |
| Active Area (W x H) | 527.04 mm×296.46 mm |
| Native Resolution | 1920×1080@60Hz |
| Response Time (Typ.) | 14ms |
| Display Colors | 16.7M |
| Luminance (Typ.) | 250nits; with PCAP 212nits |
| Contrast Ratio (Typ.) | 1000:1 |
| Viewing Angle (Typ.) | Horizontal (left/right) CR≥10 89°/89° |
| Vertical (up/down) CR≥10 89°/89° | |
| Touch Screen Parameters | |
| Touch Technology | Projected Capacitive (PCAP) |
| Surface Treatment | Tempered or Chemically Strengthened |
| Optional: Anti-Glare, Antimicrobial | |
| Active Area (W x H) | 528.00 mm×297.50mm±0.5mm |
| Thickness (Total) | 4.65±0.3mm |
| Light Transmission | ≥83% |
| Response Time | 8ms |
| Touch Screen Interface | RS232 |
| Touch Point | 1 |
| Overall Parameters | |
| Case/Bezel Color | Dark Grey & Champagne Gold |
| Mounting Options | VESA: 100×100 mm, 75×75mm,150×450mm |
| Outline Dimensions(W×H×D) | 583.20mm×314.25mm×50.30mm |
| Power Supply | External Adapter: 100-240V AC, 50-60 Hz Input Voltage Range: +12V DC ± 5% |
| On Screen Display (OSD) | Control (back): Power, Auto, Up, Down, Menu |
| Power Consumption | MAX: 40W |
| Operating Altitude | ≦3000m |
| Temperature Range | Operating: 0℃ to 40℃, storage: -20℃ to 60℃ |
| Humidity (Non Condensing) | Operating: 20% to 80%, storage: 10% to 90% |
| I/O | VGA, DVI, HDMI, USB |
| Accessories | Cables: VGA×1, USB×1, Power Cord, 1.5m Length Adaptor: 12V/3.33A, DC Cable: 1500mm, DC Jet ∅2.5mm |
| Carton Box Dimensions (2 units in 1 carton) |
785mm (L) × 285mm (W) × 530mm (H) |
| Weight | Gross: 20Kg Net: 8Kg |
| MTBF | 50,000 Hours Demonstrated |
| LED Lights Color | Multicolor |
| LED Lights Location | Front: 4 LED Lights Bar Back: Optional |
| Agency Approvals | CE , FCC, RoHS |
| Warranty | 3 Years |
