60W 32in PCAP Framed Touch Screen Monitor For Slot Machine
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD32CMT5G1 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,wooden case,pallet |
| Delivery Time | 15-20 working days |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 5000 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 1920*1080 | Material | Steel Housing |
|---|---|---|---|
| Screen Diagonal | 32" | Touch Screen | PCAP Touch/IR Touch Or No Touch |
| View Angels | 89/89/89/89 | Backlife | LED Backlight With 50000 Hours’lifetime |
| Pane; Type | IPS | Video Inputs | VGA, DVI, HDMI Inputs |
| Power Supply | Internal PSU Or External PSU | Lifespan | 50000hours |
| LED Halo | Yes | Custom Design | Optional |
| Highlight | 32in Framed Touch Screen Monitor,PCAP Framed Touch Screen Monitor,60W Slot Machine Touch Monitor |
||
Product Description

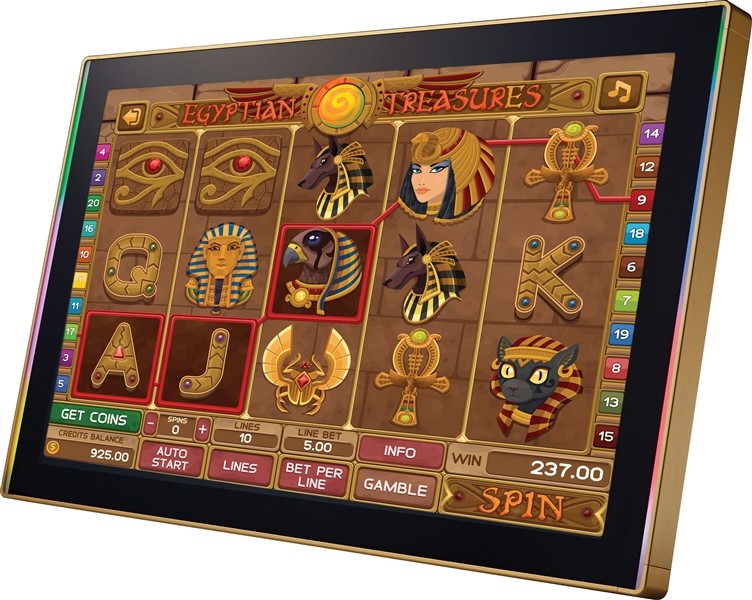

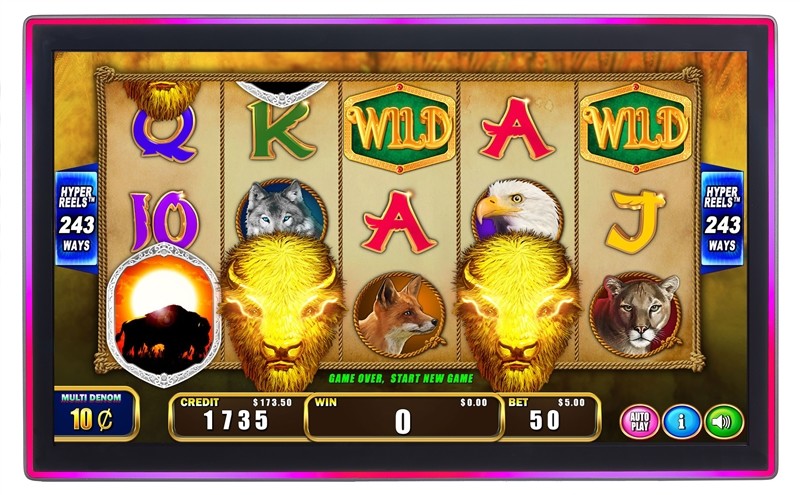

32 inch PCAP LED framed touch screen monitor for Slot Machine Roulette Sports Betting
ITD32CMT5G1 is a LED lights bar Touchmonitor. PCAP LED lights bar touch monitor solution is ideal not only for gaming/slot/casino applications but also for those small and large interactive digital signage displays where fast, accurate and sensitive touch solution is required. The LED lights can be controlled by the OEM operating system or an external LED driver to achieve desired color combinations. These monitors are available if you want to attract customers to the latest, largest and most exciting gaming experience possible.
Features
•High contrast color TFT LCD display supports resolution up to 1920 x 1080
•Supports DDC 1/2B for Plug & Play compatibility
•Advanced OSD control for picture quality adjustment
•Rugged steel back chassis, true flat surface, LED strip halo framed
•10 simultaneous multi touch points PCT/PCAP touch Sensor
•Easy to clean without bezel
•CE, FCC, RoHS Compliance
| Display Technology | Active Matrix TFT-LCD with LED Backlight |
| Aspect Ratio | 16:9 |
| Active Area (W x H) | 694.40 mm×388.80 mm |
| Native Resolution | 3840×2160@60Hz |
| Response Time (Typ.) | 4ms |
| Display Colors | 16.7M |
| Luminance (Typ.) | 500nits; with PCAP 212nits |
| Contrast Ratio (Typ.) | 1200:1 |
| Viewing Angle (Typ.) | Horizontal (left/right) CR≥10 89°/89° |
| Vertical (up/down) CR≥10 89°/89° | |
| Touch Screen Parameters | |
| Touch Technology | Projected Capacitive (PCAP) |
| Surface Treatment | Tempered or Chemically Strengthened |
| Optional: Anti-Glare, Antimicrobial | |
| Active Area (W x H) | 694.40 mm×388.80±0.5mm |
| Thickness (Total) | 4.65±0.3mm |
| Light Transmission | ≥83% |
| Response Time | 8ms |
| Touch Screen Interface | USB |
| Touch Point | 10 |
| Overall Parameters | |
| Case/Bezel Color | Black |
| True Flat Surface | Optional |
| Mounting Options | VESA: 600×300 mm |
| Outline Dimensions(W×H×D) | 834.90mm × 615.00mm × 103.50mm |
| Power Supply | Input Voltage Range: AC 100-240V input |
| On Screen Display (OSD) | Control (back): Power, Auto, Up, Down, Menu |
| Power Consumption | MAX: 60W |
| Operating Altitude | ≦3000m |
| Temperature Range | Operating: 0℃ to 50℃, storage: -20℃ to 60℃ |
| Humidity (Non Condensing) | Operating: 20% to 80%, storage: 10% to 90% |
| I/O | HDMI, DVI, DP, USB (Type B) |
| Accessories | Cables: HDMI×1, USB×1 |
| Carton Box Dimensions (1 units in one carton) |
TBA |
| Weight | Gross: 18Kg Net: 15Kg |
| MTBF | 50,000 hours demonstrated |
| Agency Approvals | CE , FCC, RoHS |
