Sunlight Readable 1000nits 21.5" Pcap Touch Panel PC ITD
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD21PPCT5HBX** |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel J1900 I3/i5/i7 Processor | Storage Temperature | -20~70℃ |
|---|---|---|---|
| Resolution | 1920 X 1080 | Aspect Ratio | 16:9 |
| Brightness | 1000nits | Viewing Angles | 89/89/89/89 |
| Power Input | DC12V 2.0 | Active Area | 476.64(H) X268.11(V)mm/0.24825× 0.24825mm |
| Highlight | Pcap Touch Panel PC,1000nits Pcap Touch Panel PC,ITD Sunlight Readable Panel PC |
||
Product Description
21.5" high bright sunlight readable pure flat panel mount pcap touch panel PC Windows Android
The ITD industrial multi-touch screen panel mounted panel PC is fully-integrated‚ multi capacitive touch screen that combines high-performance ARM based or x86 based PC system with Projected Capacitive Touch (PCT or PCAP) Technology in a sleek industrial-grade IP65/ NEMA 4/4x Ingress rating high bright TFT-LCD flat panel with flat front surface design. The ITD Windows-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Windows 7/8 and other popular programming languages. The ITD multi-touch panel mounted panel PC is designed for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.
SPECIFICATION
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 21.5”/16:9 | |
| Active Area/ Pixel Pitch | 476.64(H) x268.11(V)mm/0.24825× 0.24825mm | |
| Native Resolution/ Colors | 1920 x 1080/16.7M | |
| Brightness/ Contrast | 1000cd/㎡(1500cd/㎡optional)/1000:1 | |
| Response Time/ Viewing Angle(Typical) | 5ms/89/89/89/89 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | Android Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) | Intel® Celeron J1900 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | RK3288 | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory |
2GB; 4GB Optional
|
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB |
2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB |
| Storage |
8GB: 16GB/32GB/64GB Optional
|
1 x SATA, 1 x mSATA, Default to 64GB SSD | 1 x SATA, 1 x mSATA, Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD Graphics (By CPU) | Intel HD Graphics (By CPU) |
| I/O | 1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 2 × COM; 1 × TF Card Slot Support 8~128GB |
1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; COM port(optional); 1 x Realtek ALC662 Line-Out /MIC IN |
1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 2 x COM max. 6; 1 x Realtek ALC662 Line-Out /MIC IN |
| LAN | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet |
| OS | Android 6.0 (Android 7.0 optional) | Windows 7/8/10, Linux | Windows 7/8/10, Linux |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 40~65W | |
| Environment Considerations | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90% | |
| Order Information | 21.5” Flat Bezel Panel PC 1000nits with PCAP Touch RK32880/ITD21PPCT5HBXE2 | |
| 21.5” Flat Bezel Panel PC 1000nits with Resistive Touch RK3288/ITD21PPCT1HBXE2 | ||
| 21.5” Flat Bezel Panel PC 1000nits with Tempered Glass RK3288/ITD21PPCG1HBXE2 | ||
| 21.5” Flat Bezel Panel PC 1000nits with PCAP Touch J1900/ITD21PPCT5HBXJ2 | ||
| 21.5” Flat Bezel Panel PC 1000nits with Resistive Touch J1900/ITD21PPCT1HBXJ2 | ||
| 21.5” Flat Bezel Panel PC 1000nits with Tempered Glass J1900/ITD21PPCG1HBXJ2 | ||
| 21.5” Flat Bezel Panel PC 1000nits with PCAP Touch i3/ITD21PPCT5HBXI3 | ||
| 21.5” Flat Bezel Panel PC 1000nits with Resistive Touch i3/ITD21PPCT1HBXI3 | ||
| 21.5” Flat Bezel Panel PC 1000nits with Tempered Glass i3/ITD21PPCG1HBXI3 | ||
| 21.5” Flat Bezel Panel PC 1000nits with PCAP Touch i5/ITD21PPCT5HBXI5 | ||
| 21.5” Flat Bezel Panel PC 1000nits with Resistive Touch i5/ITD21PPCT1HBXI5 | ||
| 21.5” Flat Bezel Panel PC 1000nits with Tempered Glass i5/ITD21PPCG1HBXI5 | ||

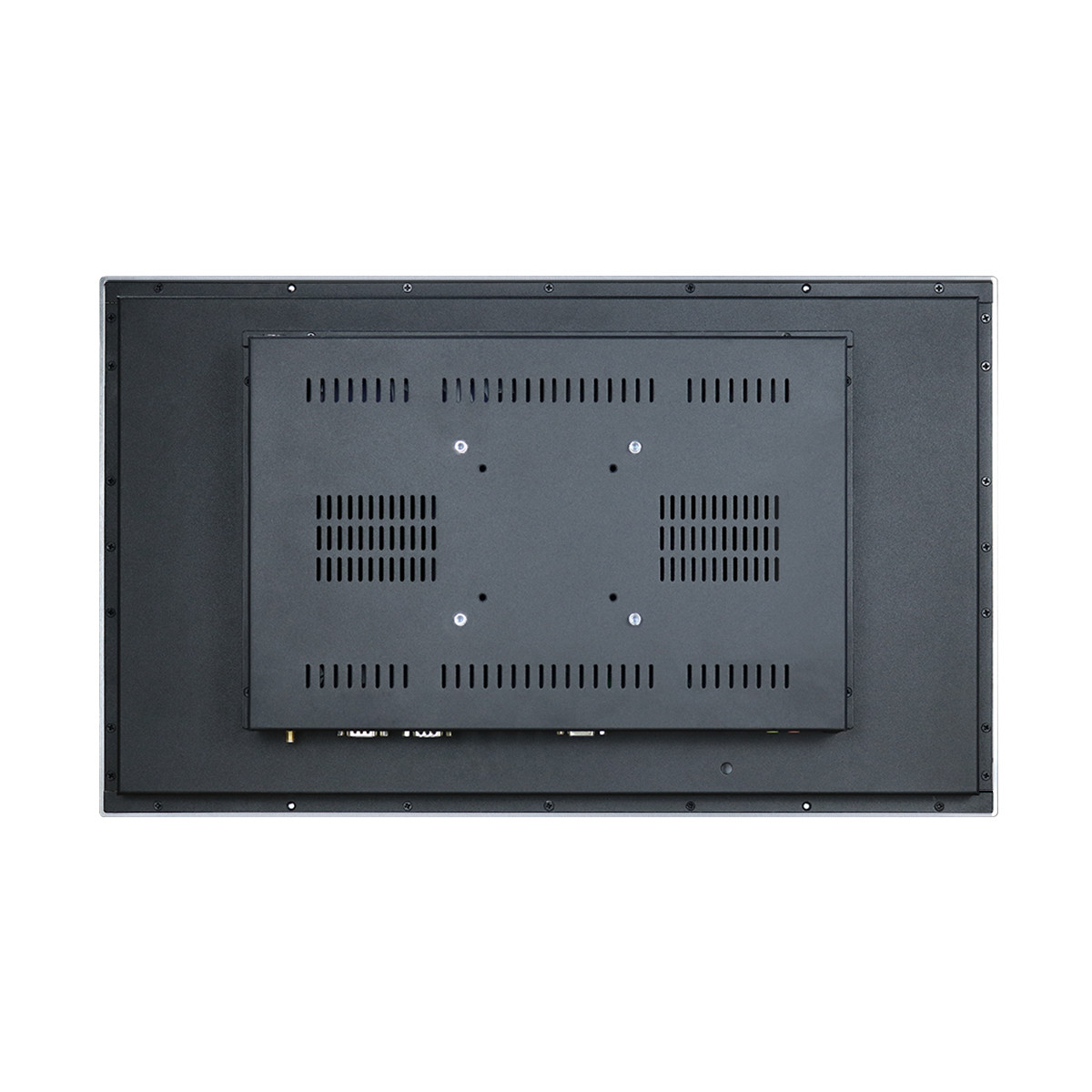

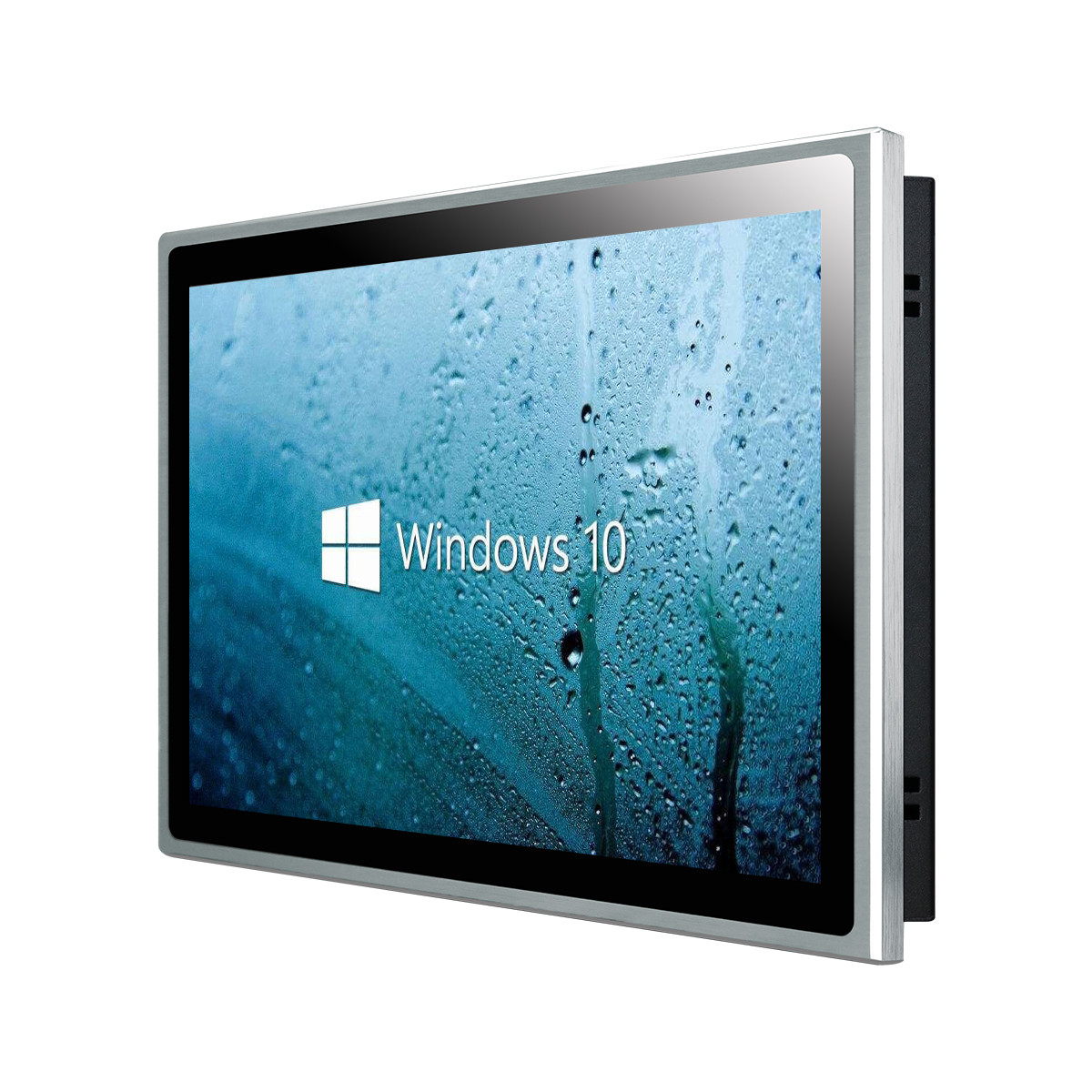

Product Image
