LVDS 21.5 Inch Self Service Payment Kiosk 350nits bulit-in camera face recognition NFC RFID card reader

  • LVDS 21.5 Inch Self Service Payment Kiosk 350nits bulit-in camera face recognition NFC RFID card reader
  • LVDS 21.5 Inch Self Service Payment Kiosk 350nits bulit-in camera face recognition NFC RFID card reader
  • LVDS 21.5 Inch Self Service Payment Kiosk 350nits bulit-in camera face recognition NFC RFID card reader
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD21PPCT5KO--
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 7-10 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Video Decoding - PC 1080P Full HD MPEG、H.264 Etc Structure Aluminum Alloy Frame , Sheet Metal Back Shell
Touch Data Output Coordinate Output Operation Voltage 180Ma/DC+5V±5%
Surface Hardness Mohs 7 Chemical Tempered Explosion-proof Glass OS Supported Win 7/ Win 8/Win 10/CE/Mac/Android/Linux /XP
Altitude Under 5000 Meters Power Output DC12V 5A
Highlight

LVDS Self Service Payment Kiosk

,

21.5 Inch Self Service Payment Kiosk

,

350nits Self Service Ordering Kiosk
Leave a Message
Product Description

Fast Food Restaurant 21.5 Inch All In One Touch Self Service Payment Ordering Kiosk



1.1 Introduction

ITD self-ordering Kiosk is equipped with P-cap touch screen. You can freely add Peripherals you need, thanks to the modular design. Advanced industrial design also makes it one of the thinnest and robust kiosk on the market.
ITD self-ordering Kiosk has been widely applied in many occasions, including shopping malls, supermarkets, restaurants, car showrooms, brand monopoly, hotel halls, expositions, industrial parks, banks, government units, etc., Years of vigorous investment in research and development have made our products more competitive than their peers, both in technology and in practical applications.


1.2 Features
◆ 10-point capacitive touch, 1920*1080 resolution, 178 ° viewing angle
◆ Android / Windows optional
◆ Professional terminal scanning, fast identification, fast identification of various product barcodes, payment codes
◆ Zero error: millimeter-level 3D face recognition, the face recognition rate can reach 99.9%, zero errors in 10,000 detections;
◆ Versatility: Adopting front paper bin design, for unlocking and changing paper more efficiently; Match with 58mm Seiko printer core, to achieve automatic cutter and high-speed printing, without paper jam;
◆ Stability: Each device has undergone multiple tests including aging, temperature and humidity testing, static detection, vibration, high voltage, touch and click, display, etc. to ensure stable quality and support 7 * 24 hours of work
◆ 3Proofings:Aluminum alloy structure, wear-resistant and anti-corrosion, overall anti-riot, IP65 waterproof surface;
◆ Safety: Using special industrial-grade leakage protection switching power supply, which is more reliable in public places;
◆ Diversity: provide a variety of customized services (Appearance color, logo, peripherals adding, etc.);
◆ Supports floor-stand and wall-mounted dual-scenario applications, breaking space constraints.
◆ Integrated design, simple assembly, just plug in when power on, no need to install and debug on site



Specifications:





2.1 LCD Panel



Screen Type A-Si TFT-LCD , WLED Back-light , Type A
Size 32inch (16:9)
Display size 698.7(W)*393.3(H)mm
Resolution 1920*1080P
Brightness ≥350cd/m2 (500nits optional) Contrast Ratio ≥1400:1
Response time 14(Typ.)(Tr/Td) ms Refreshing Rate 60Hz
Number of Colors 16.7M , 52% (CIE1931) LVDS 51 Pins
View Angle 89/89/89/89 (Typ.)(CR≥10)
Life Time 50000 Hrs;






2.2 Touch Panel



Touch Type Projected Capacity touch screen
Touch Points 10 points touch
Response Time < 5ms Recognition Area > 1.5mm
Scanning Rate 200Hz Touch data output Coordinate output
Communication USB 2.0,3.0 Accuracy 4096×4096
Firmware Update via USB Lifetime >50 Million click
Operation Voltage 180Ma/DC+5V±5% Driver Free Drive
Surface Hardness Mohs 7 Chemical tempered explosion-proof glass
OS supported Win 7/ Win 8/Win 10/CE/Mac/Android/Linux /XP



2.4 Electrical Performance

Power Input 110-240V AC 50/60Hz
Power Output DC 12V5A
Standby power consumption ≤0.5W
Overall power consumption Android＜48W, X86<60W
Speakers Power 4Ω3W





2.5 Operation Environment

Operation Temperature 0℃-50℃
Operation Humidity 0% - 90%
Storage Temperature -10℃-60℃
Storage Humidity 0% - 65%
Altitude Under 5000 meters





2.6 Configurations



Android

Standard

 Android Flagship

X86

Elite Version

X86

Flagship Version

 Custom
Processor

Quad Core

RK3288

Six Core

RK3399

Intel Celeron Quad core

J1900

Industrial Motherboard

Intel i3,i5,i7

 Available
RAM

Default:2G

Optional:4G

Default:2G

Optional:4G

 RAM DDR3:2G/4G/8G
ROM

Default 8G

(16/32G Optional)

Scalable

Default 8G

(16/32G Optional)

Scalable

 SSD:32G/64G/128G
Graphic card Android Graphic Core Graphic
Resolution 720P/1080P
System Android 7.1.2 Win7/Win8/Win10/Android/Linux
NIC Integrated 10/100 / 1000M adaptive network card, network card wireless 802.11a / b / g / n
Power Input 12V4A AC 50/60Hz



2.7 Thermal Printer(Optional)

  Standard Pro Flagship
Model HS-QR24 LG-ET-210 HS-EC58
Parameter

I/O type: USB

Printing Speed: 50-80mm / s

Effective printing width: 48mm

Voltage: DC12V

Paper size: 58mm, the maximum diameter of the paper core :30mm

Manual tearing, Paper roll capacity:Small

Printer size:Small

I/O type: USB

Printing method: direct line thermal

Printing Speed:90MM/S

Print density:384 Dot/Line

Effective printing width: 48mm

Print command: compatible with ESC / POS commands

Reliability: 50 km

Paper size: 58mm, the maximum diameter of the paper core :60mm

Input voltage: DC 12V/3A

Manual tearing, Paper roll capacity:Big

Printer size: Big

I/O type: USB

Printing method: line thermal

Printing Speed:50MM/S

Print density:384 Dot/Line

Effective printing width: 48mm

Resolution:203DPI

Input voltage:DC 12V Paper size: 58mm, the maximum diameter of the paper core :60mm

Automatic paper cutting, Paper roll capacity:Big

Printer size: Big




  1. Barcode Scanner(Optional)
  Standard Flagship
Model XN-1065 ZD7100
Parameter

I/O type: USB

Resolution:1.3mp COMS

Recognition accuracy:3 MIL

light source:LED(630NM±10NM)

field of view: horizon≥45°vertical≥34°

Reading distance:25MM-240MM(15mil QR)

Spin:360°deflection:±65°tilt:±65°

High recognition accuracy

long distance

fast recognition speed

I/O type: USB

light source: 6500K LED

Sensor image:752 X 480

Rotary tilt deflection:360°,±65°,±60°

Recognition accuracy:5mil Ccde39

Barcode supported:PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, AztecHanxin, etc

High recognition accuracy

full coding system

large angle

Fast recognition speed




2.9 Camera (Optional)



  Standard Dual Camera Camera for Payment
Model SXT-C270   A200+mini
Parameter

Aperture:2.37

I/O:USB2.0

Focal length:0.85mm

Field of view:70 °

TV distortion:<1%

Photosensitive area size: 1 / 5-inch

Microphone:optional

5mp Camera

Resolution:1600 * 1200

Target distance:15CM-150CM

Pixel size:1.4μm × 1.4μm

Image size:1616 (H) × 1232 (V)

[Pixel] Maximum image 15FPS UXGA 36MHZ / 30FPS 720pMHZ

Size 60mm × 9mm × 5.6mm

Hardware pixel:200W

DSP Solution

Image sensor 1080P 1 / 2.7

Motion picture resolution and transmission rate 1080P / 30fps 720P / 30fps VGA / 30fps QVGA / 30fps

Captured image resolution

1920 * 1080 OR Other

Commissioning focal length 60cm

Lens optical structure 4P

Field of view (D) 65 °

Aperture distortion F2.4 <= 1%

Relative degree 65%

Brightness Auto

Contrast Auto

Hue automatic

Saturation Automatic

Sharpness automatic

Gamma Automatic

Bai Pingheng Automatic

Backlight contrast

Exposure control

Color Space / Compression YUY2 / MJPG

System is compatible with Win 2000, Win X P, Win 7 or Linux 2.6.0.20 or later

Output data, depth data type

Raw Data 16bit

color data format: MJPEG / RGB depth image: resolution / frame rate: 640 × 400 @ 25fps, 640 × 400 @ 15fps, 320 × 200 @ 25fps, 320 × 200 @ 15fp; FOV: 640 × 400 @ 25fps: H66 ° × V44 °, 640 × 400 @ 15fps: H66 ° × V44 °, 320 × 200 @ 25fps: H66 ° × V44 °, 320 × 200 @ 15fps: H66 ° × V44 °;

Infrared image: resolution / frame rate; 640 × 400 @ 25fps; FOV: H66 ° × V44 °, color image: resolution / frame rate, 1920 × 1080 @ 25fps, 1280 × 720 @ 25fps, 640 × 480 @ 25fps, 320 × 240 @ 25fps, FOV: 1920 × 1080 @ 25fps: H84.5 ° × V53.8 °,

1280 × 720 @ 25fps: H84.5 ° × V53.8 °, 640 × 480 @ 25fps: H66 ° × V50 °, 320 × 240 @ 25fps: H66 ° × V50 °, features HDR, low light, high definition

Supported Development platform Windows / Linux / Android





  1. Card Reader (Optional)


TTL port

version

RS232 port

version

 USB version
Model M2-TTL M2-232 M5-USB
Parameter

Interface type: TTL serial port

Working frequency band: 13.56M high frequency module

Support agreement: ISO14443A

Support cards: IC card: Mifare (1k / 4k), S70, Fudan Micro F08, Ultraraligh

Product function: read-only IC card function based on Android TTL interface

Interface type: RS232 serial port

Working frequency band: 13.56M high frequency module

Support agreement: ISO14443A

Support cards: IC card: Mifare (1k / 4k), Fudan Micro F08, Ultraraligh

Product features: read-only IC card function,based on computer or Android 232 serial port

Interface type: USB port

Working frequency: 13.56M module

Support agreement: ISO14443TYPEA

Support card: IC card MIFAER series

Product features: read-only IC card function,based on computer or Android USB interface







































Picture:

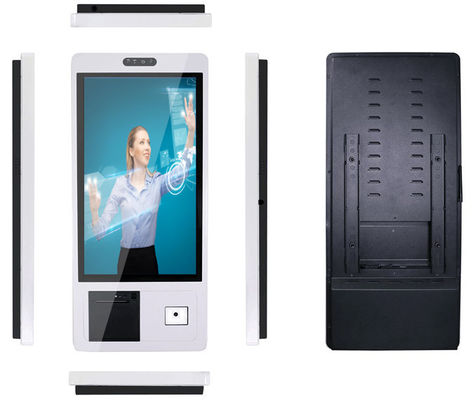

LVDS 21.5 Inch Self Service Payment Kiosk 350nits bulit-in camera face recognition NFC RFID card reader 0

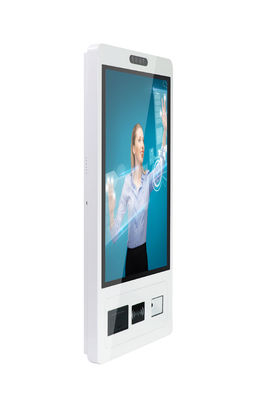

LVDS 21.5 Inch Self Service Payment Kiosk 350nits bulit-in camera face recognition NFC RFID card reader 1



LVDS 21.5 Inch Self Service Payment Kiosk 350nits bulit-in camera face recognition NFC RFID card reader 2
