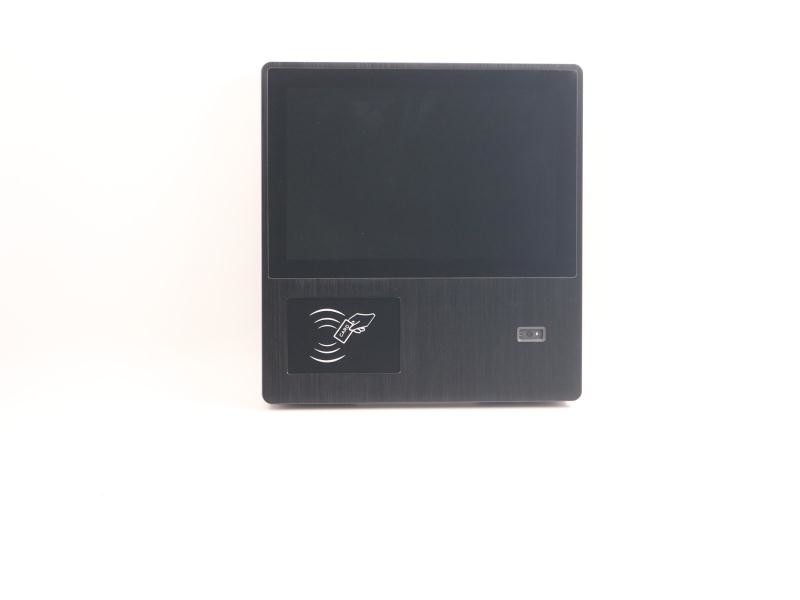

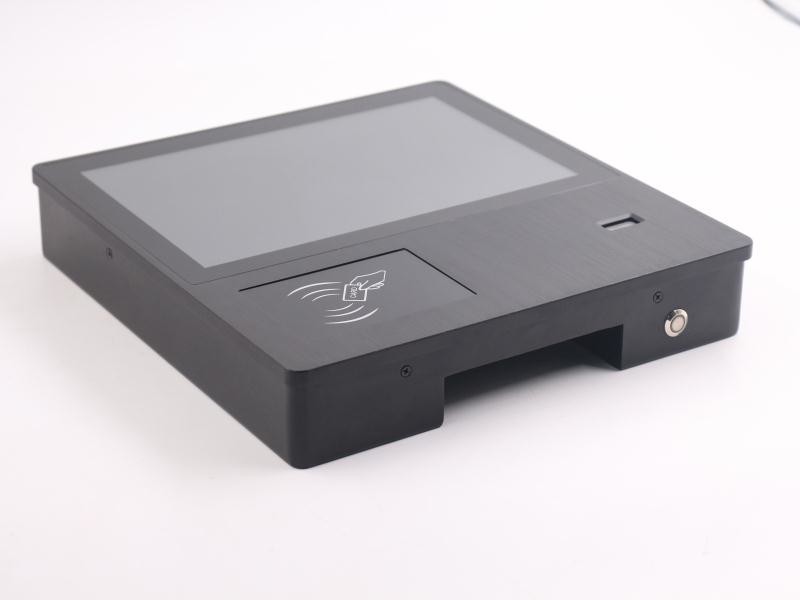

350nits X86 RFID NFC QR Reader Embedded Panel PC VESA 1024x768
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD101PPCT5XJ1-RFID-QR |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution | 1024 X768 | Brightness | 350 |
|---|---|---|---|
| Processor | ARM, Ntel J1900, Intel I3/i5/i7 | Touch Panel | Capacitive |
| Mounting Method | VESA | OS | Windows, Linux |
| Operating Temperature | -10~60℃ | Storage Temperature | -20~70℃ |
| Material | Aluminum Frame, Steel Chassis | Warranty | 2 Years |
| Highlight | NFC QR Reader Embedded Panel PC,350nits Embedded Panel PC,VESA Pc Industrial Touch Screen |
||
Product Description
pc industrial touch screen x86 embedded panel PC with RFID NFC QR reader
The ITD industrial multi-touch screen panel mounted panel PC is fully-integrated‚ multi capacitive touch screen that combines high-performance Intel® Celeron™ Quad Core Processor J3160 1.6GHz with Projected Capacitive Touch (PCT or PCAP) Technology in a sleek industrial-grade IP65/ NEMA 4/4x Ingress rating TFT-LCD flat panel with flat front surface design. The ITD Windows-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Windows 7/8/10 and other popular programming languages. The ITD multi-touch panel mounted panel PC is designed for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.
FEATURES
▪ Easy-to-clean, true flat front surface without bezel
▪ Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA
▪ Web camera, RFID and thermal printer integrated
▪ Ten independent touch points (with Windows 7/8/10, Android, Linux operating systems)
▪ Eliminates dust and debris build-up at the edge and corners of the display
▪ Provides improved power efficiency and reduced consumption
▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel
▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments
▪ CE, FCC, RoHS Compliance
PARAMETERS
| Panel | Cell Type/Glass Surface | TFT |
| Size | 10.1” | |
| Aspect Ratio | 16:10 | |
| Active Area | 216.96(H) x 135.6(V)mm | |
| Pixel Pitch | 0.1695× 0.1695mm | |
| Native Resolution | 1280 x 800 | |
| Colors | 16.7M | |
| Brightness | 350cd/㎡ | |
| Contrast | 800:1 | |
| Response Time | 16ms | |
| Viewing Angle(Typical) | 85/85/85/85 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SPECIFICATION
| System | CPU | Intel® Celeron J3160 1.6GHz Processor |
| BIOS | AMI | |
| Chipset | Intel Braswell SoC | |
| Memory | 1xSO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB | |
| Graphic Chipset | Intel HD Graphics (By CPU) | |
| Storage | 1 x SATA, 1 x mSATA, Default to 32GB SSD | |
| LAN | 1 x 10/100/1000Mbps Ethernet | |
| Input / Output | Serial Ports | Optional |
| USB Ports | 1 x USB | |
| VGA Port | Optional | |
| HDMI Port | Optional | |
| Audio Card | Optional | |
| Power | Power Input | PoE |
| Operation/Power Saving | 20W | |
| Environment Considerations | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90% | |
| Order Information | 10.1” Panel PC with PCAP Touch+RFID&QR Reader /ITD101PPCT5XJ1-RFID-QR | |
| 10.1” Panel PC with Resistive Touch+RFID&QR Reader /ITD101PPCT1XJ1-RFID-QR | ||
| 10.1” Panel PC with Tempered Glass+RFID&QR Reader /ITD101PPCG1XJ1-RFID-QR | ||
