Linux Ubuntu 250nits Open Frame Touch Screen VESA For Kiosk
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD15PPCTxFxx |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution | 1024x768 | Brightness | 250nits, 500 ,1000nits Optional |
|---|---|---|---|
| Processor | RK3288, RK3399, Intel J1900, Intel I3/i5/i7 | Touch Panel | Capacitive/resistive/SAW/IR |
| Mounting Method | Rear Mount,VESA | I/O | USB, COM, HDMI, Audio, LAN, GPIO |
| Operating Temperature | -20~60℃ | Storage Temperature | -20~70℃ |
| Material | Steel Housing, HeatSink | Warranty | 2 Years |
| MTBF | 50000hours | ||
| Highlight | Linux Ubuntu Open Frame Touch Screen,250nits Open Frame Touch Screen,VESA Fanless Industrial Panel Pc |
||
Product Description

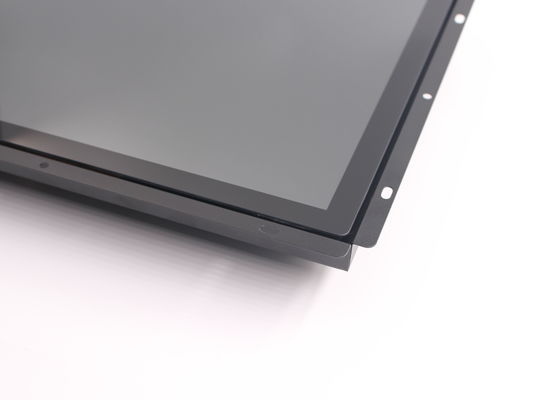

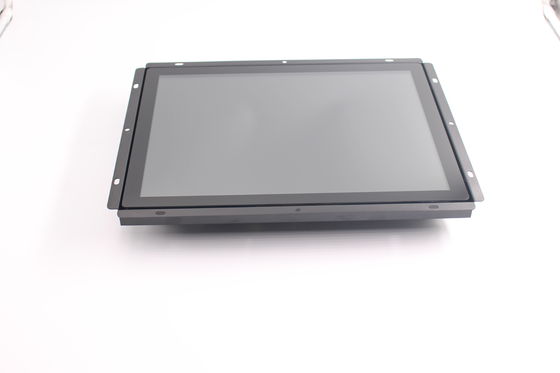

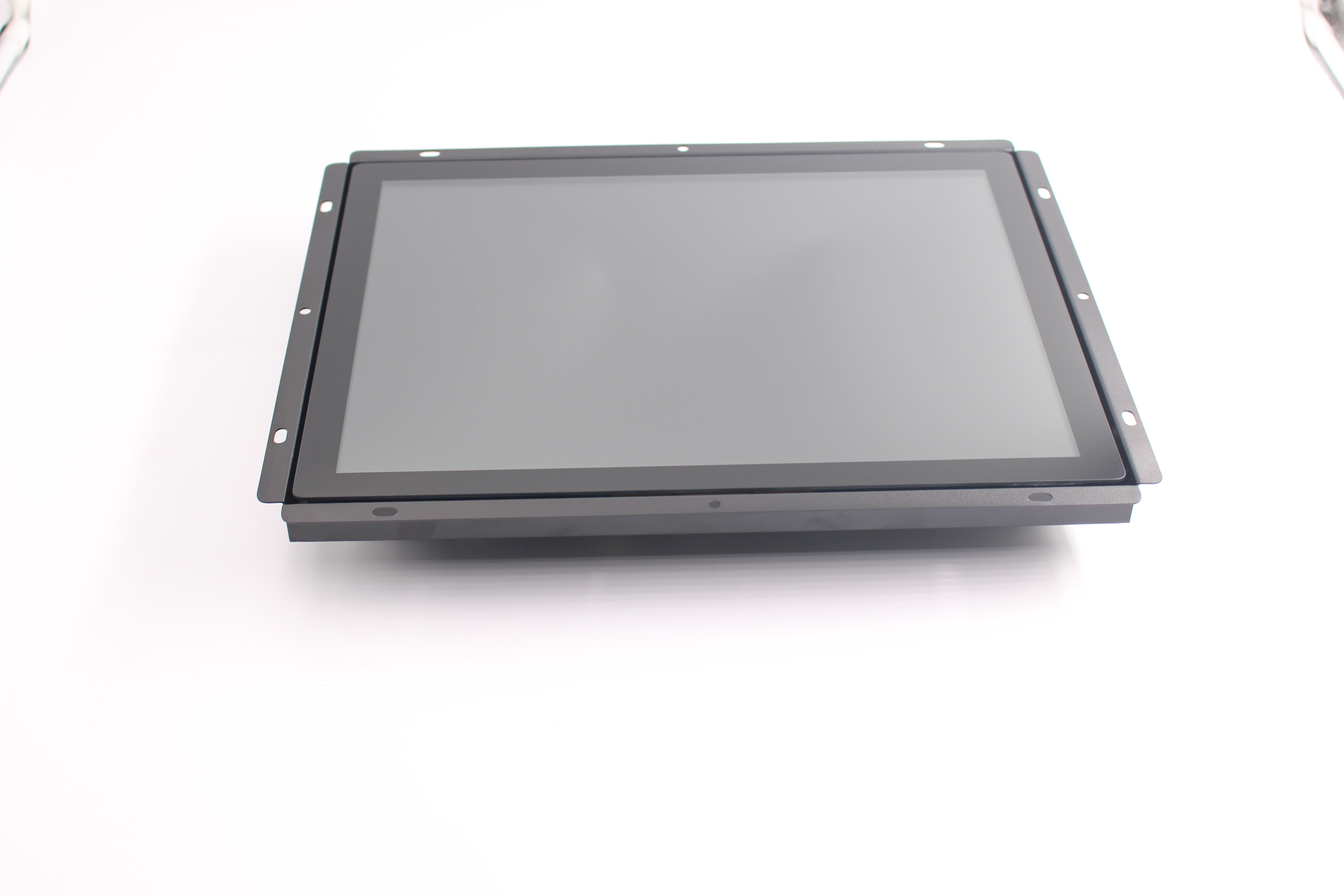

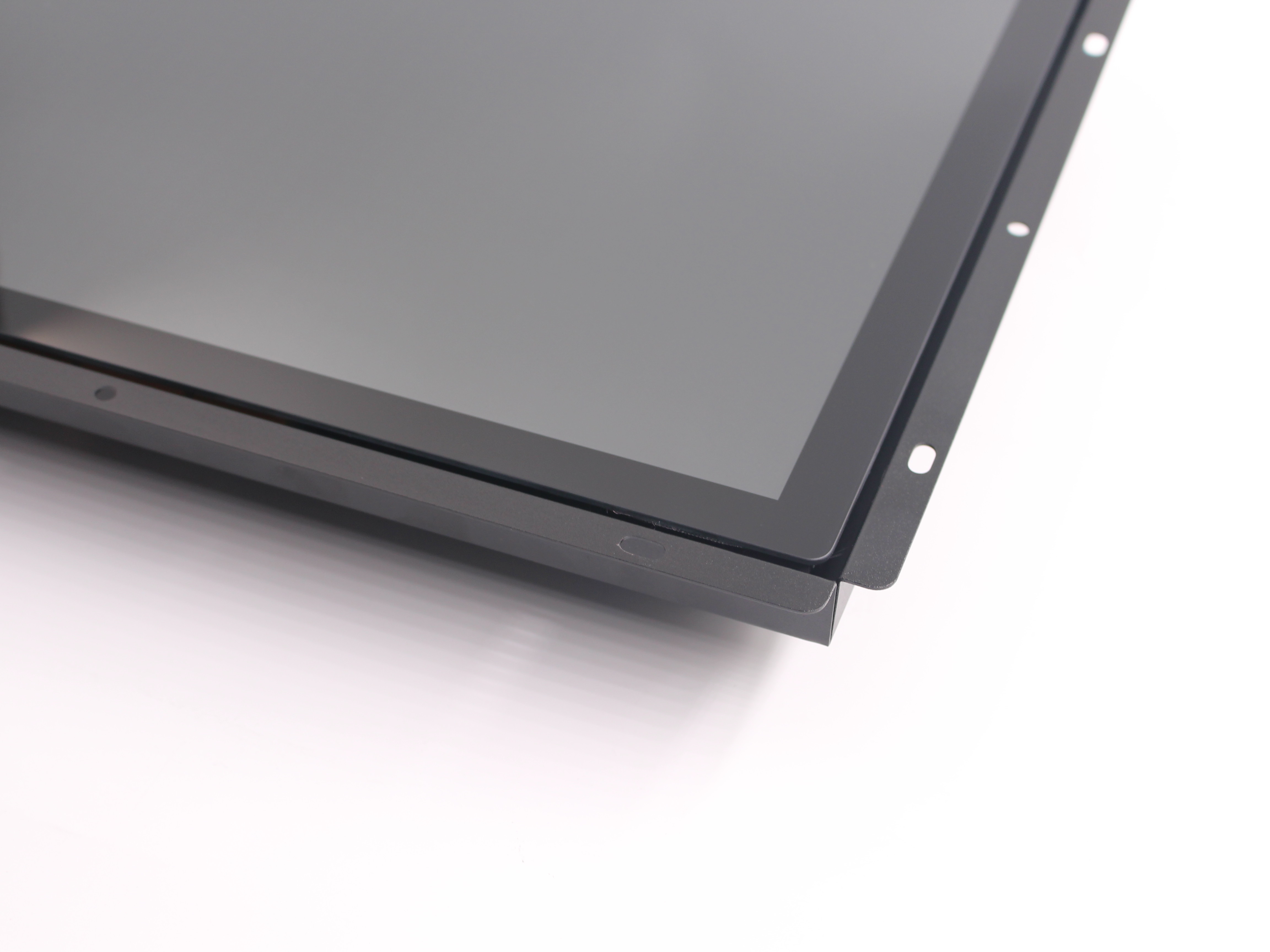

15 panel pc linux Ubuntu open frame touch screen computer for kiosk
FEATURES
•High contrast color TFT LCD display supports resolution up to 1024 x 768
•Supports DDC 1/2B for Plug & Play compatibility
•Rugged steel chassis and aluminum front bezel
•CE, FCC, RoHS Compliance
OPTIONALS
•Anti-Glare / Anti-Reflective tempered glass
•SDD 16GB, 32GB, 64GB or more
•Touch optional: Resistive, SAW, IR
•High brightness, sunlight readable
•VESA brackets optional
SPECIFICATION
| System | CPU | Intel® i3 2120 LGA1155/3.3GHz/3M |
| Memory | 4GB | |
| Chipset | Intel® H61 Express | |
| HDD | 320GB SATA | |
| LAN | 1 x 10/100/1000Mbps Ethernet | |
| Input/Output | USB Ports | 2 X USB 3.0, 7 X USB2.0 |
| HDMI Port | 1 HDMI Port | |
| ESATA | 1 X ESATA Port | |
| PS/2 | N/A | |
| Audio | Audio in; Audi out | |
| Panel | Cell Type/Glass Surface | TFT LCD |
| Aspect Ratio/Size | 15” 4:3 | |
| Active Area/Pixel Pitch | 304.1(H)*228.1(V)/0.297 | |
| Native Resolution/Colors | 1024x 768 /16.2M | |
| Brightness/Contrast | 250nits/500:1 | |
| Viewing Angle(Typical) | UP/Down 70-60 Deg/ - Left/Right 80-80 Deg | |
|
Synchronization Range Horizontal/Vertical |
31.5~37.5KHz/60~75Hz | |
| Light Source | CCFL /LED | |
| Convenient Features | Backlight adjustment, on-off Key | |
| Power | Input Voltage | Internal Power Supply AC100~240V |
| Operation/Power Saving | 28W | |
| Output Voltage | +12V 5A | |
| Environment Considerations | Operating Temperature | -10~60 deg.C |
| Storage Temperature | 10~70 deg.C | |
| Relative Humidity | 30%~90% | |
| OS Support | Windows 7/8/ Windows XP Embedded/ Windows XP Embedded/ Linux/ Win CE | |
| Touch Panel/Interface | Resistive | |
| Order Information | 15” Industrial open frame panel PC with IR touch/ITD15PPCT2FC1 | |
| 15” Industrial open frame panel PC with SAW touch/ITD15PPCT3FC1 | ||
| 15” Industrial open frame panel PC with SCT touch/ITD15PPCT4FC1 | ||
| 15” Industrial open frame panel PC with PCT touch/ITD15PPCT5FC1 | ||
| 15” Industrial open frame panel PC without touch/ ITD15PPCN1FC1 | ||
| 15” Industrial open frame panel PC with tempered glass/ ITD15PPCG1FC1 | ||
