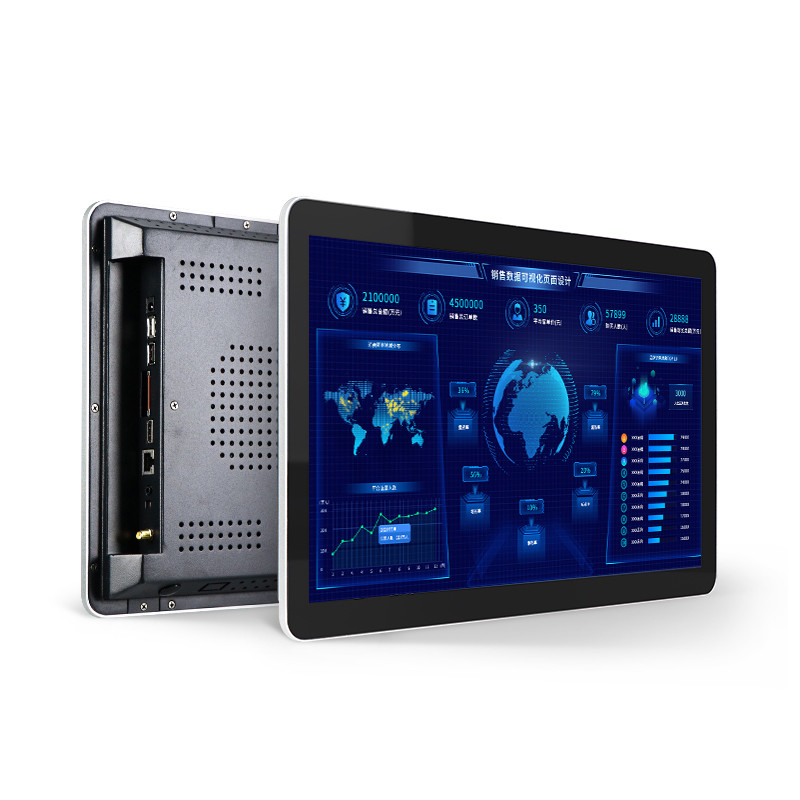

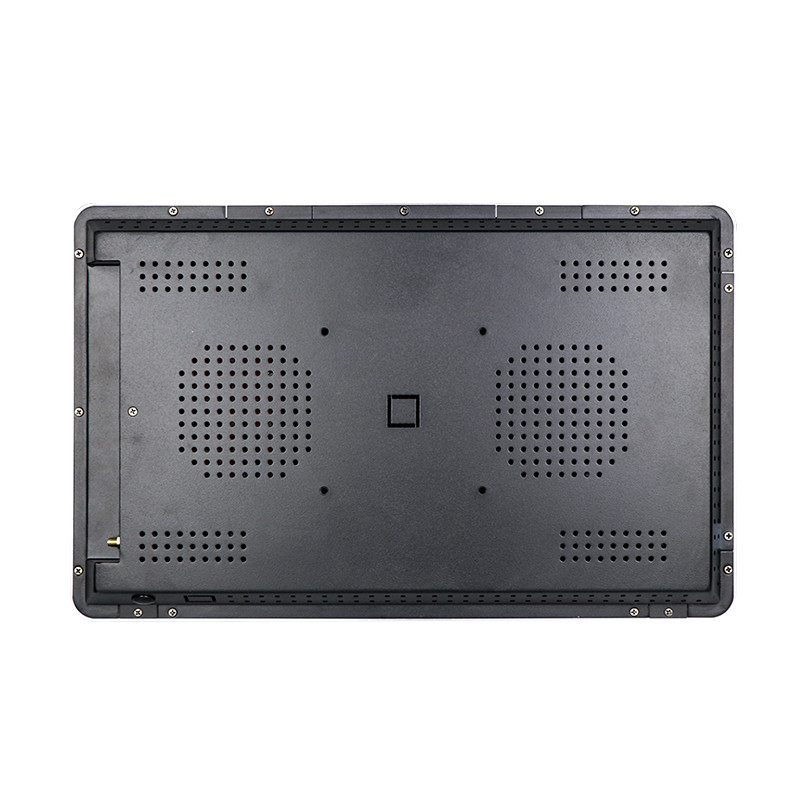

17.3 Inch 1920x1080 Industrial Touch Screen Monitor 300nits For Pc
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD173OFT5K1 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution | 1920 X 1080 | Brightness | 300nits |
|---|---|---|---|
| Input | VGA, DVI, HDMI Inputs | Touch Panel | Capacitive 10 Points |
| Mounting Method | VESA | Power Input | DC 12V |
| Operating Temperature | -10~60℃ | Storage Temperature | -20~70℃ |
| Material | Steel Housing, Aluminum Frame | Warranty | 2 Years |
| MTBF | 50000hours | ||
| Highlight | 1920x1080 Industrial Touch Screen Monitor,17.3 Inch Industrial Touch Screen Monitor,300nits Touch Screen Computer Monitor |
||
Product Description
small touch screen monitor for pc 17.3 inch 1920x1080 HDMI input
2. 1 General
| Model | ITD173OFT5K1 |
| IP | IP65(for front panel only) |
| Outline Dimensions | Width: 394mm Height: 241mm Depth: 34.8mm |
| Weight(N.W/G.W) | 3.04Kg / 5.05Kg (Approx.) |
| Packing Dimension | 520(W) ×450(H)×145(D)mm |
| Speakers | 8Ω10W |
| LCD Type | 17.3＂Active matrix TFT-LCD |
| Video Input | VGA and DVI-I, HDMI, Audio |
| Recommend Resolution | 1920×1080@60Hz,75Hz |
| OSD controls | Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External Brick Input (line) Voltage: 100-240 VAC, 50-60 Hz Output Voltage/Current: 12V at 4A Max. |
| Power Consumption | 18W |
| Mount Interface |
1)VESA 75×75 and 100×100mm 2)Mounting Brackets optional |
| Regular Warranty | 1 Year for TFT Panel and 2 Years for Others |
| Agency Approval | FCC,CE,RoHS Certified |
2. 2 LCD Specification
| Active Area(mm) | 381.89(H) x 214.81(V) |
| Resolution | 1920×1080 |
| Dot Pitch(mm) | 0.1989×0.1989 |
| Nominal Input Voltage VDD | +3.3V(Typ) |
| Viewing angle (L/R/T/B) | 85°/85°/85°/85° |
| Contrast | 800:1 |
| Luminance(cd/m2) | 300 |
| Response Time(Rising/Falling) | 30s |
| Support Color | 262K |
| Screen Scanning | 60Hz |
| Backlight MTBF(hr) | 50000h |
2.3 Touch Screen Specification
| Type | Projected Capacitive Touch Screen |
| Resolution | 4096×4096 |
| Light Transmission | 85%±5% |
| Touch Life Cycle | 50 millions times |
| Touch Response time | 5ms |
| Touch System Interface | USB A type |
| Operating System Support |
Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above Drivers for Windows CE/XP, Android |
2.4 External AC Power Adapter
| Output | 12V DC/3A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
2.5 Environment
| Operating Temp. | -10～60°C |
| Storage Temp. | -20～70°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
