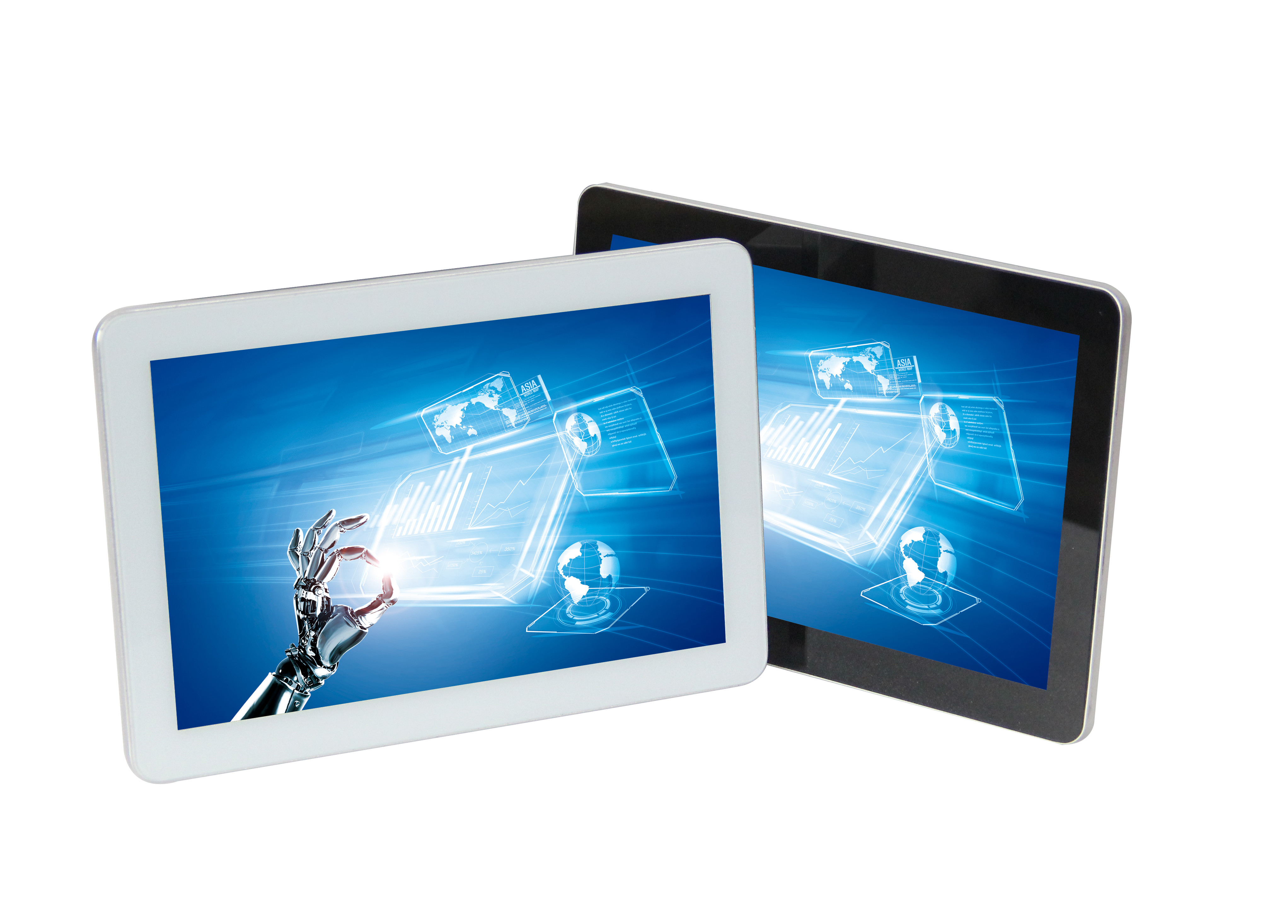

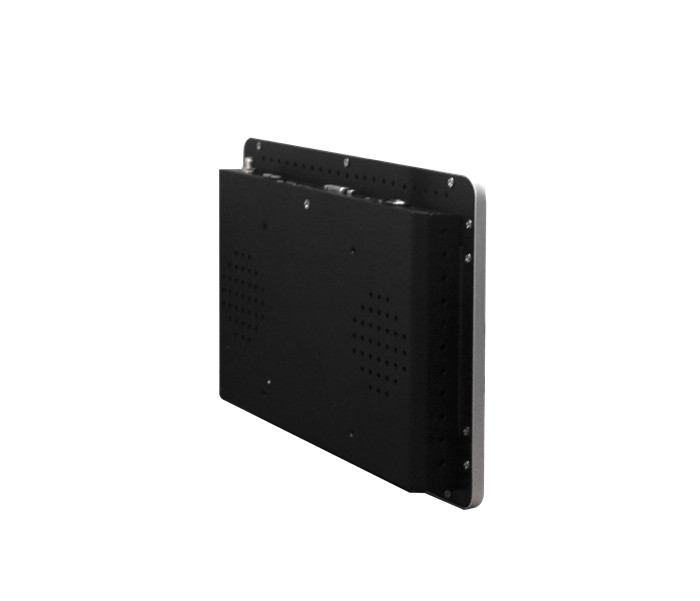

10.1in 1920x1200 Android Panel Pc Capacitive Touch VESA
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD101PPCT5KE1 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution | 1920 X 1200, 1280*800 Optional | Brightness | 350nits |
|---|---|---|---|
| I/O | HDMI Input, USB Ports, SD Card Slot, RJ45,COM Optional | Touch Panel | Capacitive 10 Points |
| Mounting Method | VESA, Side Mounting Brackets Optional | Power Input | DC 12V |
| Operating Temperature | -10~60℃ | Storage Temperature | -20~70℃ |
| Material | Steel Housing, Aluminum Frame | Warranty | 2 Years |
| MTBF | 50000hours | IP Rate | IP65 Front |
| Highlight | 10.1in Android Panel Pc,1920x1200 Android Panel Pc,VESA Capacitive Touch Screen PC |
||
Product Description
android panel pc 10.1inch 1920x1200 capacitive touch screen for commercial
- FHD Resolution 1920*1200
- Flat surface edge to edge with easy-to-clean surface
- IP65 front
- VGA, DVI, HDMI inputs
- Ultra low power consumption
- 10 mutl touch points projected capacitive
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 10.1”/16:10 | |
| Active Area/ Pixel Pitch | 216.81(W) × 135.50(H)mm /0.113 × 0.113mm | |
| Native Resolution/ Colors | 1920 x 1200/16.7M | |
| Brightness/ Contrast | 300cd/㎡/800:1 | |
| Response Time | 14ms | |
| Viewing Angle (Typical) | 80/80/80/80 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SPECIFICATION
| System |
CPU: ARM Quad Core RK3288 Cortex-A17, Main CPU frequency:1.8GHz; RK3368, RK3399 optional GPU: Mali-T764 GPU SDRAM: 2G; 4G Optional Flash: 8G: 16G/32G/64G/128G Optional OS: Android 6.0/7.1; Bluetooth: Optional Video Decoder: 4K VP8 and 4K 10bits H265/H264 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM /H264/VP8/MVC Photo Format: Supports JPG/BMP/GIF/TIFF/PNG |
| Input / Output |
1 × HDMI; 2 × USB Max. 6× USB 1 × TF Card Support 8~128GB; 1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E); 1 × DC 12V 2.0; 3G/4G Optional Com Port optional |
| Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ |
| Relative Humidity | 10%~90% |
| Order Information | 10.1” Zero-Bezel Android Panel PC with Tempered Glass/ITD101PPCG1KE1 |
