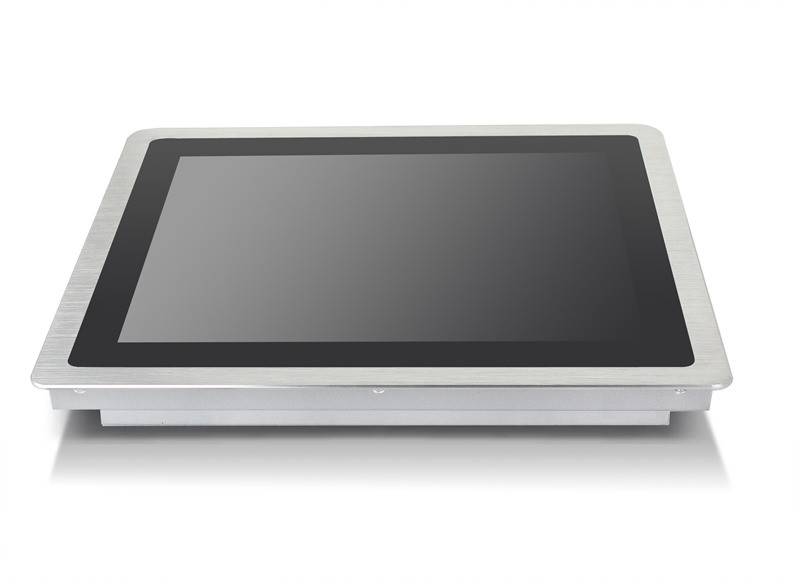

LPCM RK3288 Industrial Panel Pc 13.3 Inch FHD Touch Screen
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD13PPCT5XE31 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,wooden case,pallet |
| Delivery Time | 15-20 working days |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 10000 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | RK3288, RK3399, Intel J1900, E3845, I3/i5/i7 Optional | Material | Aluminum Frame, Steel Back Chassis |
|---|---|---|---|
| Screen Diagonal | 13.3" | Physical Resolution | 1920 X 1080 |
| View Angels | 85/85/85/85 | Backlife | LED Backlight With 50000 Hours’lifetime |
| RAM | 2G Max. 4G | IP Rate | Front IP65 |
| Touch Screen | Resistive Touch Screen Or PCAP Touch | Storage | 8G, Max. 32G |
| OS | Android 8.9,10, 11, Linux Optional | ||
| Highlight | RK3288 Industrial Panel Pc,LPCM Industrial Panel Pc,13.3 Inch Android Panel Pc |
||
Product Description
13.3 inch FHD touch screen computer all in one android industrial panel pc
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 13.3”/16:9 | |
| Active Area/ Pixel Pitch | 293.42(H)x 164.97(V)mm/0.2235 × 0.2235mm | |
| Native Resolution/ Colors | 1920 x 1080/262K | |
| Brightness/ Contrast | 300cd/㎡/700:1 | |
| Response Time | 16ms/89/89/89/89 | |
| Viewing Angle (Typical) | LED Backlight with 50000Hours’Lifetime | |
| Light Source | 293.42(H)x 164.97(V)mm/0.2235 × 0.2235mm |
SPECIFICATION
| System |
CPU: ARM Quad Core RK3288, Main CPU frequency:1.8GHz GPU: Mali-T764 GPU SDRAM: 2G; 4G Optional Flash: 8G: 16G/32G/64G/128G Optional OS: Android 5.1/6.0; Bluetooth: Optional Video Decoder: 4K VP8 and 4K 10bits H265/H264 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM /H264/VP8/MVC Photo Format: Supports JPG/BMP/GIF/TIFF/PNG |
| Input / Output |

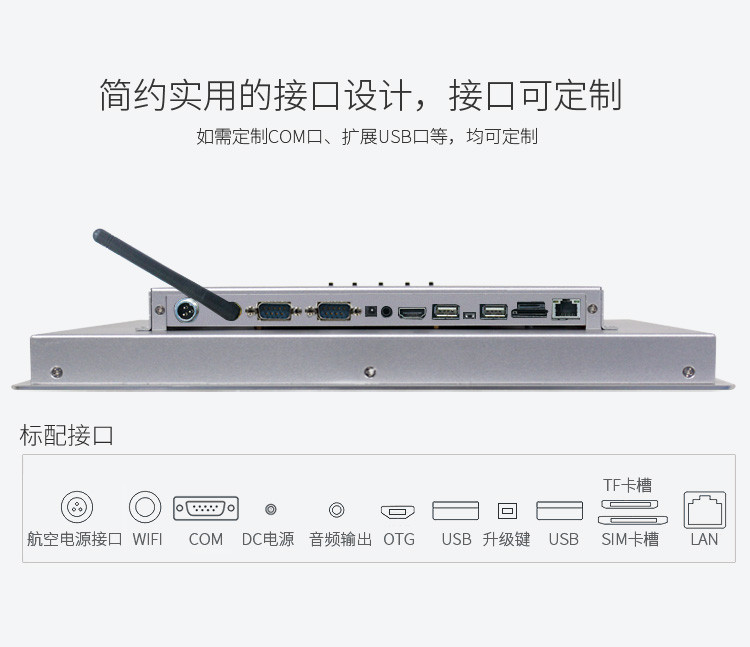

1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1×COM; 1 × TF Card Support 8~128GB; 1 × DC 12V 2.0; 3G/4G Optional 1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E); |
| Operating Temperature | -10~60℃ (-20~70℃ Optional) |
| Storage Temperature | -20~70℃ |
| Relative Humidity | 10%~90% (Non-Condensing) |
| Order Information | 13.3” Flat Bezel Android Panel PC with PCAP Touch/ITD13PPCT5XE1 |
| 13.3” Flat Bezel Android Panel PC with Resistive Touch/ITD13PPCT1XE1 | |
| 13.3” Flat Bezel Android Panel PC with Tempered Glass/ITD13PPCG1XE1 |
