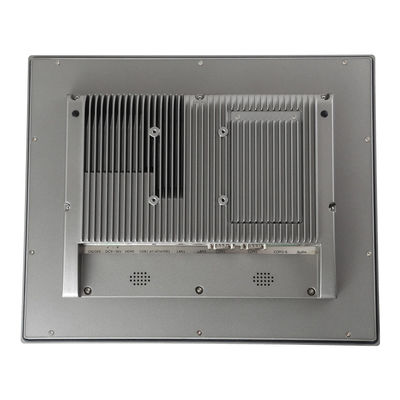

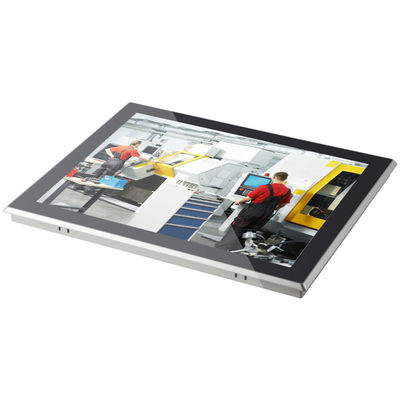

77W Linux PCA PCT Touch Panel PC Computer 17 inch Waterproof IP65 Intel E3845
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD17PPCT5B-xxxx |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 17" | Brightness | 350nits |
|---|---|---|---|
| Processor | Intel I3/i5/i7, Intel J1900, Intel E3845 | Touch Panel | PCA/PCT, Resistive |
| Mounting Method | VESA, Panel Mounting | I/O | USB, COM, HDMI, Audio, LAN |
| Operating Temperature | -10~60℃ | Storage Temperature | -20~70℃ |
| Material | Steel Housing, Aluminum Frame | Warranty | 2 Years |
| MTBF | 50000hours | Applications | Kiosk, Digital Signage, Automation, Access Control, Information Display |
| Highlight | 77W Touch Panel PC,PCA PCT Touch Panel PC,Intel E3845 Industrial Touch Panel |
||
Product Description
linux panel pc industrial touch panel computer 17inch waterproof IP65
| Panel | Cell Type/Glass Surface | TFT |
| Size | 17” | |
| Aspect Ratio | 4:3 | |
| Active Area | 337.92(H) x 270.33(V)mm | |
| Pixel Pitch | 0.264 × 0.264mm | |
| Native Resolution | 1280 x 1024 | |
| Colors | 16.7M | |
| Brightness | 250cd/㎡ | |
| Contrast | 1000:1 | |
| Response Time | 25ms | |
| Viewing Angle(Typical) | 170/160 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SPECIFICATION
| System | CPU | Intel® Core i3/i5/i7 Processor |
| BIOS | AMI | |
| Chipset | Intel SoC Chipset | |
| Memory | 2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB | |
| Graphic Chipset | Intel HD Graphics (By CPU) | |
| Storage | 1 x SATA, 1 x mSATA, Default to 64GB SSD | |
| LAN | 1 x 10/100/1000Mbps Ethernet | |
| Input / Output | Serial Ports | 2 x COM |
| USB Ports |
1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 2 x COM max. 6; 1 x Realtek ALC662 Line-Out /MIC IN |
|
| VGA Port | 1 x VGA Output | |
| HDMI Port | 1x HDMI Output | |
| Audio Card |
with Realtek ALC662 Line-Out /MIC IN |
|
| Power | Input Voltage | DC 12V |
| Operation/Power Saving | 77W | |
| Environment Considerations | Operating Temperature | -10~60℃ (-20~70℃ Optional) |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90% |
