1680×1050 Open Frame Lcd Monitor HDMI DP CCFL For Casino Slot Machines
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD22OFN1M1 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution | 1920x1080 | Brightness | 300nits, 500 ,1000nits, Optional |
|---|---|---|---|
| Touch Panel | PCAP, Resistive Touch, IR Touch, SAW | Mounting Method | VESA, Rear Mount, Side Mounting |
| I/O | VGA, DVI, HDMI Inputs, USB Port, DC 12V Input | Operating Temperature | -10~60℃ ; -20~70℃ Optional |
| Storage Temperature | -20~70℃ | Viewing Angles | 85/85/80/80, 89/89/89/89 Optional |
| Warranty | 2 Years | MTBF | 50000hours |
| Highlight | 1680×1050 Open Frame Lcd Monitor,HDMI DP Open Frame Lcd Monitor,CCFL Open Frame Lcd Panel |
||
Product Description

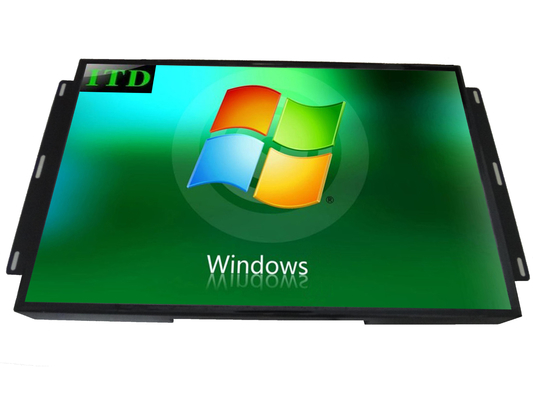

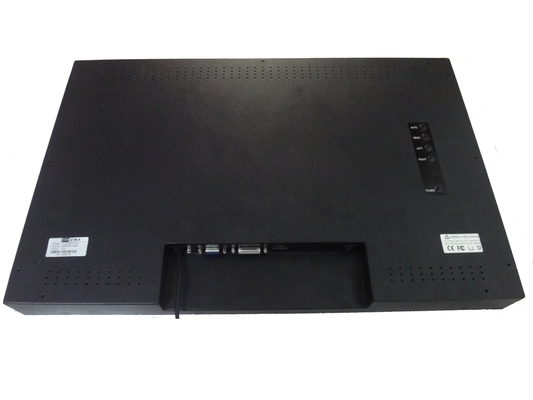

22 open frame lcd monitor 1680×1050 HDMI DP port for gaming casino slot machines
ITD 22” ITD22OFT1S1 open frame monitor with 5 wires resistive touch screen installed provides industrial or commercial users with crystal clear picture quality. The all metal enclosures is rugged in design and fit perfectly into any enclosure. It is space saving for your compact environment cabinet.
FEATURES
• High contrast color TFT LCD display supports resolution up to 1680 x 1050
• Supports DDC 1/2B for Plug & Play compatibility
• Advanced OSD control for picture quality adjustment
• Rugged all-metal chassis with simplest designing
• CE, FCC, RoHS Compliance
OPTIONALS
• Anti-Glare / Anti-Reflective tempered glass
•T ouch sensor technologies: resistive, IR, SAW, capacitive
• AV inputs optional
• Mounting brackets on top/bottom
SPECIFICATION
| Panel | Cell Type/Glass Surface | TFT |
| Aspect Ratio/Size | 22” 16:10 | |
| Active Area/Pixel Pitch | 473.76H)*296.1(V)/0.282 | |
| Native Resolution/Colors | 1680 x 1050 /16.7M | |
| Brightness/Contrast | 250nits/1000:1 | |
| Response Time | 5ms | |
| Viewing Angle(Typical) | 85/85/80/80 | |
| Light Source | LED/CCFL | |
| Input signals | VGA/DVI/HDMI | |
| Convenient Features | Backlight adjustment, Plug & Play, OSD Multi-Languages | |
| Power | External AC-to-12VDC power adapter with universal/Auto-Sensing | |
| Power Consumption | Operation/Power Saving | Below 30W |
| Touch Panel | 5 Wires Resistive Touch Screen USB or RS232 | |
| Key Control | Power on/off with LED, Menu, Select, Adjustment(Right/Left) | |
| Order Information | 22”open frame monitor with no touch/ITD22OFN1S1 | |
| 22”open frame monitor with IR touch/ITD22OFT2S1 | ||
| 22”open frame monitor with SAW touch/ITD22OFT3S1 | ||
| 22”open frame monitor with capacitive touch/ITD22OFT4S1 | ||
| 22”open frame monitor with tempered glass/ITD22OFG1S1 | ||
