10.1 Inch POE Mini Computer VESA Wall Embedded RJ45 350nits

  • 10.1 Inch POE Mini Computer VESA Wall Embedded RJ45 350nits
  • 10.1 Inch POE Mini Computer VESA Wall Embedded RJ45 350nits
  • 10.1 Inch POE Mini Computer VESA Wall Embedded RJ45 350nits
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD101PPCT5XE31
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 7-10 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CPU ARM Quad Core RK3288 RK3368 RK3399 Flash 8G: 16G/32G/64G/128G Optional
Input/Output 1 × HDMI; 2 × USB Max. 6× USB;1 × RJ45 LAN;1 × DC 12V Ethernet 10/100/1000M; Resolution 1280x800
Brightness 350nits Viewing Angle 85/85/85/85
Operating Temperature -10 To 60 C Active Area 222.52(W) X 125.11(H)mm /0.1629 × 0.1629mm
Caing Aluminum Alloy Front Bezel
Highlight

VESA Wall Embedded POE Mini Computer

,

10.1 Inch POE Mini Computer

,

350nits Android Touch Screen PC
Leave a Message
Product Description

VESA Wall Embedded 10.1inch RJ45 POE Mini Computer Industrial All In One Android touchscreen PC





ITD New Series multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines Android media player, and Projected Capacitive Touch (PCT or PCAP)Technology in TFT LCD flat panels, with sleek and flat front surface commercial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD multi-touch HMI comfort panel PC specifically suited for various interactive digital signage applications.





Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 10.1”/16:9
Active Area/ Pixel Pitch 222.52(W) x 125.11(H)mm /0.1629 × 0.1629mm
Native Resolution/ Colors 1366x 768/ 16.7M
Brightness/ Contrast 300cd/㎡/800:1
Response Time 25ms
Viewing Angle(Typical) 85/85/85/85
Light Source LED Backlight with 50000Hours’Lifetime

SPECIFICATION

System

CPU: ARM Quad Core RK3288,Main CPU frequency:1.8GHz

GPU: Mali-T764 GPU

SDRAM: 2G; 4G Optional

Flash: 8G: 16G/32G/64G/128G Optional

OS: Android 5.1/6.0; Bluetooth: Optional

Video Decoder: 4K VP8 and 4K 10bits H265/H264

1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM

/H264/VP8/MVC

Photo Format: Supports JPG/BMP/GIF/TIFF/PNG
Input / Output

1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG; 4 × COM;

1 × TF Card Support 8~128GB; 1 × DC 12V 2.0; 3G/4G Optional

1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);
Operating Temperature -10~60℃ (-20~70℃ Optional)
Storage Temperature -20~70℃
Relative Humidity 10%~90% (Non Condensing)
Order Information 10.1”Zero-Bezel Android Panel PC with PCAP Touch/ITD101PPCT5KXE31
10.1”Zero-Bezel Android Panel PC with Resistive Touch/ITD101PPCT1KXE31
10.1”Zero-Bezel Android Panel PC with Tempered Glass/ITD101PPCG1XE31

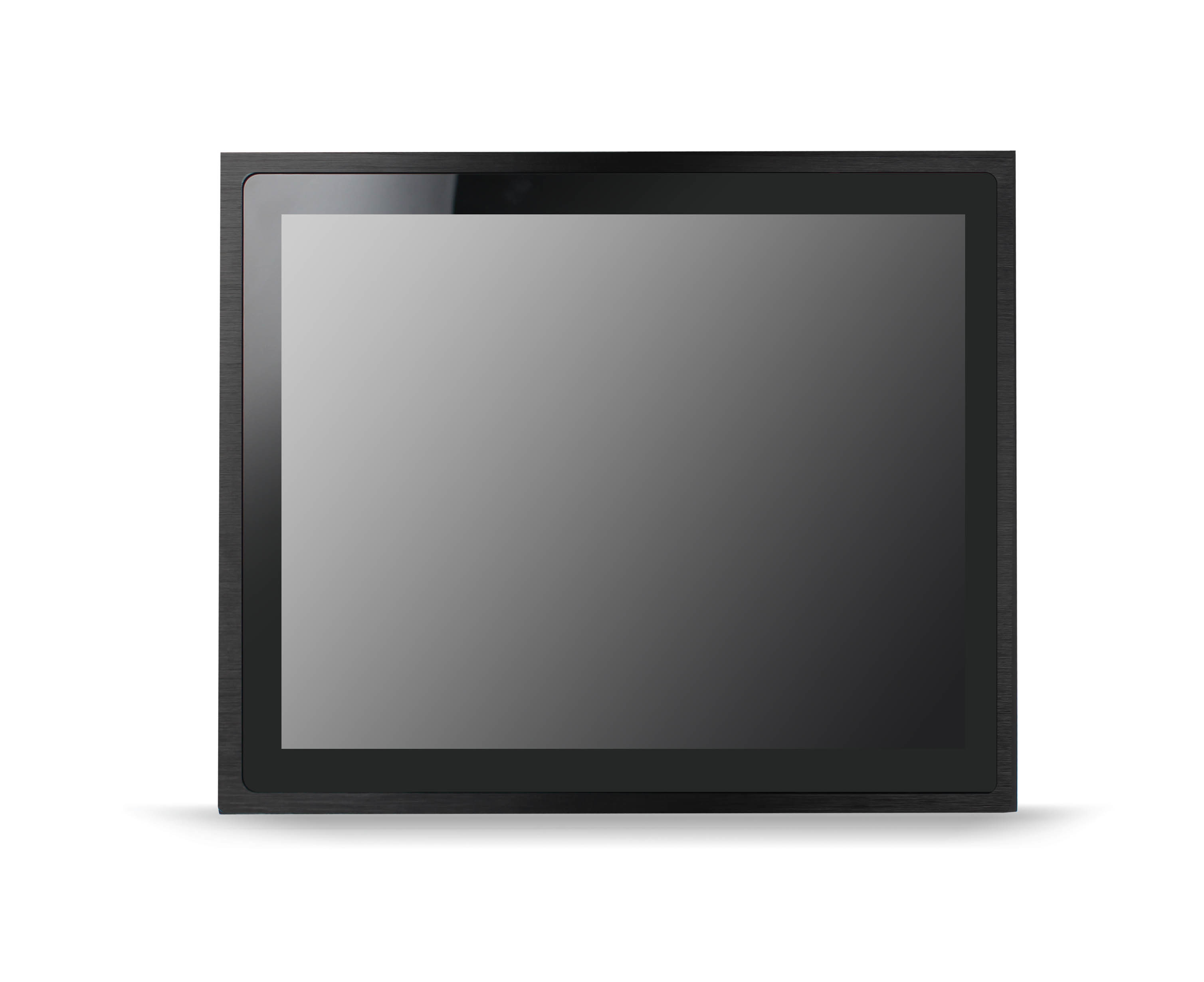

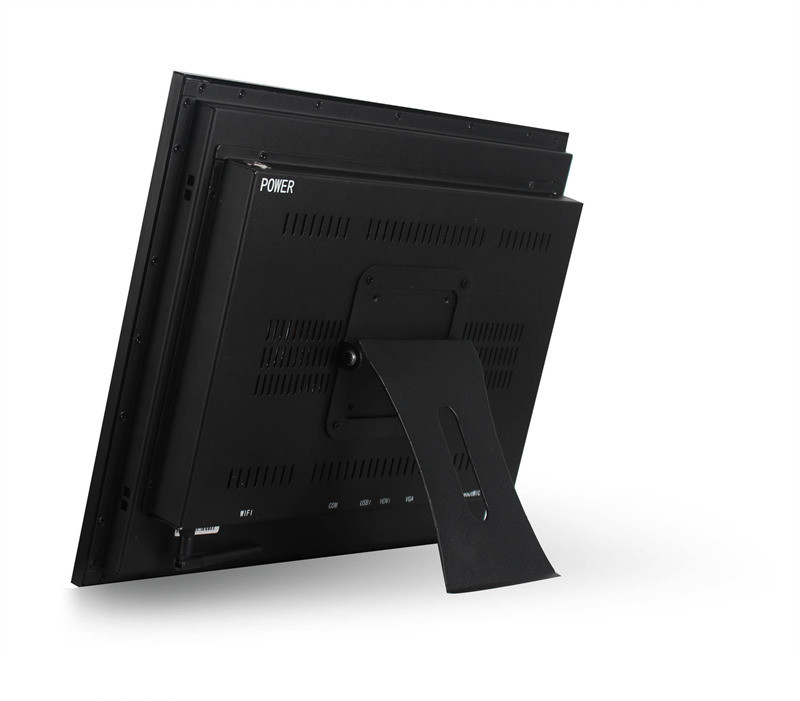

Product picture:





10.1inch tablet industrial panel PC











Android touchscreen PC





ALL ine one touchscreen Android panel PC





Applications:



10.1 Inch POE Mini Computer VESA Wall Embedded RJ45 350nits 3



10.1 Inch POE Mini Computer VESA Wall Embedded RJ45 350nits 4
