PCAP Resistive Rugged Panel PC USB RS232 300nits Stainless Steel
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD17PPCT5HBIPSE1 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 15-20 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 1000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| View Angels | 85/85/80/80 | IP Rating | IP65/IP66/IP67 |
|---|---|---|---|
| Touch Options | Capacitive | Resolution | 1280 X 1024 |
| System | Windows 7/Windows 8/Windows 10 | Serial Ports | 1x COM (Optional) |
| USB Ports | 1 X USB 2.0(Waterproof Connector And Cable) | Power Port | 1 X 12V DC Jack(Waterproof Connector And Cable) |
| LAN | 1 X 10/100/1000Mbps Ethernet(Waterproof Connector And Cable) | CPU | J1900/I3/I5/I7 Optional |
| Highlight | USB RS232 Rugged Panel PC,PCAP Resistive Rugged Panel PC,300nits Stainless Steel Panel PC |
||
Product Description

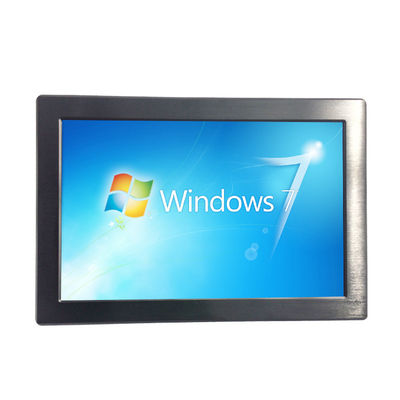

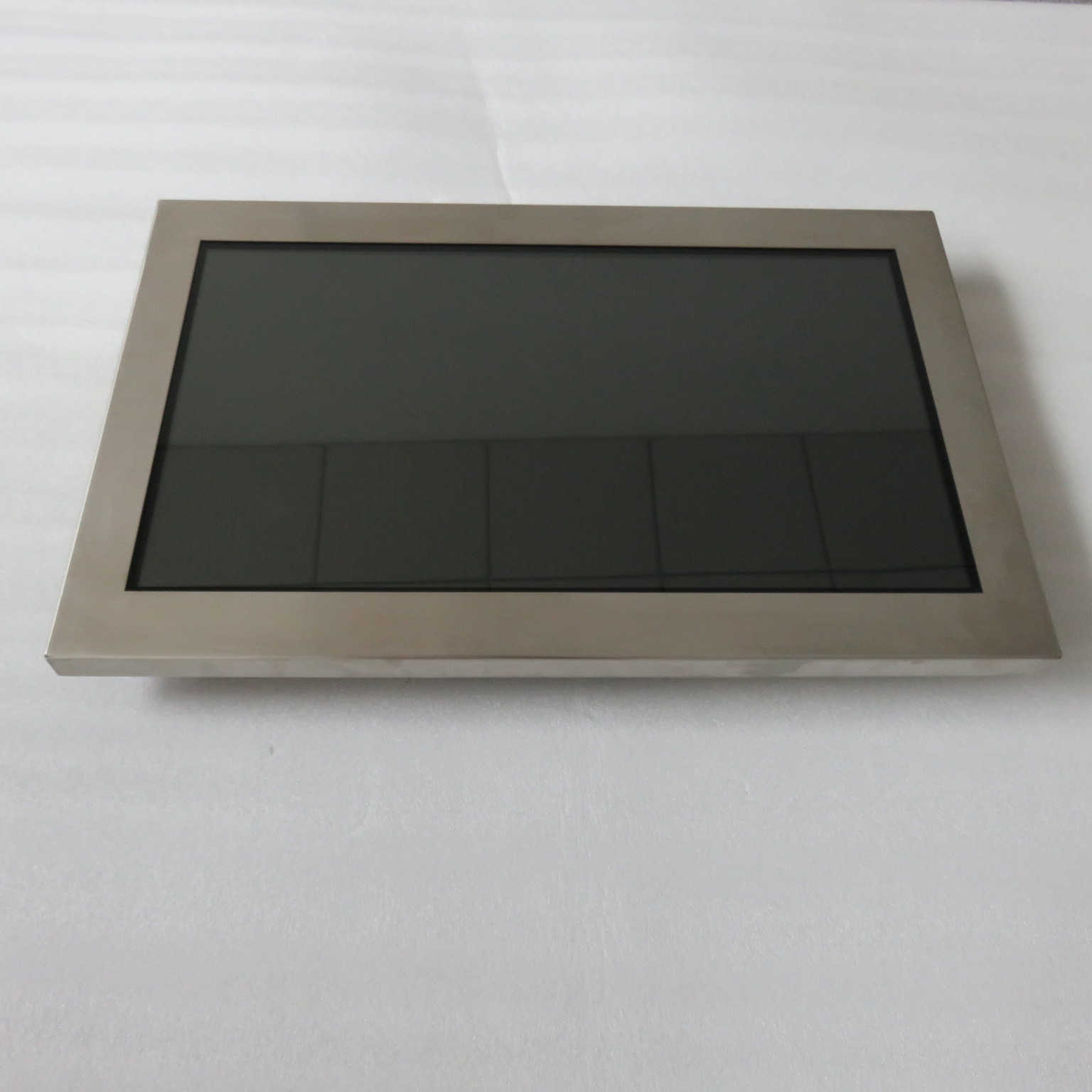

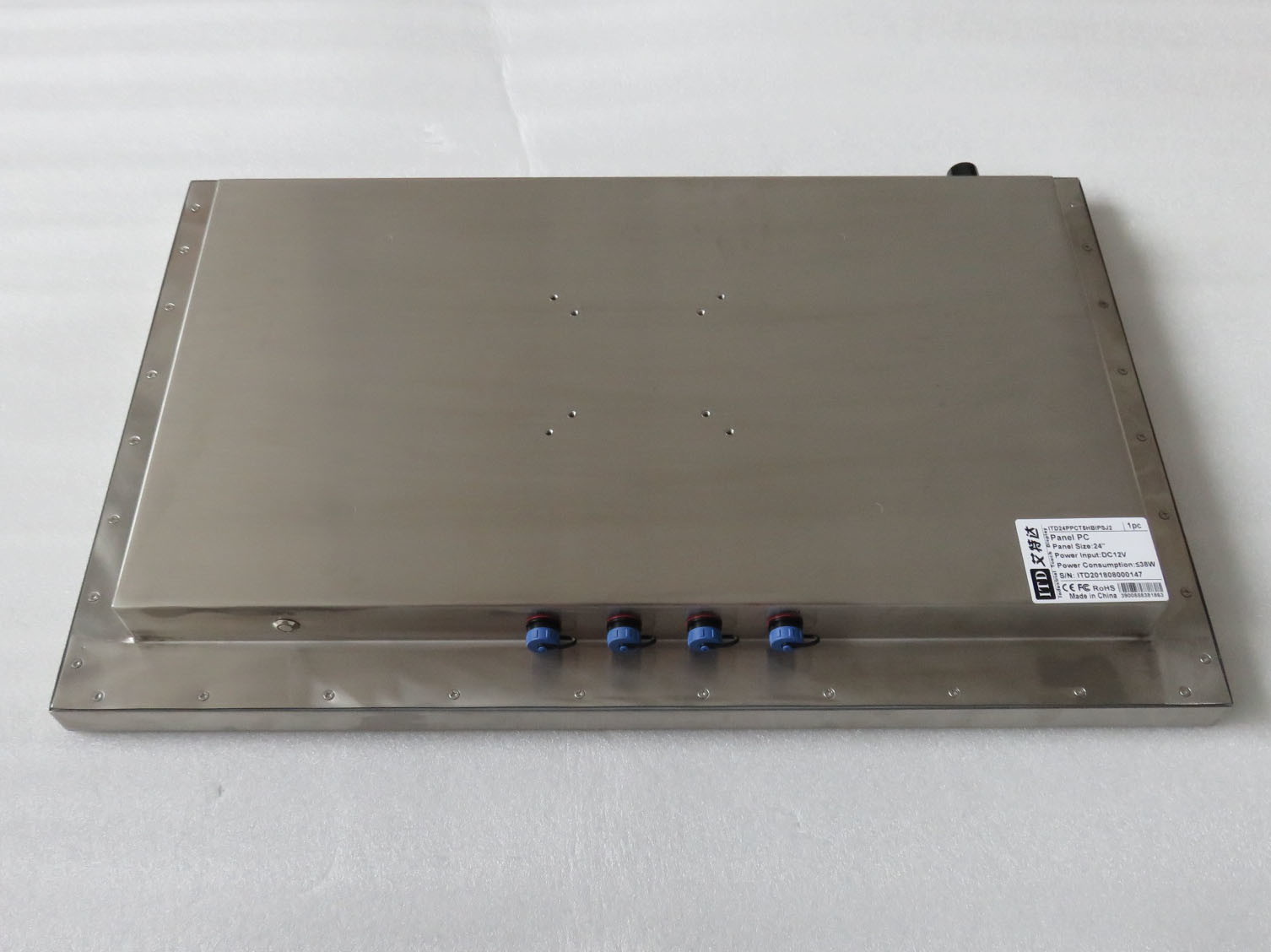

17" Rugged Stainless Steel Panel PC with Resistive/Capacitive touch screen and High Brightness optional
ITD rugged industrial rugged full IP66/IP67 LCD display series features industrial-duty fully sealed NEMA 4/IP66 stainless steel chassis, for specially use in hygienic and harsh environments. It offers extra protection from extensive corrosive environments with the intrusion of dust, rain, hose directed water, and applications where corrosive materials and caustic cleaners are used. The additional high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality and guaranteeing product life cycle longevity, stability, and reliability.
SPECIFICATION
| Model | ITD07CMG1IPS1 | ITD08CMG1IPS1 | ITD09CMG1IPS1 | ITD10CMG1IPS1 |
| Size | 7” | 8.4” | 9.7” | 10.4” |
| Active Area | 152.4(W) x 91.44(H) | 170.4(W) x 127.8(H) | 196.608(W) x 147.456(H) | 211.2(W) x 158.4(H) |
| Pixel Pitch | 0.1905 | 0.213 | 0.192 | 0.264 |
| Contrast Ratio | 500:1 | 600:1 | 500:1 | 500:1 |
| Resolution | 800 x 480 or 1024 x 600 | 800 x 600 | 1024 x 768 | 800 x 600 or 1024 x 768 |
| Brightness | 300nits | 250nits | 350nits | 300nits |
| Viewing Angles | 80/80/80/80 | 80/80/80/60 | 80/80/80/80 | 70/70/60/70 |
| Response Time | 30ms | 30ms | 25ms | 35ms |
| Colors | 262K | 262K | 262K | 262K |
| Backlight | LED | LED | LED | LED |
| Model | ITD12CMG1IPS1 | ITD15CMG1IPS1 | ITD17CMG1IPS1 | ITD19CMG1IPS1 |
| Size | 12.1” | 15” | 17” | 19” |
| Active Area | 246.0(H) x 184.5(V) | 304.12(H)x 228.09(V) | 337.92(H) x 270.33(V) | 376.32(H) x 301.06(V) |
| Pixel Pitch | 0.3075 | 0.297 | 0.264 | 0.294 |
| Contrast Ratio | 700:1 | 700:1 | 1000:1 | 1000:1 |
| Resolution | 800 x 600 or 1024 x 768 | 1024 x 768 | 1280 x 1024 | 1280 x 1024 |
| Brightness | 300nits | 250nits | 250nits | 250nits |
| Viewing Angles | 70/70/60/70 | 80/80/60/70 | 85/85/80/80 | 85/85/80/80 |
| Response Time | 35ms | 35ms | 5ms | 5ms |
| Colors | 262K | 16.2M | 16.7M | 16.7M |
| Backlight | LED | LED | LED | LED |
| Model | ITD21CMG1IPS1 | ITD24CMG1IPS1 | ITD27CMG1IPS1 | ITD32CMG1IPS1 |
| Size | 21.5” | 24” | 27” | 32” |
| Active Area | 476.64(H)x248.25(V) | 531.36(H)x298.89(V) | 597.6(H)x336.15(V) | 698.4(H)x392.85(V) |
| Pixel Pitch | 0.248 | 0.2768 | 0.3114 | 0.3638 |
| Contrast Ratio | 1000:1 | 1000:1 | 1000:1 | 1200:1 |
| Resolution | 1920 x 1080 | 1920x1080 | 1920x1080 | 1920x1080 |
| Brightness | 250nits | 300nits | 300nits | 400nits |
| Viewing Angles | 85/85/80/80 | 89/89/89/89 | 89/89/89/89 | 89/8/9/89/89 |
| Response Time | 5ms | 5ms | 5ms | 8ms |
| Colors | 16.7M | 16.7M | 16.7M | 16.7M |
| Backlight | LED | LED | LED | LED |
| Model | ITD43CMG1IPS1 | ITD49CMG1IPS1 | ITD55CMG1IPS1 | ITD65CMG1IPS1 |
| Size | 43” | 49” | 55” | 65” |
| Active Area | 930.24(H)x523.26(V) | 1073.78mm(W)×604mm(H | 1209.6(H)x680.4(V) | 1428.48(H)x803.52(V) |
| Pixel Pitch | 0.4902 | 0.55926 | 0.63 | 0.744 |
| Contrast Ratio | 1200:1 | 1100:1 | 1400:1 | 1400:1 |
| Resolution | 1920x1080 | 1920x1080 | 1920 x 1080 | 1920 x 1080 |
| Brightness | 400nits | 450nits | 400nits | 400nits |
| Viewing Angles | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Response Time | 12ms | 6ms | 8ms | 8ms |
| Colors | 16.7M | 16.7M | 16.7M | 16.7M |
| Backlight | LED | LED | LED | LED |
| Input Signal Connectors | VGA (Waterproof Connector) |
| Power (Waterproof Connector) | |
| USB/RS232 (Waterproof Connector) Optional for Touch Connection | |
| Power Input | External DC 12V for 7”~24”; Internal AC 110-240V for 27”~65” |
| Power Consumption | TBA |
| Operating Temperature | -20~60℃ for 7”~24”; -20~50℃ for 27”~65” |
| Storage Temperature | -20~70℃ |
| Operating Humidity | 10%~90% (Non Condensing) |
| Order Information | Full IP66 stainless steel monitor with tempered glass/ITD**CMG1IPS1 |
| Full IP66 stainless steel monitor with Resistive touch/ITD**CMT1IPS1 | |
| Full IP66 stainless steel monitor with PCAP touch/ITD**CMT5IPS1 | |
| Full IP66 aluminum alloy monitor with tempered glass/ITD**CMG1IPA1 | |
| Full IP66 aluminum alloy monitor with Resistive touch/ITD**CMT1IPA1 | |
| Full IP66 aluminum alloy monitor with PCAP touch/ITD**CMT5IPA1 | |
| Full IP66 steel monitor with tempered glass/ITD**CMG1IPX1 | |
| Full IP66 steel monitor with Resistive touch/ITD**CMT1IPX1 | |
| Full IP66 Steel Monitor with PCAP touch/ITD**CMT5IPX1 | |
| Full IP67 stainless steel monitor with tempered glass/ITD**CMG1IPS7 | |
| Full IP67 stainless steel monitor with Resistive touch/ITD**CMT1IPS7 | |
| Full IP67 stainless steel monitor with PCAP touch/ITD**CMT5IPS7 |
