IP69K SUS316L All In One PC Dustproof Resistive PCAP Touch Panel PC
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD10PPCG1IP** |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 15-20 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 1000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| View Angels | 70/70/60/70 | IP Rating | IP66/IP67 |
|---|---|---|---|
| Touch Options | Resistive, PCAP | Resolution | 800x600 Or 1024x768 |
| System | Intel J1900/i3/i5/i7,Android | Serial Ports | 1x COM (Optional) |
| USB Ports | 1 X USB 2.0(Waterproof Connector And Cable) | Power Port | 1 X 12V DC Jack(Waterproof Connector And Cable) |
| LAN | 1 X 10/100/1000Mbps Ethernet(Waterproof Connector And Cable) | ||
| Highlight | SUS316L All In One PC,IP69K All In One PC,Resistive PCAP Touch Panel PC |
||
Product Description
full IP66 IP67 316L stainless steel waterproof dustproof IP69K touch panel PC all in one PC
The rugged design of ITD industrial multi touch panel PC computers enable them to withstand and endure
extreme environmental conditions such as vibration, oil, and water; without faltering or malfunctioning.
Thanks to the special mounting frame, these panel PCs are easily installed into machinery, control panels
and switching cabinets. These units are ideal for applications including process visualization, machine and
operating data acquisition, order selection terminals, or even employee time and attendance tracking.
FEATURES
- Intel 6th/7th Generation Core i3/i5/i7 CPU
- Sunlight Readable LCD Screen Option
- Up to 16GB with DDR4 2133MHz memory
- Fanless Die Cast Aluminum Housing with IP65 Protected Front
- Wide Range 9~36VDC Power Input Optional
Specifications:
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 10.1”/16:10 | |
| Active Area/ Pixel Pitch | 216.96(H) ×135.6(V)mm/0.1695 × 0.1695mm | |
| Native Resolution/ Colors | 1280 x 800/16.7M | |
| Brightness/ Contrast | 350cd/㎡/800:1 | |
| Response Time/ Viewing Angle(Typical) | 25ms/85/85/85/85 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | Android Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) | Intel® Celeron J1900 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | RK3288 | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory | 2GB; 4GB Optional
| Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB | 2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB |
| Storage | 8GB: 16GB/32GB/64GB Optional | 1 x SATA, 1 x mSATA, Default to 64GB SSD | 1 x SATA, 1 x mSATA, Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD Graphics (By CPU) | Intel HD Graphics (By CPU) |
| Default Waterproof I/O | 2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional | 2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional | 2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
| LAN | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet |
| OS | Android 6.0 (Android 7.0 optional) | Windows 7/8/10, Linux | Windows 7/8/10, Linux |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 15~25W | |
| Environment Considerations | Operating Temperature | -10~60℃(-20~70℃ optional) |
| Storage Temperature | -20~70℃ | |
| Mounting | VESA Mount, Panel/Embedded Mount optional | |
| Order Information | 10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD101PPCG1IP*E2 | |
| 10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD101PPCT1IP*E2 | ||
| 10.1” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD101PPCT5IP*E2 | ||
| 10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD101PPCG1IP*J2 | ||
| 10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD101PPCT1IP*J2 | ||
| 10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD101PPCT5IP*J2 | ||
| 10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD101PPCG1IP*I3 | ||
| 10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD101PPCT1IP*I3 | ||
| 10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD101PPCT5IP*I3 | ||
| 10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD101PPCG1IP*I5 | ||
| 10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD101PPCT1IP*I5 | ||
| 10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD101PPCT5IP*I5 | ||

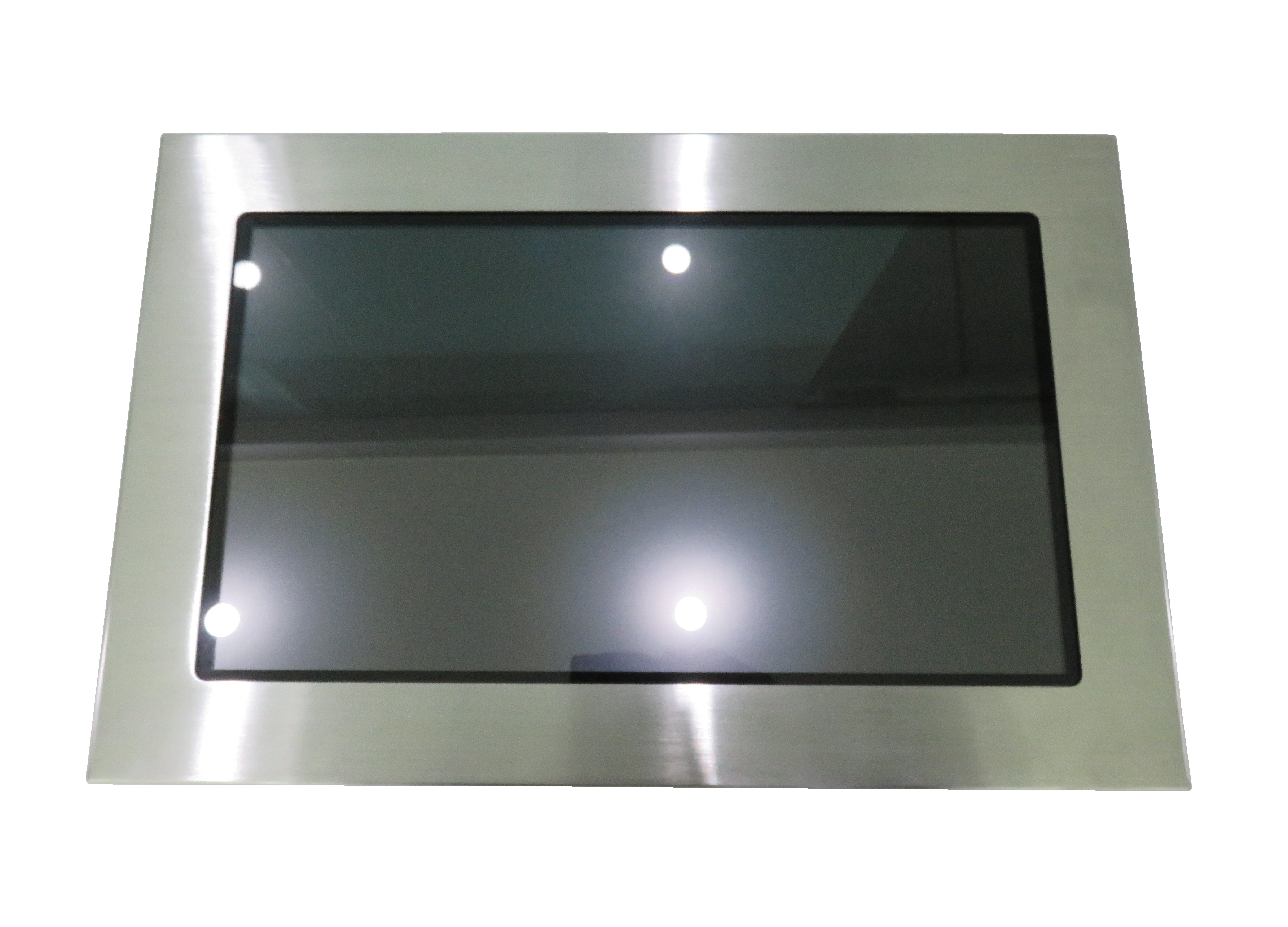

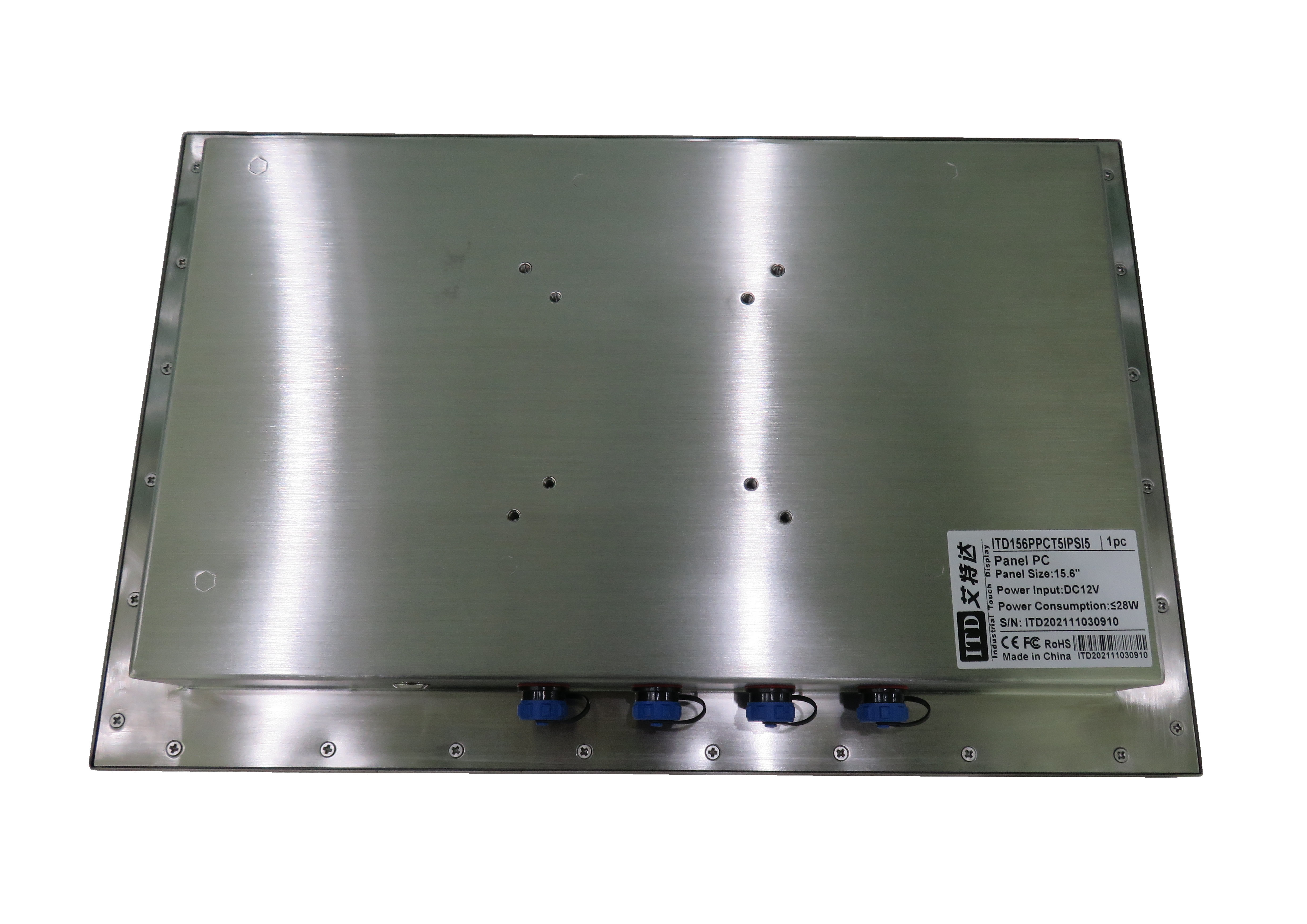

Product Display:
