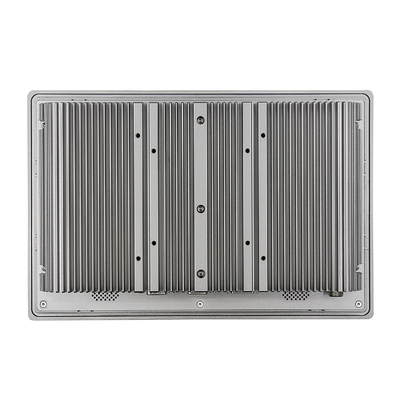

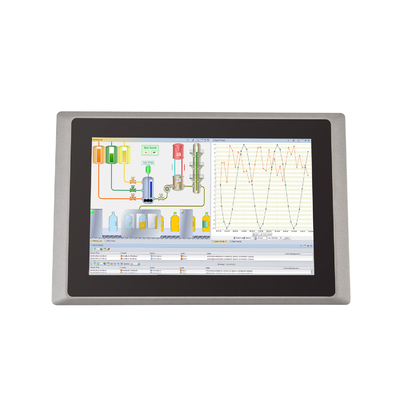

10.1" Industrial Touch Screen Panel PC Intel J6412 IP65 Front Panel Mount / VESA Mounting
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | Aluminum Housing | Housing Type | Panel Mount, VESA Mounting |
|---|---|---|---|
| Operating Temperature | -20~60℃(-20~70℃ Optional) | Operating Humidity | 10%-90% (Non Condensing) |
| IP Rate | IP65 On Front | Brightness | 400nits |
| CPU | Intel J6412 | OS Support | Windows 7, Windows 10, Windows 11 |
| MTBF | 50000h | ||
| Highlight | IP65 industrial touch screen Panel PC,10.1" industrial touch screen Panel PC,VESA Mounting IP65 Panel PC |
||
Product Description
industrial panel mounted touch screen pc 10.1" Intel J6412 IP65 front
Features of IP65 touch screen pc
- Onboard Intel® Celeron J4125/J6412 or 8th/10th intel Core i5/i7
- J4125/J6412: DDR4 SODIMM x1; Core 5/i7: DDR4 SODIMM x2
- L CD+HDMI Output, Support Dual view/Simultaneous display
- IP65 Front Bezel
- Fanless Operation
- Wide DC Support 9 ~ 36V
Applications of industrial touch screen PC
- Automation
- Transportation&Logistics
- Robots
- IoT
- Marine
- Self-Service Terminals
| Processor | lntel Celeron J4125/J6412 CPU lntel Core 8/10/11代-U i5/i7 CPU |
| System Memory | J4125/J6412: DDR4 SODIMM x1 Core i5/i7: DDR4 SODIMM x2 |
| Ethernet | 2x 2.5 GbE R J45 Intel® i225V (4 x 2.5GbE RJ45 Intel i225V) |
| I/O Port |
4 x USB2.0 , 2 x USB3.0 (J4125/J6412) 1 x Audio Line-out 2 x 8Ω 1W Audio AM P out (Optional) 1 x AT/ATX switch 1 x HDMI 1 x Expansion IO:4x3-wire COM, 1 x10bit GPIO, |
| Storage Disk Driver | 1 x M.2 2242/2260/2280 SATA 1 x SATA(2.5'' SATA ) 1 x M.2 2280 NVME |
| Expansion Slot | M.2 3042/3052 with SIM Card for 3G/4G/5G M.2 2230 WiFi/Bluetooth |
| Watchdog timer | 1~655 35S |
| OS support | Windows® 10/11, WES 10, LINUX |
| Construction | Aluminum |
| Mounting | VESA 75/ 100 Panel mount |
| Operating TMP | -20°C ~ 60 °C |
| Storage TMP | - 30°C ~ 70°C |
| Storage Humidity | 10~90% @30°C, non-condensing |
| DC Input | DC 9 ~ 36V 4-pin M12 connector |
| Display Type | 10.1" TFT-LCD |
| Max.Resolution | 1280x800( Optional 1024 x 600 ) |
| Max.Colors | 16.2M |
| Luminance | 400 cd/m² |
| Viewing Angle(CR>=10) | -8 5 ~ 8 5 ° ( H) , - 8 5 ~ 8 5 ° ( V ) |
| Back Light MTBF (hours | 30000H |
