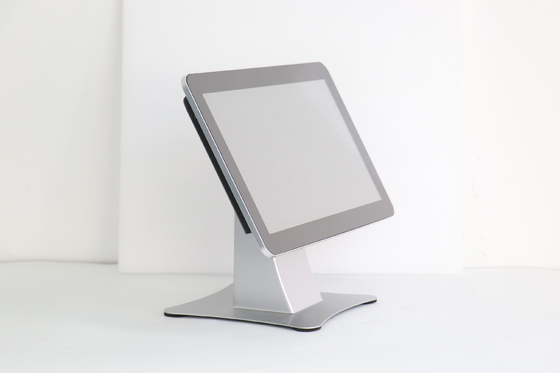

13.3" FHD Flat Panel PC RK3399 Android 11 4G RAM 32G ROM BT5.0
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD13PPCT5KE1 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution/Brightness | 1920 X 1080, 350nits | Applications | Retail, Digital Signage, Automation, Security, Robots |
|---|---|---|---|
| I/O | HDMI Input, USB Ports, SD/TF Card Slot, RJ45,COM Optional | Touch Panel | Projected Capacitive Touch Screen 10 Points |
| Mounting Method | VESA, 75x75, 100x100 | Power Input | DC 12V |
| Operating Temperature | -10~60℃ | OS | Android 11 |
| Configurations | RK3399, Octa Core, 4G RAM, 32G ROM, BT5.0 | Warranty | 2 Years |
| MTBF | 50000hours | POE | Optional |
| Highlight | 13.3" FHD flat panel pc,RK3399 flat panel pc,BT5.0 flat panel pc |
||
Product Description
flat panel pc 13.3" FHD RK3399 Android 11 4G RAM 32G ROM for retail
FEATURES OF flat panel pc
▪ Easy-to-clean, true flat front surface with edge to edge.
▪ Flexible, reliable, and ruggedized flat panel PC for retail, digital sigage, access control
▪ Ten independent touch points (with Windows 7/8/10/11, Android, Linux operating systems)
▪ High Reliability and durability with low power consumption
▪ Responds to a light touch to activate response
▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel
▪ Multiple mounting options (100mm VESA mount and side brackets)
▪ Aluminum frame and steel chassis construction designed for harsh and industrial environments
▪ CE, FCC, RoHS Compliance
OPTIONALS OF flat panel pc
•4G built-in
•Desktop stand
•High brightness, sunlight readable, optical bonding
•Non touch with tempered glass
•Web camera, speakers
PARAMETERS OF flat panel pc
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 13.3”/16:9 | |
| Active Area/ Pixel Pitch | 293.42(W) x 164.97(H)mm /0.153× 0.153mm | |
| Native Resolution/ Colors | 1920 x 1080/16.7M | |
| Brightness/ Contrast | 350cd/㎡/800:1 | |
| Response Time | 14ms | |
| Viewing Angle(Typical) | 80/80/80/80 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SPECIFICATION
| System |
CPU: RK3399 Dual Cortex-A72+Quad Cortex-A53, 64-bit CPU, CPU frequency: 1.8GHz; GPU: Mali-T860MP4 GPU, OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11 SDRAM: 4G Flash/ROM: 64G OS: Android 11/Ubuntu 18.04 Bluetooth: Bluetooth 5.0 Video Decoder: 4K VP9 and 4K 10bits H265/H264 video decoders, up to 60fps 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) Media Format: Supports RMVB, FLV, MPEG1/2/4, AVI, WMV, MOV, MP4, TS,etc Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM /H264/VP8/MVC Photo Format: Supports JPG/BMP/GIF/TIFF/PNG |
| Input / Output |

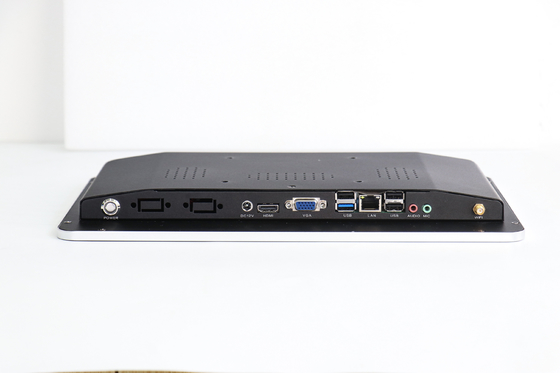

1 × HDMI; 2 × USB Max. 6× USB(2.0/3.0/OTG) 1 × TF Card Support 8~128GB; 1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E); 1 × DC 12V 2.0; Com Port optional |
| Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ |
| Relative Humidity | 10%~90% |
| Order Information | 13.3”Zero-Bezel Android Panel PC with Tempered Glass/ITD13PPCG1KE2 |
