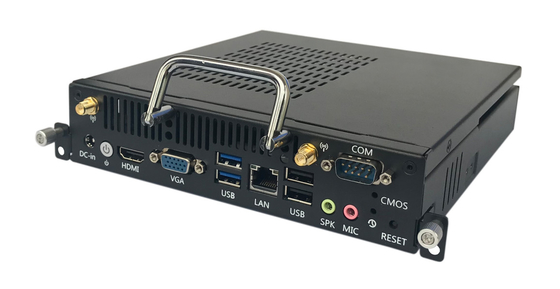

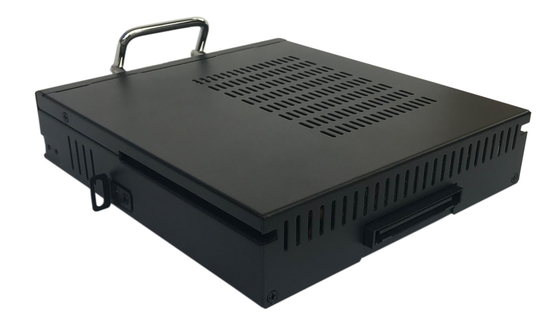

Fanless Industrial Mini PC OPS Slot In Intel Core 7300u Kabylake TPM 2.0
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| FEATURES | OPS Slot-in | Optional Processor | Intel Core 7300U Kabylake |
|---|---|---|---|
| Operating Temperature | -20 To 60 C | Dimension | 180*195*42mm |
| LAN | 1 X 10/100/1000Mbps Ethernet (WIFI Optional) (2 X 10/100/1000Mbps Optional) | Serial Ports | 1*COM, 1*DC-in, 1*VGA, 1*HDMI, 2*USB3.0, 1*LAN, 2*USB2.0, 1*SPK, 1*Mic-in, 1*80pin OPS Slot, 1*one-key Recovery System Button,1*CMOS Button,1*Reset Button |
| Power Supply | Support DC 12V /19V; DC Port: 5.5*2.5mm Recommended 12V 5A/7A/10A Or 19V 3A (or Above). | TPM 2.0 | Supported |
| OS Support | Windows 10, Windows 8, Windows 7, Linux Ubuntu | Warranty | 2 Years |
| Highlight | OPS Slot In industrial mini pc,TPM 2.0 industrial mini pc,7300u Kabylake fanless mini pc |
||
Product Description
industrial mini pc fanless OPS slot-in 7300u Kabylake TPM 2.0
Features of industrial mini pc fanless:
The OPS Slot-in industrial mini PCs support a wide variety of applications starting from static content playback and ranging to the most demanding interactive, high resolution or resource hungry applications. The 6th and 7th generation Intel processors (Skylake & Kabylake) deliver a new class of computing to power the next generation of slot-in computing. The OPS concept provides a compact and fully embedded solution ensuring that all connectors are integrated including power, video & audio signals and RS-232.
Specifications of OPS :
Specification
| Optional OPS Casings | P30N, P33N, P42N |
|
Casing Dimensions |
ITD-MNPC-xxxxU-OPS-P30N: 180*195*30mm. |
| ITD-MNPC-xxxxU-OPS-P33N: 180*195*33mm. | |
| ITD-MNPC-xxxxU-OPS-P42N: 180*195*42mm. | |
|
Optional Processor |
TDP: 15W, low power consumption, energy conservation; Support Intel 6th&7th generation FCBGA1356 Celeron, Core i3 i5 i7 CPU; 6th generation: 3855U,3955U, i3-6006U/6100U, i5-6200U/6300U, i7-6500U/6600U 7th generation: 3865U,3965U, i3-7020U/7100U/7130U, i5-7200U/7300U, i7-7500U/7600U |
| Chipset | Integrated Single Chip in CPU |
| Memory | 1*Laptop DDR4 2133/2400MHz low voltage 1.2V Memory channel, max.16GB RAM |
| Graphics | Integrated Intel HD Graphics 510/520/610/620 in CPU |
| Heat Dissipation | Thin, cool, silent fan |
| Power Supply |
Support DC 12V /19V; DC port: 5.5*2.5mm Recommended 12V 5A/7A/10A or 19V 3A (or above). |
| Ethernet |
1*Realtek 8111H Gigabit Ethernet RJ45 LAN port; Optional dual LAN ports. Support wake-on-LAN and PXE diskless boot function. |
|
Display |
Support single display, dual display copy & expansion, single display under DOS; Support H.264,3D,2K,1080P, FHD,4K, UHD display; 1*VGA interface supports Max resolution 1920*1200@60Hz; 1*HDMI 1.4 interface supports Max resolution 4096*2304@24/30Hz. |
|
External I/O ports |
1*DC-in, 1*VGA, 1*HDMI, 2*USB3.0, 1*LAN, 2*USB2.0, 1*SPK, 1*Mic-in, 1*80pin OPS slot, 1*one-key recovery system button,1*CMOS button,1*Reset button, etc. Optional 1*RS232 COM (P42N casing). |
| Built-in Pins |
VGA, HDMI, 4PIN ATX, 4*USB2.0, F_PANEL, AUTO_SW, optional RS232 COM, CLR_CMOS, GPIO, 2*FAN, etc. |
| Sound | Integrated Realtek ALC662 HD digital audio decoder,6-channel high-fidelity audio controller. |
|
Hard Disk |
1*2.5inch SATA slot for SSD or HDD; 1*SATA3.0 port for 2.5inch SSD or HDD; 1*MSATA3.0 slot (SATA, USB signals) for Mini SATA(MSATA) SSD; If you need NVME(PCIE) signal in MSATA slot, please tell us to change in advance. |
| Power Switch | 1*Power button |
| Battery | 3V CR2032 button Battery |
| WIFI |
2*WIFI holes for antenna masts. 1*Mini PCIE slot (PCIE, USB signals) supports WIFI,3G/4G/Bluetooth/GPS module. |
| COM (Serial port) |
P30N P33N casings have no COM port but have 1*RS232 COM pin. P42N casing has 1*RS232 COM port, but has no COM pin. |
| Operating Environment |
Operating Temperature: - 20℃~60℃ Working Humidity: 5%~95% Relative humidity, no condensation |
| BIOS | AMI BIOS; Support power on, timing switch, remote switch, intelligently identify devices |
| Watch Dog | Watch Dog programming supports hardware reset function (256 levels, 0~255 seconds) |
| Power On |
By default, the PC does not support “Power On and Boot”, if you need, please tell us to set in advance. The AUTO_SW pin, BIOS support the power on and boot settings. |
| Operating System | Supports Windows 10, Windows 8, Windows 7, Linux Ubuntu |
| Certificates | CE, FCC, RoHS |
| Casing Color | Black |
| Casing Material | Metal |
| LOGO | ITD/OEM |
| Installation Method | Wall hanging, desktop |
| Net Weight | 2.0KG/set |
| Accessories | Power supply, optional OPS expansion card |
| Warranty | 2 Years |
| Hard Disk Description | |||
| Intel CPU | SATA3.0 port (SATA1) | 2.5inch SATA slot (SATA2) | mSATA slot |
| When the PC uses Celeron CPU | Not support | Support | Support |
| When the PC uses Core CPU | Support | Support | Support |
