14 X GPIO Fanless Industrial Computer PC Intel Core 10th Gen Comet Lake
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mounting | Side Mounting Brackets | Optional Processor | Onboard Intel® Celeron® 8th/9th/10th I5/i7 CPU Comet Lake |
|---|---|---|---|
| Operating Temperature | -20 To 60 C | Dimension | 240*150*65mm |
| LAN | 2 X 2.5GbE RJ45 Intel I225V | I/O | 4 X USB3.0，2 X USB2.0 6 X DB9 COM（2x RS485/RS422） 3 X HDMI 14 X GPIO（7 X Input，7x Output） 1 X Power Button, 1 X Reset Button，1 X Clear CMOS Button 1 X 3pin Wire，DC 9-36V Input 1 X Aduio，1 X Min-in 1 X AT/ATX 2 X Antenna Interface For WIFI/3G/4G |
| Power Supply | DC 9-36V Input | MTBF | 50000H |
| OS Support | Windows 11/10 Windows 8, Windows 7, Linux Ubuntu | Warranty | 2 Years |
| GPIO | 14 X GPIO（7 X Input，7x Output） | ||
| Highlight | 14 x GPIO fanless industrial computer,Side mounting fanless industrial computer,36V fanless industrial pc |
||
Product Description

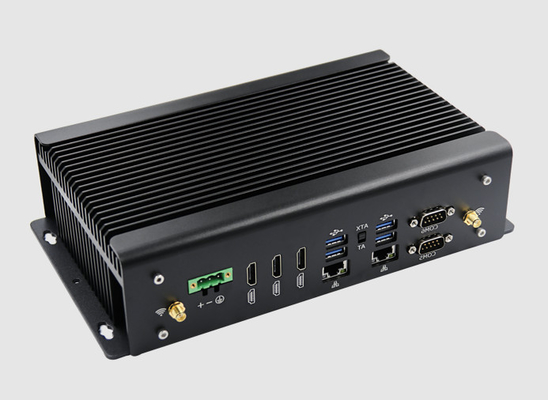

Industrial fanless computer PC GPIO Intel Core 10th gen. Comet Lake
Features of Industrial fanless computer PC:
- Onboard Intel® Celeron® i5/i7 CPU
- DDR4 SODIMM x2,Up to 32GB
- 6 x RS-232 COM (2*RS485/RS442)
- 2 x GbE RJ45 Intel® i225V
- Wide DC Support 9 ~ 36V
- Fanless Operation
Specifications of Industrial fanless computer PC:
Specifications
Processor: Onboard Intel® Celeron® 8th/9th/10th i5/i7 CPU
System memory: DDR4 SODIMM x2,up to 32GB
Ethernet: 2 x 2.5GbE RJ45 Intel i225V

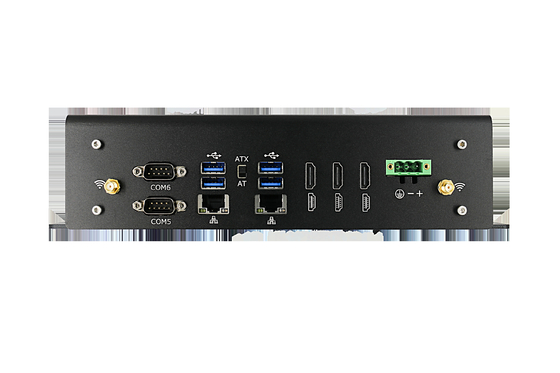

I/O Port: 4 x USB3.0,2 x USB2.0 6 x DB9 COM(2x RS485/RS422)
3 x HDMI 14 x GPIO(7 x input,7x output)
1 x Power Button, 1 x Reset Button,
1 x Clear CMOS Button 1 x 3pin wire,
DC 9-36V input
1 x aduio,1 x Min-in 1 x AT/ATX
2 x Antenna interface for WIFI/3G/4G Storge Disk Driver
1x MSATA 1x M.2 NVME 2280
1x HDD/SSD Expansion Slot Mini-PCIe x1 full size with SIM Card for 3G/4G Mini-PCIe x1 half size for WIFI/BLT
OS Support: Windows® 10,WES 10,LINUX
Watchdog timer: 1~255 Levels
Power: DC input 9-36V

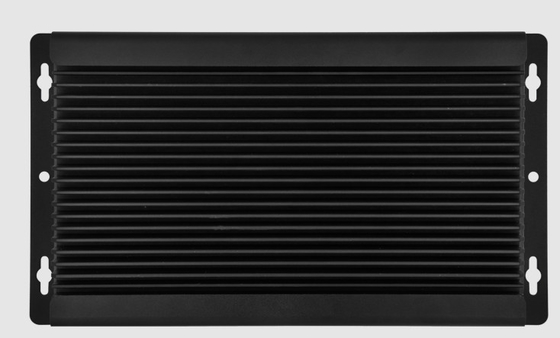

Mechanical Construction: Aluminum Mounting Desktop/ wall mounted
Dimension: 240 x 150 x 65 mm
Net Weight: 2 Kg
Environmental
Operating: TEMP -30℃ to +70℃
Storage: TEMP -20℃ to +60℃
Storage: Humidity 10%~90% @30℃,non-condensing
Displays of industrial computer PC:
