Fanless Compact Industrial Mini PC Embedded Computer 4G Intel I3 6157U Skylake

  • Fanless Compact Industrial Mini PC Embedded Computer 4G Intel I3 6157U Skylake
  • Fanless Compact Industrial Mini PC Embedded Computer 4G Intel I3 6157U Skylake
  • Fanless Compact Industrial Mini PC Embedded Computer 4G Intel I3 6157U Skylake
  • Fanless Compact Industrial Mini PC Embedded Computer 4G Intel I3 6157U Skylake
  • Fanless Compact Industrial Mini PC Embedded Computer 4G Intel I3 6157U Skylake
Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number ITD-MNPC-J6412-GEHL1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,wooden case,pallet
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mounting VESA, Side Brackets Optional Processor Onboard Intel® I3-6157U Skylake
Operating Temperature -30 To 70℃ Dimension 180 X 120 X 54 Mm
LAN 2 X GbE RJ45 Intel I225 I/O 4 X USB3.0 2 X USB2.0 6 X DB9 COM（ Only RS232） 1 X HDMI，1 X VGA 1 X Power Button DC 12V Input 1 X Audio ，1 X Mic-in 2 X Antenna Interface For WIFI/3G/4G
Power Supply DC 12V MTBF 50000H
Expansion Slot Mini-PCIe X 1 Half Size ,for Wifi/BLT Mini-PCIe X1 Full Size, With SIM Card For 3G/4G Warranty 2 Years
Video Outputs 1 X HDMI，1 X VGA
Highlight

4G fanless embedded computers

,

I3 6157U industrial mini PC

,

Compact fanless embedded computers
Leave a Message
Product Description

Fanless compact industrial mini PC computer 4G Intel I3 6157U Skylake



Features of Fanless industrial mini PC:



  • Intel Core I3-6157U Skylake(DDR4, up to16GB)
  • 6xRS-232 COM(only RS232)
  • 2xIntel i225 2.5G
  • Fanless Operation
  • DC 12V Support
  • 4G supported



Specifications of Fanless industrial mini PC:



Specifications
System
Processor i3-6157U
System memory DDR4 SODIMM
up to 16GB
OS Support
Windows 7/10
WES 7/10
Linux
I/O Port
4 x USB3.0
2 x USB2.0
6 x DB9 COM( Only RS232)
1 x HDMI,1 x VGA
1 x Power Button
DC 12V input
1 x Audio ,1 x Mic-in
2 x Antenna interface for WIFI/3G/4G
Ethernet 2 x GbE RJ45 Intel i225
Storge Disk Driver 1x MSATA
1x HDD/SSD
Expansion Slot Mini-PCIe x 1 half size ,for wifi/BLT
Mini-PCIe x1 full size, with SIM Card for 3G/4G
Watchdog timer 255 Levels
Adapter
DC input 12V
Mechanical
Construction Aluminum
Mounting Desktop/ wall mounted
Dimension 180 x 120 x 54 mm
Net Weight 1.0 Kg
Environmental
Operating TEMP -30℃ to +70℃
Storage TEMP -20℃ to +60℃
Storage Humidity 10%~90% @30℃,non-condensing





Displays of Fanless industrial mini PC:

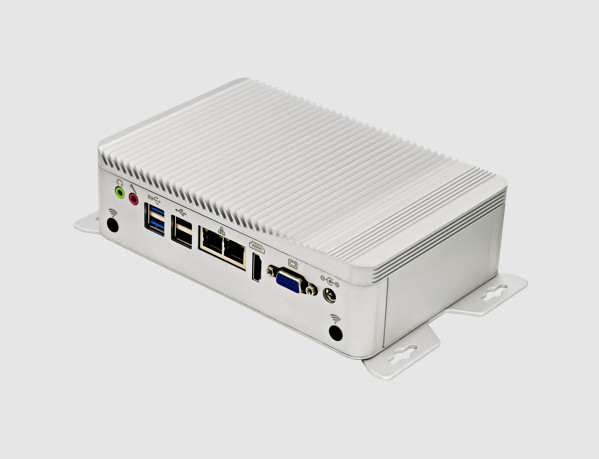

Fanless Compact Industrial Mini PC Embedded Computer 4G Intel I3 6157U Skylake 0

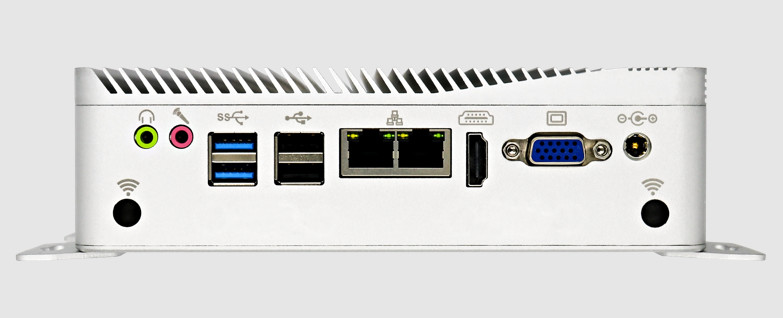

Fanless Compact Industrial Mini PC Embedded Computer 4G Intel I3 6157U Skylake 1

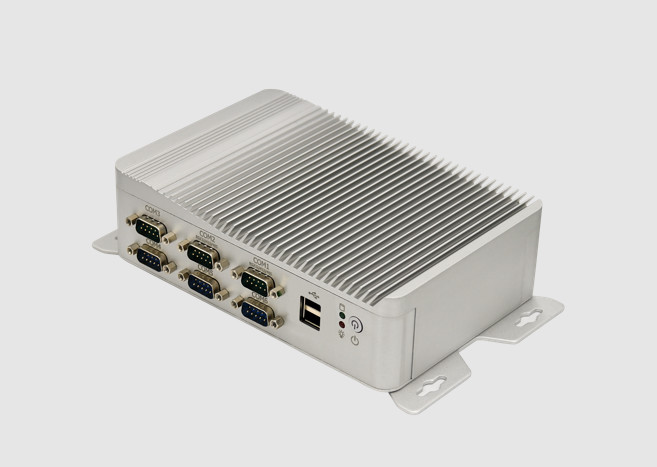

Fanless Compact Industrial Mini PC Embedded Computer 4G Intel I3 6157U Skylake 2

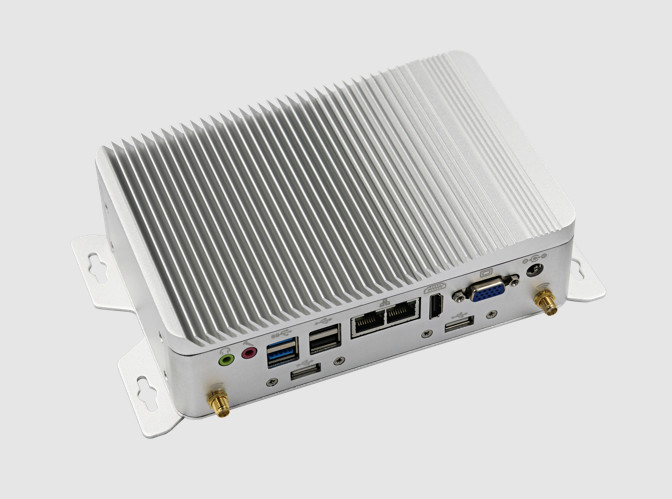

Fanless Compact Industrial Mini PC Embedded Computer 4G Intel I3 6157U Skylake 3
