18.5" Industrial Rugged Panel PC Stainless Steel J6412 Elkhart Lake
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel J6412 Elkhart Lake, Inte I3/i5/i7 Optional | Material | Stainless Steel Housing 304, 316L |
|---|---|---|---|
| Screen Diagonal | 18.5" | Physical Resolution | 1366 X 768, 1920X1080 Optional |
| IP Rate | IP67, IP69K Optional | Operating Temp | -10 To 60℃, -20 To 70℃ Optional |
| Touch Screen | Resistive/capacitive Touch | OS | Windows 10, 11, Linux Supported |
| TPM 2.0 | TPM 2.0 Supported | ||
| Highlight | 18.5" Rugged Panel PC,IP69K Stainless Panel PC,J6412 Panel PC Stainless Steel |
||
Product Description

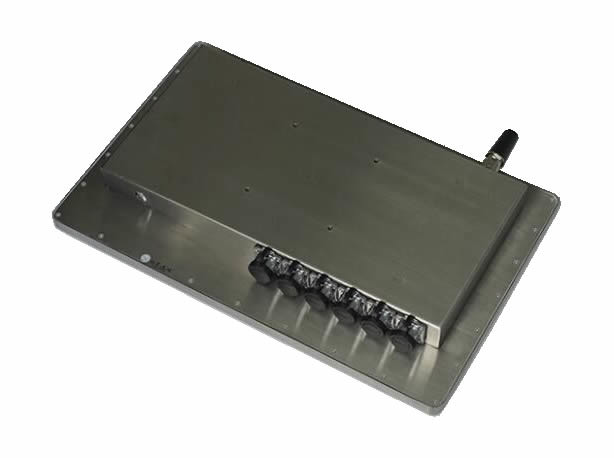

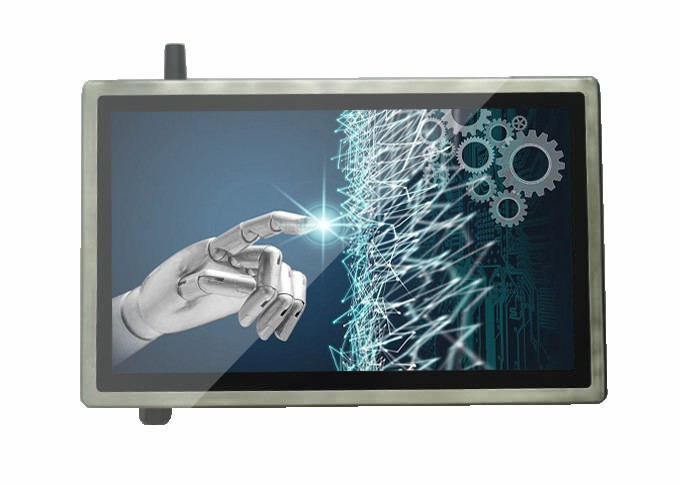

18.5" Industrial Rugged Panel PC Stainless Steel J6412 Elkhart Lake
Waterproof Industrial Rugged Stainless Panel PC 18.5" J6412 Elkhart Lake
This full IP67 waterproof stainless steel panel PC with Intel J6412 Elkhart Lake is a rugged and durable industrial computer designed for use in harsh and demanding environments. The computer is encased in a fully-sealed stainless steel enclosure, which provides complete protection against dust, water, and other contaminants. With its IP67 rating, the panel PC is able to withstand exposure to extreme temperatures, shock, and vibration, making it suitable for use in a wide range of industrial and outdoor applications.
FEATURES
-
Robust and durable design: These panel PCs are designed to withstand harsh environments, making them suitable for use in industrial and outdoor applications.
-
Waterproof and dustproof: These panel PCs are rated IP65, IP66, IP67, or higher, which means they are protected from dust and can withstand being submerged in water.
-
High-performance computing: Waterproof stainless steel panel PCs have powerful processors, memory, and storage, which makes them ideal for running demanding applications.
-
Touchscreen display: These panel PCs feature high-quality touchscreen displays that are responsive and easy to use, even in wet or dirty conditions.
-
Multiple connectivity options: These panel PCs offer a range of connectivity options, including USB, Ethernet, and serial ports, which make them compatible with a variety of devices and peripherals.
-
Fanless design: The fanless design of these panel PCs makes them quiet and reliable, while also reducing the risk of dust and debris entering the system.
-
Long lifespan: Waterproof stainless steel panel PCs are designed to have a long lifespan and require minimal maintenance, which makes them a cost-effective solution for industrial and outdoor applications.
DISPLAY
|
Panel |
Cell Type/Glass Surface |
TFT |
|
Size/ Aspect Ratio |
18.5”/16:9 |
|
|
Active Area/ Pixel Pitch |
412.6(H) x 233.2(V)mm/0.300× 0.300mm |
|
|
Native Resolution/ Colors |
1366 x 768(1920 x 1080 optional)/16.7M |
|
|
Brightness/ Contrast |
250cd/㎡/1000:1 |
|
|
Response Time/ Viewing Angle(Typical) |
14ms/85/85/80/80 |
|
|
Light Source |
LED Backlight with 50000Hours’Lifetime |
SYSTEM
|
Item |
Android Solution |
X86 Solution 1 |
X86 Solution 2 |
|
CPU |
ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) |
Intel® Celeron J6412 2.0GHz,Elkhart Lake |
Intel® Core i3/i5/i7 |
|
Chipset |
RK3288 |
Intel Bay Trail SoC |
Intel SoC Chipset |
|
Memory |
2GB; 4GB Optional
|
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB |
2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB |
|
Storage |
8GB: 16GB/32GB/64GB Optional |
1 x SATA, 1 x mSATA, Default to 64GB SSD |
1 x SATA, 1 x mSATA, Default to 64GB SSD |
|
Graphics |
Supports max. 4K resolution |
Intel HD Graphics (By CPU) |
Intel HD Graphics (By CPU) |
|
Default Waterproof I/O |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
|
LAN |
1 x 10/100/1000Mbps Ethernet |
1 x 10/100/1000Mbps Ethernet |
1 x 10/100/1000Mbps Ethernet |
|
OS |
Android 6.0 (Android 7.0 optional) |
Windows 7/8/10, Linux |
Windows 7/8/10, Linux |
GENERAL
|
Power |
Input Voltage |
DC 12V 2.0 |
|
Operation/Power Saving |
25~45W |
|
|
Environment Considerations |
Operating Temperature |
-10~60℃ |
|
Storage Temperature |
-20~70℃ |
|
|
Mounting |
VESA Mount, Panel/Embedded Mount optional |
|
|
Order Information |
18.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD18PPCG1IP*E2 |
|
|
18.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD18PPCT1IP*E2 |
||
|
18.5” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD18PPCT5IP*E2 |
||
|
18.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD18PPCG1IP*J2 |
||
|
18.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD18PPCT1IP*J2 |
||
|
18.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD18PPCT5IP*J2 |
||
|
18.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD18PPCG1IP*I3 |
||
|
18.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD18PPCT1IP*I3 |
||
|
18.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD18PPCT5IP*I3 |
||
|
18.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD18PPCG1IP*I5 |
||
|
18.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD18PPCT1IP*I5 |
||
|
18.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD18PPCT5IP*I5 |
||
Product Display
