15.6" Rugged Stainless Steel Industrial Panel PC For Outdoor Use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel J1900/J4125/J6412, Inte I3/i5/i7 Optional | Material | Stainless Steel Housing 304, 316L |
|---|---|---|---|
| Screen Diagonal | 15.6" | Physical Resolution | 1920X1080 |
| IP Rate | IP67, IP69K Optional | Operating Temp | -10 To 60℃, -20 To 70℃ Optional |
| Touch Screen | Resistive/capacitive Touch | OS | Windows 7, 10, 11, Linux Supported |
| MTBF | 50000hours | Applications | Industril And Outdoor Use |
| Highlight | 15.6" Industrial Panel PC,Intel J1900 Industrial Panel PC,Intel J6412 Outdoor Panel PC |
||
Product Description

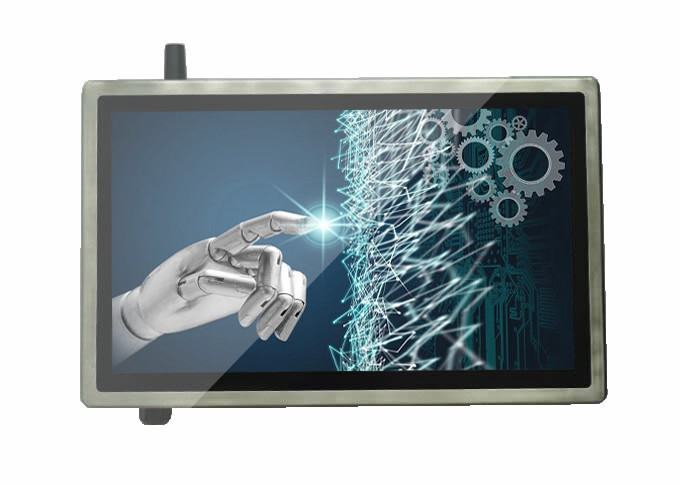

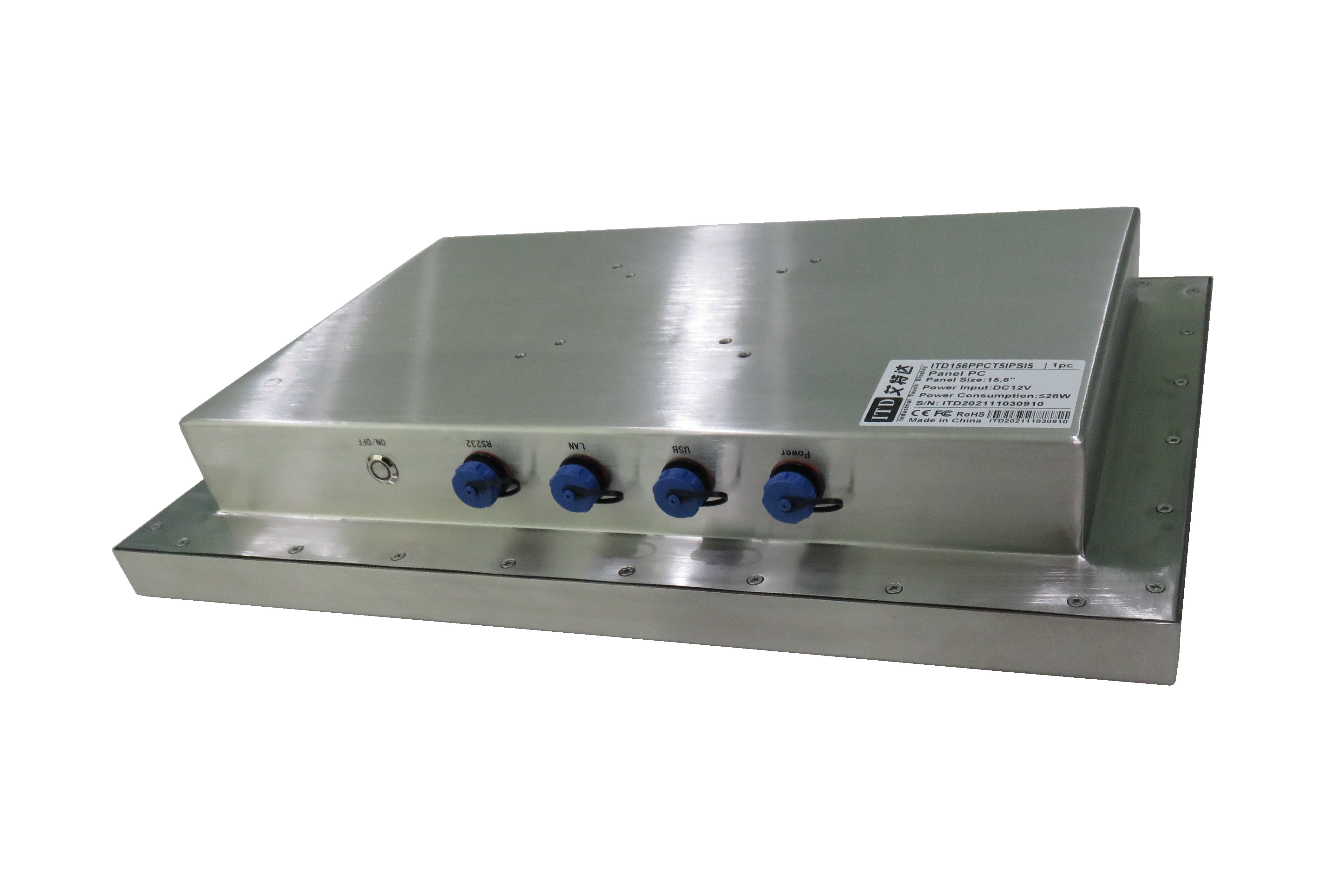

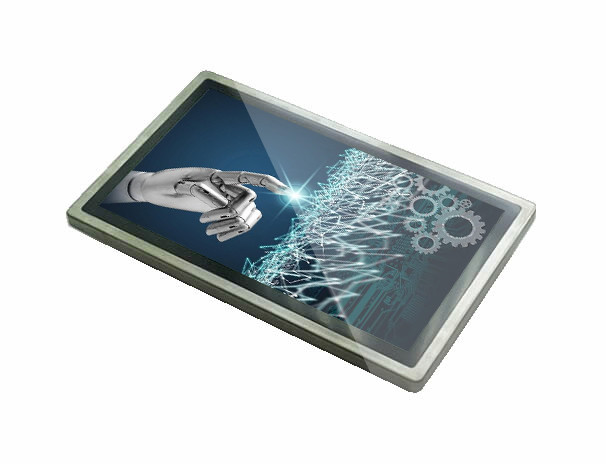

15.6" Rugged Stainless Steel Industrial Panel PC For Outdoor Use
15.6" Rugged Stainless Steel Panel PC for Industrial and Outdoor Use
The 15.6" rugged stainless steel panel PC is equipped with a high-performance processor, ample memory, and a variety of connectivity options, including Ethernet, USB, and serial ports. It also features a bright, high-resolution display with touch-screen capabilities, allowing users to interact with the computer easily and intuitively.
The full IP67 stainless steel panel PC is ideal for use in environments such as food processing plants, pharmaceutical manufacturing facilities, and outdoor installations where exposure to dust, water, and other contaminants is a concern. With its rugged design and high-performance capabilities, it provides reliable and efficient computing power in even the harshest of conditions.
FEATURES of stainless steel panel PC
- Robust and durable stainless steel enclosure
- IP65 or higher waterproof rating for protection against water and dust
- High-brightness, sunlight-readable touchscreen display
- Anti-corrosion and rust-resistant surface for use in harsh environments
- Flexible mounting options for easy installation
- Wide operating temperature range for use in extreme conditions
- Shock and vibration-resistant design for reliability in rugged applications
- Fanless design for quiet operation and minimal maintenance
- Built-in wireless connectivity options for seamless data transfer
- Optional features such as RFID, barcode scanners, and fingerprint readers for enhanced security and functionality.
Specifiction of of stainless steel panel PC
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 15.6”/16:9 | |
| Active Area/ Pixel Pitch | 344.16(H)x 193.59(V)mm/0.17925 × 0.17925mm | |
| Native Resolution/ Colors | 1920 x 1080/262K | |
| Brightness/ Contrast | 1000cd/㎡/800:1 | |
| Response Time/ Viewing Angle(Typical) | 30ms/85/85/85/85 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | Android Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) | Intel® Celeron J1900 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | RK3288 | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory |
2GB; 4GB Optional
|
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB |
2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB |
| Storage | 8GB: 16GB/32GB/64GB Optional | 1 x SATA, 1 x mSATA, Default to 64GB SSD | 1 x SATA, 1 x mSATA, Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD Graphics (By CPU) | Intel HD Graphics (By CPU) |
| Default Waterproof I/O |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
| LAN | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet |
| OS | Android 6.0 (Android 7.0 optional) | Windows 7/8/10, Linux | Windows 7/8/10, Linux |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 25~50W | |
| Environment Considerations | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ | |
| Mounting | VESA Mount, Panel/Embedded Mount optional | |
| Order Information | 15.6” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD156PPCG1HBIP*E2 | |
| 15.6” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD156PPCT1HBIP*E2 | ||
| 15.6” 1000nits Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD156PPCT5HBIP*E2 | ||
| 15.6” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD156PPCG1HBIP*J2 | ||
| 15.6” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD156PPCT1HBIP*J2 | ||
| 15.6” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD156PPCT5HBIP*J2 | ||
| 15.6” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD156PPCG1HBIP*I3 | ||
| 15.6” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD156PPCT1HBIP*I3 | ||
| 15.6” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD156PPCT5HBIP*I3 | ||
| 15.6” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD156PPCG1HBIP*I5 | ||
| 15.6” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD156PPCT1HBIP*I5 | ||
| 15.6” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD156PPCT5HBIP*I5 | ||
Display of of rugged panel PC
