17" IP69k Rugged Touch Screen PC Rating Stainless Steel Enclosure
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD17PPCT5IPSxx-69K |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,wooden case,pallet |
| Delivery Time | a month |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 10000 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel J1900/J4125/J6412, Inte I3/i5/i7 Optional | Material | Stainless Steel Housing 304, 316L |
|---|---|---|---|
| Screen Diagonal | 17" | Waterproof I/Os | 1 X COM, 2 X USB, 1 X LAN, 1x DC M12 Connectors |
| IP Rate | IP69K Ratings | Operating Temp | -10 To 60℃, -20 To 70℃ Optional |
| Touch Screen | Resistive/capacitive Touch | Brightness | 350nits, 1000nits Optional |
| MTBF | 50000hours | Applications | Pharmacy Industry, Food And Beverage Processing Plants |
| Highlight | IP69k Rugged Touch Screen PC,IP69k Industrial Tablet PC Touch Screen,SS316L Rugged Touch Screen PC |
||
Product Description

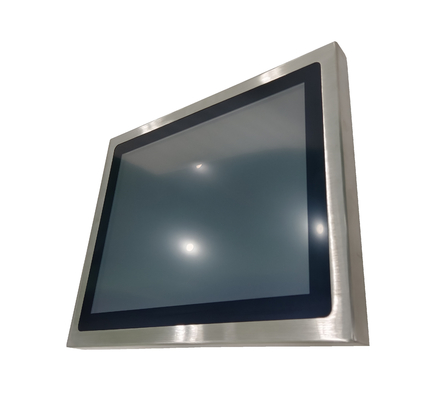

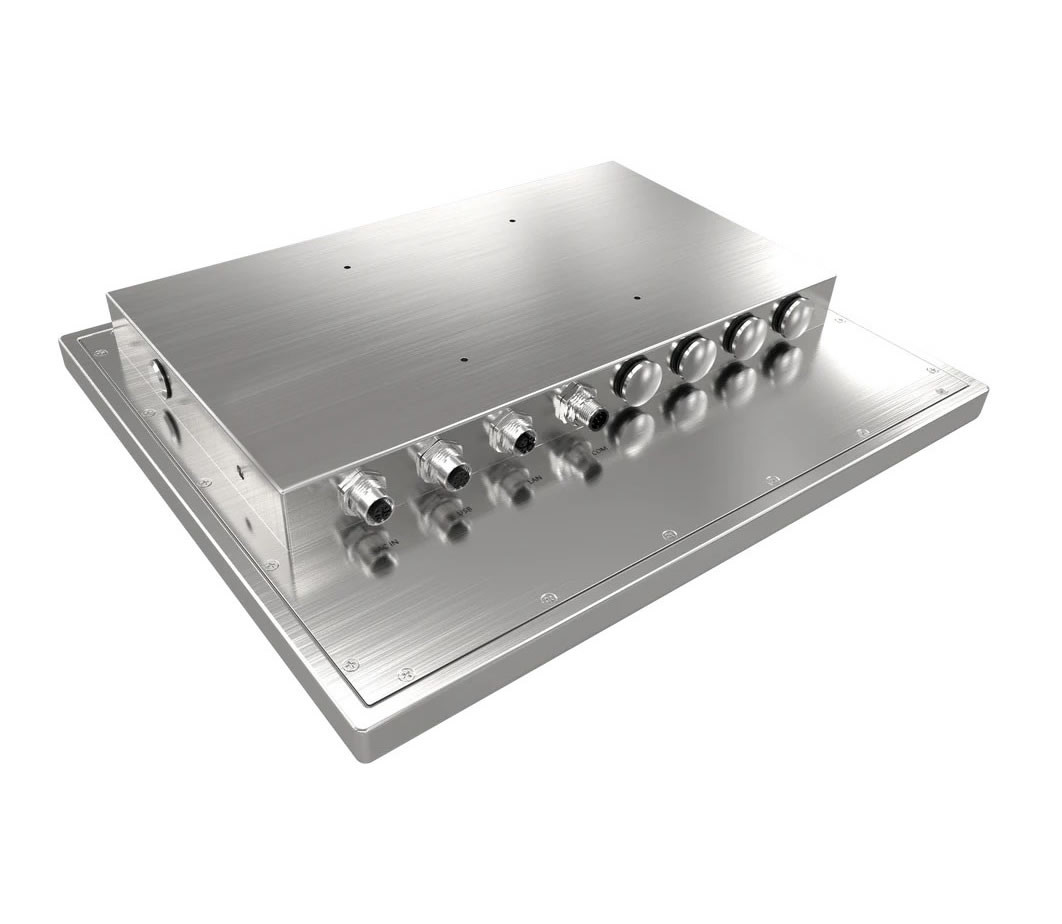

17" IP69k Rugged Touch Screen PC Rating Stainless Steel Enclosure
rugged touch screen pc ip69k rating stainless steel enclosure 17"
ITD's 17" IP69K ratings stainless steel panel PC features a touch screen interface for easy use, and it is commonly used in food and beverage processing plants, pharmaceutical manufacturing facilities, and other industrial settings where hygiene and cleanliness are critical. The PC can also withstand extreme temperatures, making it ideal for use in outdoor or refrigerated environments. The IP69K stainless steel panel PC can be customized to meet specific industrial requirements, including CPU, memory, and storage configurations, as well as optional features such as RFID readers, barcode scanners, and more. The device is typically designed to meet industry standards for shock and vibration resistance, and can be easily integrated into existing systems to support data collection, control, and automation.
Applications of IP69K sratings panel PC
- Food and Beverage Processing
- Pharmaceutical Manufacturing
- Chemical Processing
- Medical and Healthcare
- Marine and Offshore
Specifiction of of rugged touch screen panel PC
| Panel | Cell Type/Glass Surface | TFT LCD |
| Aspect Ratio/Size | 17” 4:3 | |
| Active Area | 337.92(H) x 270.336(V)mm | |
| Pixel Pitch | 0.264(H) x 0.264(V)mm | |
| Native Resolution | 1280 x 1024 | |
| Contrast | 1000:1 | |
| Colors | 16.7M | |
| Contrast Ratio | 350nits | |
| Response Time | 3.8/1.2ms | |
| Viewing Angle (Typical) | 85/85/80/80 | |
| Light Source | LED Backlight with 50000Hours’ Lifetime | |
| System | CPU | Intel® Baytrail Celeron Quad Core J1900 2.0GHz Processor |
| BIOS | AMI | |
| Chipset | Intel® Baytrail SOC CPU Integrated | |
| Memory | 2 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB | |
| Graphic Chipset | CPU integrated graphics HD and support 1080p | |
| Storage | SSD/HDD | |
| I/O | Serial Ports | 1x COM (Optional) |
| USB Ports | 2 x USB 2.0(Waterproof Connector and Cable) | |
| Power Port | 1 x 12V DC Jack (Waterproof Connector and Cable) | |
| LAN | 1 x 10/100/1000Mbps Ethernet (Waterproof Connector and Cable) | |
| WIFI | Built-in, 802.11a/b/g/h (optional) | |
| Touch Screen | Type | Projected Capacitive Touch Screen with 10 independent touch points |
| Response Time | ≤5ms | |
| Transparency | ≥85% | |
| Lifetime | ≥50,000,000 times/click | |
| OS Support | Windows CE/XP/7/8/10, Linux, Mac, Android | |
| General | Power Input | DC 12V |
| Power Switch | Optional | |
| Mounting | 100 x 100mm VESA Mount | |
| Operation/Power Saving | 20W | |
| Operating Temperature | -10~60℃ | |
| Storage Temperature | -20~70℃ | |
| OS Support | Windows 7/ Windows 8/Window 10/ Linux | |
Display of of rugged touch screen PC
