350nits 1000nits 1500nits Touch Screen Panel PC For Marine Offshore
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel J1900/J4125/J6412, Inte I3/i5/i7 Optional | Material | Stainless Steel Housing 304, 316L |
|---|---|---|---|
| Screen Diagonal | 27" | Waterproof I/Os | 1 X COM, 2 X USB, 1 X LAN, 1x DC M12 Connectors |
| IP Rate | IP66, IP67 Rated | Operating Temp | -20 To 60℃ |
| Touch Screen | Capacitive Touch, IR Touch | Brightness | 350nits, 1000nits, 1500nits Optional |
| MTBF | 50000hours | Applications | Marine And Offshore |
| Highlight | 1500nits Touch Screen Panel P,350nits Touch Screen Panel PC,1500nits All In One PC Touch Screen |
||
Product Description

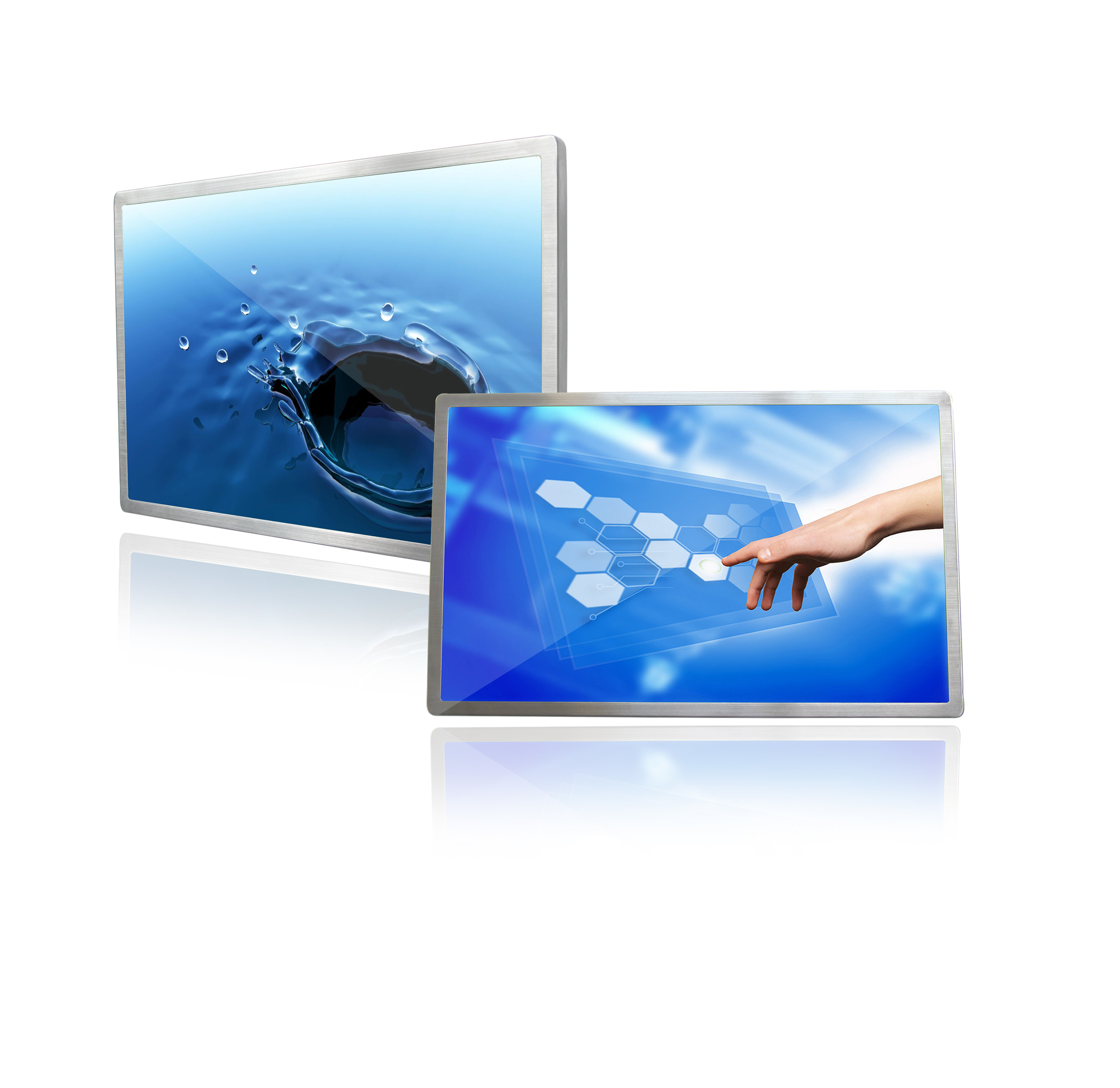

350nits 1000nits 1500nits Touch Screen Panel PC For Marine Offshore
waterproof stainless steel rugged touch screen PC 27" for marine and offshore
ITD's waterproof IP67 stainless steel panel PC is a type of computer system that is designed to be used in harsh environments where moisture, dust, and other contaminants may be present. It is built using stainless steel and other materials that are resistant to corrosion and rust.
The PC is also equipped with a waterproof enclosure that can protect it from water and other liquids. The enclosure usually has an IP65 or higher rating, which means it can withstand water splashes and jets, as well as dust and dirt. The panel PC is also designed to be easy to clean and maintain, making it ideal for use in environments where hygiene is critical, such as food processing plants, hospitals, and laboratories.
Applications of rugged touch screen PC
- Food and Beverage Processing
- Pharmaceutical Manufacturing
- Chemical Processing
- Medical and Healthcare
- Marine and Offshore
Specifiction of of stainless steel panel PC
| Panel | Cell Type/Glass Surface | TFT LCD |
| Aspect Ratio/Size | 24” 16:9 | |
| Active Area | 527.04(H) x 296.46(V)mm | |
| Pixel Pitch | 0.2745(H) x 0.2745(V)mm | |
| Native Resolution | 1920 x 1080 | |
| Contrast | 1000:1 | |
| Colors | 16.7M | |
| Contrast Ratio | 300nits | |
| Response Time | 14ms | |
| Viewing Angle (Typical) | 89/89/89/89 | |
| Light Source | LED Backlight with 50000Hours’ Lifetime | |
| System | CPU | Intel® Baytrail Celeron Quad Core J1900 2.0GHz Processor |
| BIOS | AMI | |
| Chipset | Intel® Baytrail SOC CPU Integrated | |
| Memory | 2 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB | |
| Graphic Chipset | CPU integrated graphics HD and support 1080p | |
| Storage | SSD/HDD | |
| I/O | Serial Ports | 1x COM (Optional) |
| USB Ports | 2 x USB 2.0(Waterproof Connector and Cable) | |
| Power Port | 1 x 12V DC Jack (Waterproof Connector and Cable) | |
| LAN | 1 x 10/100/1000Mbps Ethernet (Waterproof Connector and Cable) | |
| WIFI | Built-in, 802.11a/b/g/h (optional) | |
| Touch Screen | Type | Projected Capacitive Touch Screen with 10 independent touch points |
| Response Time | ≤5ms | |
| Transparency | ≥85% | |
| Lifetime | ≥50,000,000 times/click | |
| OS Support | Windows CE/XP/7/8/10, Linux, Mac, Android | |
| General | Power Input | DC 12V |
| Power Switch | Optional | |
| Mounting | 100 x 100mm VESA Mount | |
| Operation/Power Saving | 50W | |
| Operating Temperature | -10~60℃ | |
| Storage Temperature | -20~70℃ | |
| OS Support | Windows 7/ Windows XP/ Windows 8/Window 10/ Linux | |
| Order Information | 24” Stainless Steel Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD24PPCG1IPSJ1 | |
| 24” Stainless Steel Full IP65/IP66 Panel PC J1900 with IR Touch: ITD24PPCT2IPSJ1 | ||
| 24” Stainless Steel Full IP67 Panel PC J1900 with Tempered Glass: ITD24PPCG1IPSJ7 | ||
| 24” Stainless Steel Full IP67 Panel PC J1900 with IR Touch: ITD24PPCT2IPSJ7 | ||
| 24” Stainless Steel Full IP67 Panel PC J1900 with PCAP Touch: ITD24PPCT5IPSJ7 | ||
| 24” Aluminum Alloy Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD24PPCG1IPAJ1 | ||
| 24” Aluminum Alloy Full IP65/IP66 Panel PC J1900 with IR Touch: ITD24PPCT2IPAJ1 | ||
| 24” Aluminum Alloy Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD24PPCT5IPAJ1 | ||
| 24” Aluminum Alloy Full IP67 Panel PC J1900 with Tempered Glass: ITD24PPCG1IPAJ7 | ||
| 24” Aluminum Alloy Full IP67 Panel PC J1900 with IR Touch: ITD24PPCT2IPAJ7 | ||
| 24” Aluminum Alloy Full IP67 Panel PC J1900 with PCAP Touch: ITD24PPCT5IPAJ7 | ||
| 24” Steel Full IP65/IP66 Panel PC J1900 with IR Touch: ITD24PPCT2IPXJ1 | ||
| 24” Steel Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD24PPCT5IPXJ1 | ||
| 24” Steel Full IP67 Panel PC J1900 with Tempered Glass: ITD24PPCG1IPXJ7 | ||

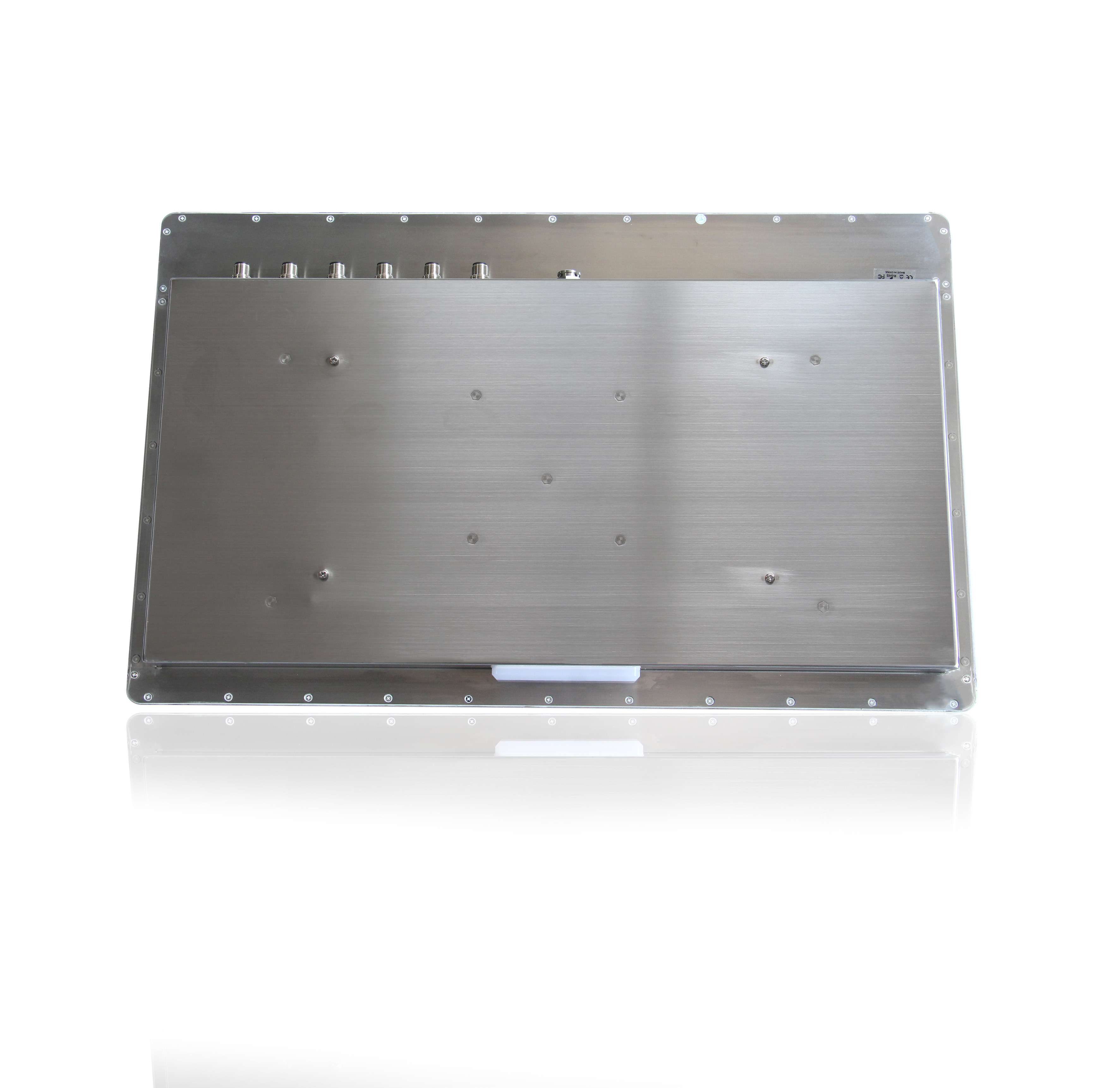

Display of of stainless steel PC
