Fanless Rugged Panel PC 15 inch Fully Sealed Touch Computer
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel J1900/J4125/J6412, Inte I3/i5/i7 Comet Lake | Material | Stainless Steel Housing 304, 316L |
|---|---|---|---|
| Screen Diagonal | 15" | Waterproof I/Os | 1 X COM, 2 X USB, 1 X LAN, 1x DC M12 Connectors |
| IP Rate | IP65, IP66, IP67 | Operating Temp | -10 To 60℃ |
| Touch Screen | Resistive/capacitive Touch | Brightness | 350nits, 1000nits Optional |
| MTBF | 50000hours | Applications | Pharmacy Industry, Food And Beverage Processing Plants |
| Highlight | Fanless Rugged Panel PC,1000nits Rugged Panel PC,350nits All In One Panel PC |
||
Product Description

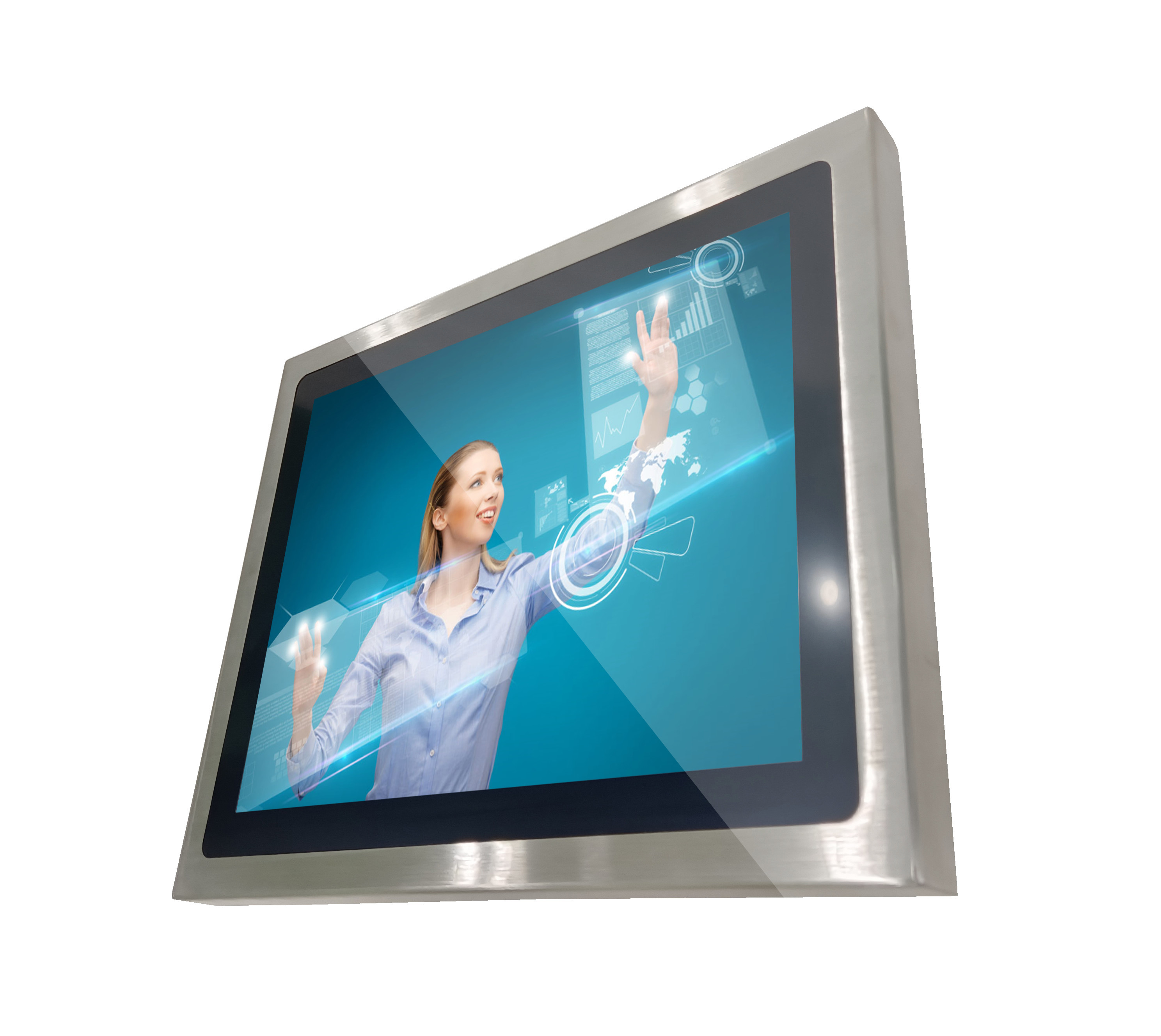

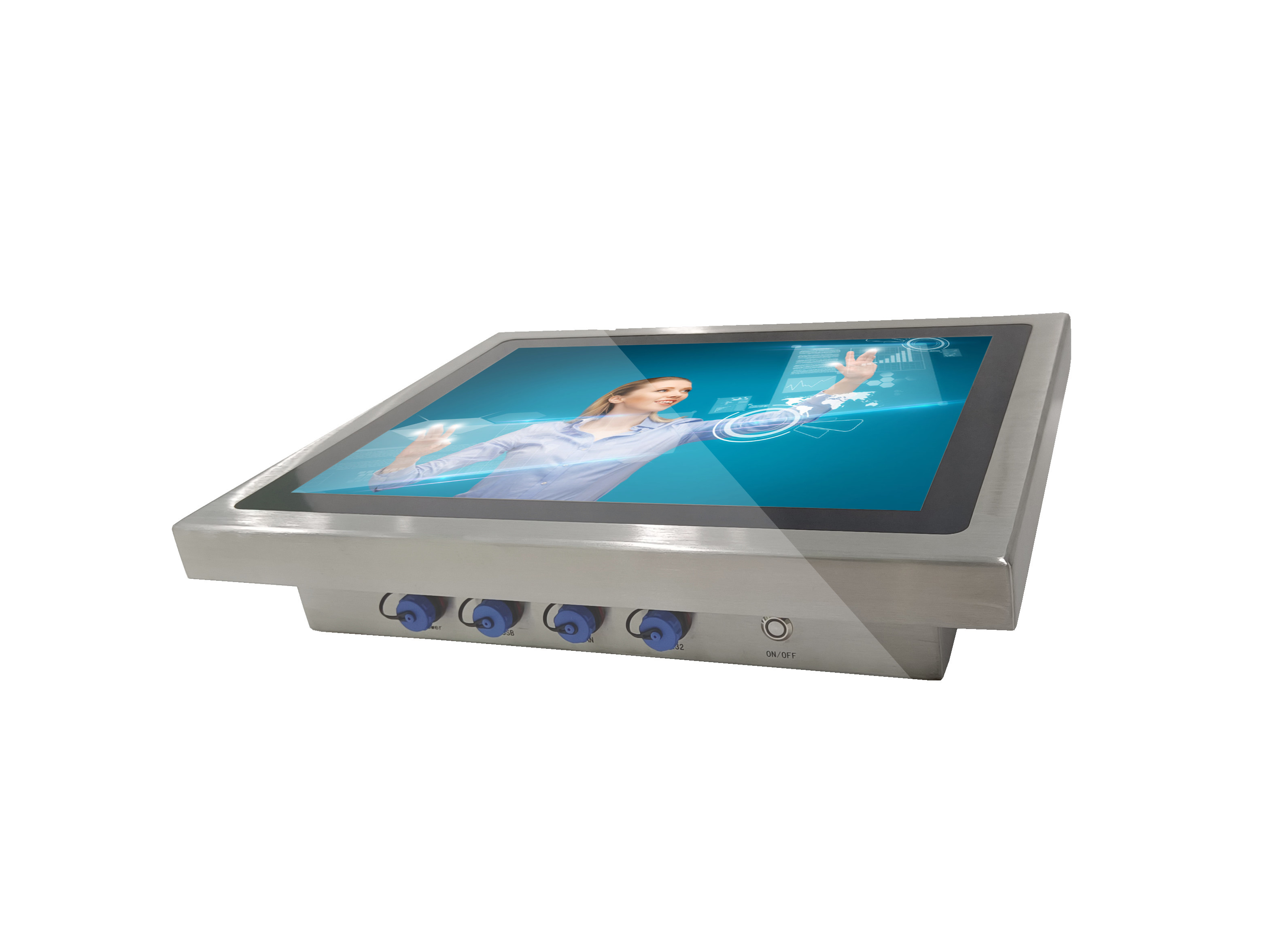

Fanless Rugged Panel PC 15 Inch Fully Sealed Touch Computer
fanless all in one pc 15" waterproof fully sealed touch computer Comet Lake
ITD's 17" fanless all in one oc waterproof IP67 touch screen computer is a type of computer that is designed to be resistant to water and dust ingress. It is built with a ruggedized enclosure that can withstand harsh environments and has been tested and certified to meet the IP67 standard, which means it is completely protected against dust and can withstand being submerged in water up to a depth of 1 meter for up to 30 minutes without damage. With its waterproof and dustproof design, an IP67 panel PC can operate reliably even in the harshest conditions, making it an ideal choice for applications that require rugged and dependable computing solutions.automation.
Features of fanless all in one pc
-
Waterproof and dustproof enclosure: This type of panel PC is designed to be fully protected against dust and capable of withstanding immersion in water up to a depth of 1 meter for up to 30 minutes.
-
Ruggedized design: An IP67 panel PC is typically built with a ruggedized enclosure that can withstand exposure to harsh environments, including extreme temperatures, shock, and vibration.
-
Touch screen display: Most IP67 panel PCs feature a touch screen display that is designed to work even in wet environments, allowing for easy operation with gloves.
-
High-performance processor: To ensure fast and reliable performance, an IP67 panel PC typically features a powerful processor, such as an Intel Core i5 or i7.
Specifiction of of fanless all in one pc
DISPLAY
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 15”/4:3 | |
| Active Area/ Pixel Pitch | 304.13(W) x 228.10(H)mm/0.297 × 0.297mm | |
| Native Resolution/ Colors | 1024 x 768/16.2M | |
| Brightness/ Contrast | 1000cd/㎡(1500cd/㎡ optional)/700:1 | |
| Response Time/ Viewing Angle(Typical) | 30ms/80/80/60/80 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | Android Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) | Intel® Celeron J1900 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | RK3288 | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory |
2GB; 4GB Optional
|
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB |
2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB |
| Storage | 8GB: 16GB/32GB/64GB Optional | 1 x SATA, 1 x mSATA, Default to 64GB SSD | 1 x SATA, 1 x mSATA, Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD Graphics (By CPU) | Intel HD Graphics (By CPU) |
| Default Waterproof I/O |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
| LAN | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet |
| OS | Android 6.0 (Android 7.0 optional) | Windows 7/8/10, Linux | Windows 7/8/10, Linux |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 25-55W | |
| Environment Considerations | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ | |
| Mounting | VESA Mount, Panel/Embedded Mount optional | |
| Order Information | 15” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD15PPCG1HBIP*E2 | |
| 15” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD15PPCT1HBIP*E2 | ||
| 15” 1000nits Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD15PPCT5HBIP*E2 | ||
| 15” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD15PPCG1HBIP*J2 | ||
| 15” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD15PPCT1HBIP*J2 | ||
| 15” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD15PPCT5HBIP*J2 | ||
| 15” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD15PPCG1HBIP*I3 | ||
| 15” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD15PPCT1HBIP*I3 | ||
| 15” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD15PPCT5HBIP*I3 | ||
| 15” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD15PPCG1HBIP*I5 | ||
| 15” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD15PPCT1HBIP*I5 | ||
| 15” 1000nits Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD15PPCT5HBIP*I5 | ||
Display of of fanless all in one pc
