21.5" IP65 Panel PC Display And Wide Operating Temp Stainless Steel Waterproof AIO
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Stainless Steel IP65 Touch Screen PC,21.5" IP65 Panel PC,Waterproof AIO IP65 Panel PC |
||
|---|---|---|---|
Product Description
Features:
- IP65 Rated
- Stainless Steel Panel PC
- Fanless Design
- I/O Ports: USB, HDMI, LAN, COM, Audio
- Working Temperature: -10℃ To 60℃
- Power Supply: DC 12V
- 10-point Capacitive Touch
- OS: Windows 10

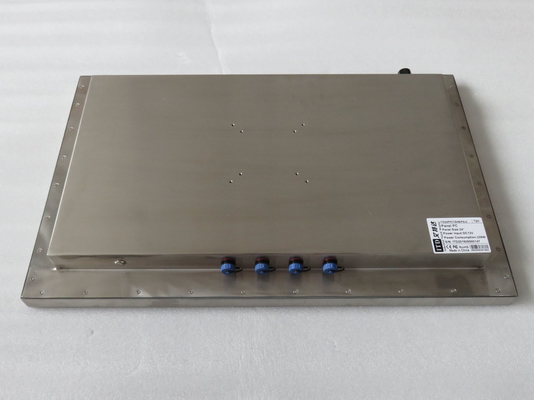

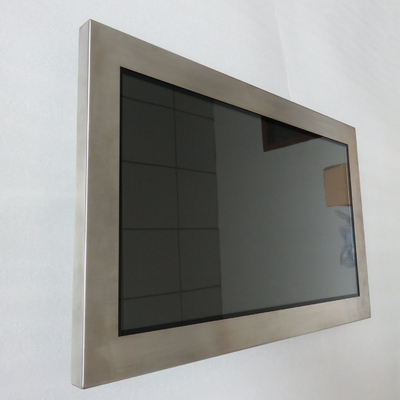

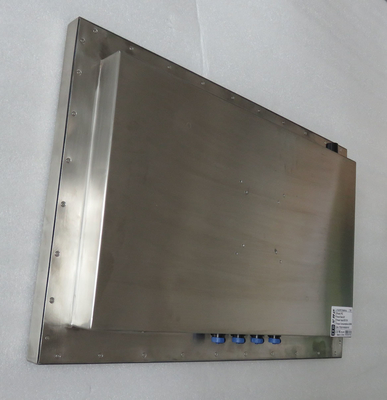

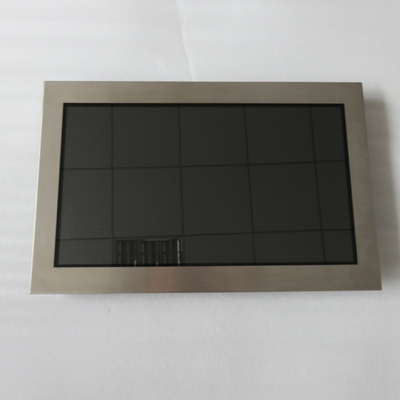

Product Image:
Technical Parameters:
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 21.5”/16:9 | |
| Active Area/ Pixel Pitch | 476.64(H) x268.11(V)mm/0.24825× 0.24825mm | |
| Native Resolution/ Colors | 1920 x 1080/16.7M | |
| Brightness/ Contrast | 250cd/㎡/1000:1 | |
| Response Time/ Viewing Angle(Typical) | 5ms/89/89/89/89 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | Android Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) | Intel® Celeron J1900 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | RK3288 | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory |
2GB; 4GB Optional
|
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB |
2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB |
| Storage | 8GB: 16GB/32GB/64GB Optional | 1 x SATA, 1 x mSATA, Default to 64GB SSD | 1 x SATA, 1 x mSATA, Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD Graphics (By CPU) | Intel HD Graphics (By CPU) |
| Default Waterproof I/O |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
| LAN | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet |
| OS | Android 6.0 (Android 7.0 optional) | Windows 7/8/10, Linux | Windows 7/8/10, Linux |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 25~45W | |
| Environment Considerations | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ | |
| Mounting | VESA Mount, Panel/Embedded Mount optional | |
| Order Information | 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD21PPCG1IP*E2 | |
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD21PPCT1IP*E2 | ||
| 21.5” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD21PPCT5IP*E2 | ||
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD21PPCG1IP*J2 | ||
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD21PPCT1IP*J2 | ||
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD21PPCT5IP*J2 | ||
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD21PPCG1IP*I3 | ||
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD21PPCT1IP*I3 | ||
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD21PPCT5IP*I3 | ||
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD21PPCG1IP*I5 | ||
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD21PPCT1IP*I5 | ||
| 21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD21PPCT5IP*I5 | ||
Customization:
ITD provides custom services for IP65 Panel PC, with the following product attributes:
- Brand Name: ITD
- Model Number: ITD19PPCT5IPS*
- Place of Origin: China
- Certification: CE,ROHS,FCC
- Minimum Order Quantity: 1
- Packaging Details: foam,master carton
- Delivery Time: a month
- Payment Terms: T/T in advance
- RAM: DDR3L 4GB
- Expansion Slots: Mini-PCIe, SIM Card Slot
- Power Supply: DC 12V
- I/O Ports: USB, HDMI, LAN, COM, Audio
- CPU: Intel J1900,i3,i5,i7
- Special Feature: IP66 protection grade, waterproof and dustproof, suitable for food industry, vandal-proof
Applications:
The ITD19PPCT5IPS* IP65 Panel PC is a reliable and robust industrial panel PC designed to operate under harsh conditions. It is waterproof with an IP66 rating and dustproof with an IP67 rating, making it well-suited for outdoor applications in extreme environments. The expansion slots such as Mini-PCIe and SIM Card Slot offer a wide range of possibilities for adding additional features. The I/O Ports like USB, HDMI, LAN, COM, and Audio enable users to connect peripheral devices with ease. The 10-point capacitive touch screen ensures a smooth and responsive user experience. The DDR3L 4GB RAM makes the system run faster and smoother. Moreover, the product is certified with CE, ROHS and FCC, comes with a minimum order quantity of 1, and is packaged with foam and a master carton. The delivery time is within one month and payment terms are T/T in advance.
