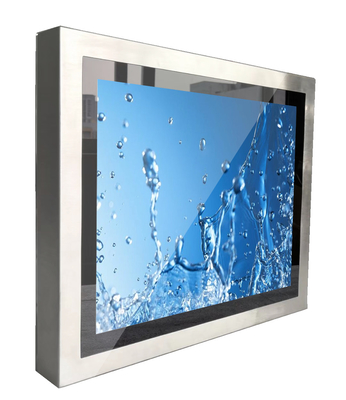

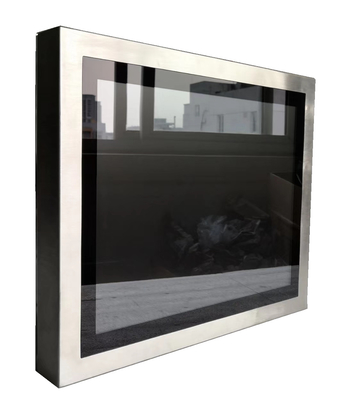

12.1'' Embedded Industrial LCD Rugged IP65 HD All In One Fanless PCs PCAP Touch Panel Mount J1900

  • 12.1'' Embedded Industrial LCD Rugged IP65 HD All In One Fanless PCs PCAP Touch Panel Mount J1900
  • 12.1'' Embedded Industrial LCD Rugged IP65 HD All In One Fanless PCs PCAP Touch Panel Mount J1900
  • 12.1'' Embedded Industrial LCD Rugged IP65 HD All In One Fanless PCs PCAP Touch Panel Mount J1900
Place of Origin China
Brand Name ITD/OEM
Certification CE,FCC, RoHS Compliance
Model Number ITD12PPCT5HBIP
Minimum Order Quantity 1PCS, No MOQ
Price TBA
Delivery Time 10-15 Business days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

IP65 PCAP Touch Panel

,

Fanless Rugged PCAP Touch Panel
Leave a Message
Product Description

12.1'' Embedded Industrial LCD Rugged IP65 HD All-In-One Fanless Touchs PCs | High Brightness | PCAP| Panel Mount J1900

12.1'' Embedded Industrial LCD Rugged IP65 HD All In One Fanless PCs PCAP Touch Panel Mount J1900 012.1'' Embedded Industrial LCD Rugged IP65 HD All In One Fanless PCs PCAP Touch Panel Mount J1900 112.1'' Embedded Industrial LCD Rugged IP65 HD All In One Fanless PCs PCAP Touch Panel Mount J1900 2

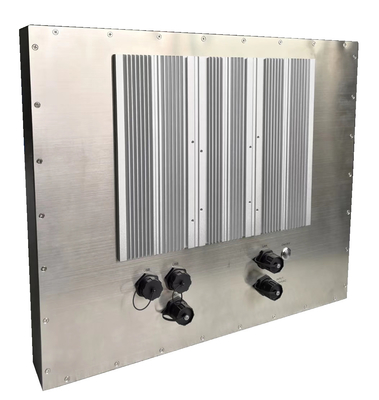

The 12.1” waterproof outdoor PC features an efficient ARM based or x86 based PC system integrated fully waterproof with M12 waterproof connectors for the PCs LAN, RS232 and USB 2.0 ports. For effective use outdoors, this unit has a high-brightness projective capacitive touchscreen and is outfitted with wide temperature range components. The housing is IP67 rated ideal for outdoor kiosk or interactive display applications.



FEATURES

•Robust stainless steel enclosure, sealed I/O from particles, water, and corrosive agents

•Full IP65/66/IP67 and sealed with anti-corrosive rubber to providing 360 degree protection

•Rugged stainless steel enclosure design with high EMC and IP65/IP66/IP67 NEMA4/4X protection

•Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports

•Flexible, reliable, and ruggedized for open platform HMI/SCADA •Provides improved power efficiency and reduced consumption

▪ CE, FCC, RoHS Compliance



OPTIONALS

•Anti-Glare / Anti-Reflective tempered glass

•WIFI, 3G, 4G, Bluetooth

• Web camera, speakers, RFID, NFC, Fingerprint, QR reader, GPS etc

•Touch optional: Resistive, IR, PCAP

•Optical bonding

•DC24V, DC 9-36V, AC100-240V



SPECIFICATION

Panel Cell Type/Glass Surface Color TFT LCD
Aspect Ratio/Size 12.1''/4:3
Active Area/Pixel Pitch 246.0(W) x 184.5(H)mm/0.3075 × 0.3075mm
Native Resolution/Colors 1024 x 768 /16.2M
Response TBrightness/Contrast 1000cd/㎡/700:1
Response Time/ Viewing Angle(Typical) 30ms/80/80/60/80
Light Source LED backlight with 50000hours’lifetime





System
Item Android Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) Intel® Celeron J1900 2.0GHz Intel® Core i3/i5/i7
Chipset RK3288 Intel Bay Trail SoC Intel SoC Chipset
Memory 2GB; 4GB Optional Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB 2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage 8GB: 16GB/32GB/64GB Optional 1 x SATA, 1 x mSATA, Default to 64GB SSD 1 x SATA, 1 x mSATA, Default to 64GB SSD
Graphics Supports max. 4K resolution Intel HD Graphics (By CPU) Intel HD Graphics (By CPU)
Default Waterproof I/O 2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional 2 × USB, 1× RJ45, 1× DC9-36V COM ports, HDMI Output, Audio, etc. optional 2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional
