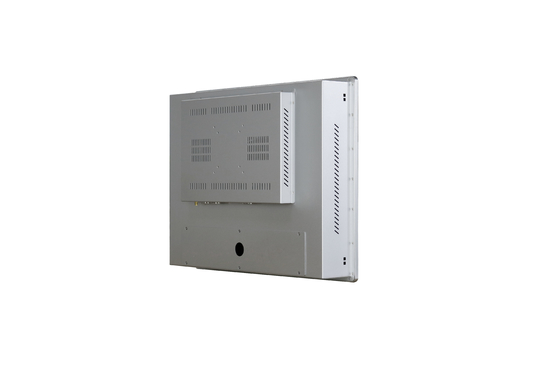

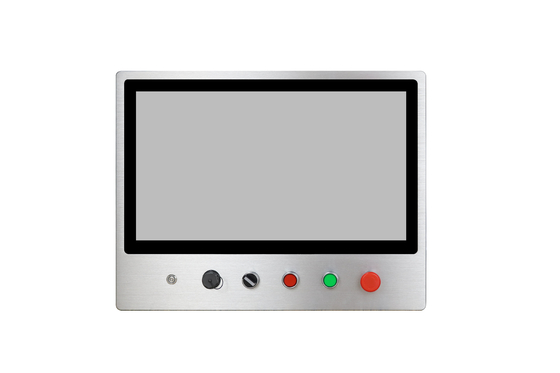

Customized Panel PC 19 Inch HMI Button Controller Self Locking Reset Buttons For CNC PLC Equipment
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD19PPCT5X** |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,wooden case,pallet |
| Delivery Time | 15-20 work days |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 10000 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel Core I7 | Size | 19-inch |
|---|---|---|---|
| Native Resolution | 1280x1024 | Brightness | 300cd/m2 |
| Viewing Angle | 89/89/89/89 | Input Voltage | DC9-36V，DC12V |
| Battery | Lithium-ion | Camera | 2MP |
| Color | Black | Display | LED |
| Graphics | Intel HD Graphics | OS | Windows 10 |
| Ports | USB 3.0, HDMI, Ethernet | RAM | 8GB |
| Resolution | 1920x1080 | Storage | 256GB SSD |
| Touchscreen | Capacitive | Weight | 2.2kg |
| Wireless | Wi-Fi, Bluetooth | ||
| Highlight | Customized Panel PC 19 Inch,HMI Button Controller Panel PC |
||
Product Description
customized operation panel PC 19 inch HMI button controller self locking reset buttons for CNC PLC equipment
The ITD industrial multi-touch screen panel mounted panel PC is fully-integrated‚ multi capacitive touch screen that combines high-performance Intel® Celeron™ Quad Core Processor J1900 2.0 GHz with Projected Capacitive Touch (PCT or PCAP) Technology in a sleek industrial-grade IP65/ NEMA 4/4x Ingress rating TFT-LCD flat panel with flat front surface design. The ITD Windows-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Windows 7/8 and other popular programming languages. The ITD multi-touch panel mounted panel PC is designed for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.
Specs:
| Panel | Cell Type/Glass Surface | TFT |
| Size | 19” | |
| Aspect Ratio | 16:10 | |
| Active Area | 408.32(H) x 255.2(V)mm | |
| Pixel Pitch | 0.2835× 0.2835mm | |
| Native Resolution | 1440 x 900 | |
| Colors | 16.7M | |
| Brightness | 250cd/㎡ | |
| Contrast | 1000:1 | |
| Response Time | 5ms | |
| Viewing Angle(Typical) | 170/160 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SPECIFICATION
| System | CPU | Intel® Core i3/i5/i7 Processor |
| BIOS | AMI | |
| Chipset | Intel SoC Chipset | |
| Memory | 2 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.16GB | |
| Graphic Chipset | CPU integrated graphics HD and support 1080p | |
| Storage | 1 x SATA, 1 x mSATA, Default to 64GB SSD | |
| LAN | 1 x 10/100/1000Mbps Ethernet | |
| Input / Output | Serial Ports | 2 x COM |
| USB Ports | 4 X USB | |
| VGA Port | 1 x VGA Output | |
| HDMI Port | 1x HDMI Output | |
| Audio Card |
with Realtek ALC662 Line-Out /MIC IN |
|
| Power | Input Voltage | DC 12V |
| Operation/Power Saving | 78W | |
| Environment Considerations | Operating Temperature | -10~60℃ (-20~70℃ Optional) |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90% | |
| Order Information | 19” 16:10 Flat Bezel Panel PC with PCAP Touch i3/i5/i7 /ITD19PPCT5XI*W | |
| 19” 16:10 Flat Bezel Panel PC with Resistive Touch i3/i5/i7 /ITD19PPCT1XI*W | ||
| 19” 16:10 Flat Bezel Panel PC with Tempered Glass i3/i5/i7 /ITD19PPCG1XI*W | ||
SYSTEM
| Item | Android Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) | Intel® Celeron J1900 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | RK3288 | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory |
2GB; 4GB Optional
|
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB |
2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB |
| Storage |
8GB: 16GB/32GB/64GB Optional
|
1 x SATA, 1 x mSATA, Default to 64GB SSD | 1 x SATA, 1 x mSATA, Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD Graphics (By CPU) | Intel HD Graphics (By CPU) |

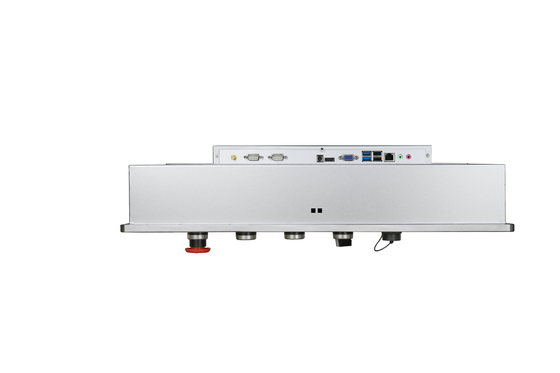

| I/O | 1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 2 × COM; 1 × TF Card Slot Support 8~128GB |
1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; COM port(optional); 1 x Realtek ALC662 Line-Out /MIC IN |
1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 2 x COM max. 6; 1 x Realtek ALC662 Line-Out /MIC IN |
| LAN | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet |
| OS | Android 6.0 (Android 7.0 optional) | Windows 7/8/10, Linux | Windows 7/8/10, Linux |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 40~65W | |
| Environment Considerations | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90% |
Image:
FEATURES
▪ Freescale ARM Cortex-A9 i.MX 6DualLite processor with Android 5.1 OS
▪ LTE/HSPA+, Wi-Fi, Bluetooth, and GPS connectivity
▪ Energy-efficient and fan-less HMI Systems
▪ Robust design with aluminum bezel NEMA 4/ IP65 front panel
▪ CAN bus interface with raw CAN, J1939, and OBD-II/ISO 15765 support
