All-Aluminum Fanless Box PC LED Touch Monitor Industrial Box PC Embedded Box Computers
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Humidity | 0~90% Air Humidity, No Condensation | Hard Disk Rack | 1×Hard Disk Rack, Supporting 1×2.5 Inch HDD/SSD |
|---|---|---|---|
| Storage Temperature | -40～75℃ | Optional Processor | Optional Intel Celeron J Series Or Intel I3/i5/i7 U Series |
| Video Outputs | 1 X HDMI，1 X VGA | Contrast Ratio | 500:1 |
| Operating Temperature | (-20～70℃) | Power Supply | Standardized 12V@5A Adapter |
| Highlight | Fanless Embedded Box Computers,All-Aluminum Fanless Box PC,Touch Monitor Industrial Box PC |
||
Product Description
INTRODUCTION:

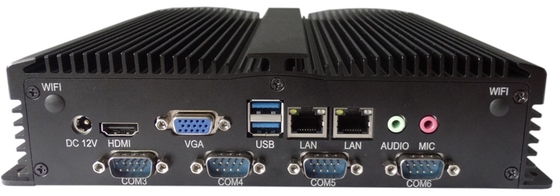

All-Aluminum Industrial Fanless Box PC, Supporting Soldered Onboard Intel i3/i5/i7 All Generations U&Intel Celeron J series CPU, 2×LAN,6×COM(RS232/RS422/RS485,6×USB.
FEATURES
■All-Aluminium Die-Casting Fanless Design
■ MINI-ITX Motherboard Supporting Intel Core i3/i5/i7 up to 11th Generation U Series&Intel Celeron J Series Processors
■ 2×LAN, 6×COM, 6×USB
■ Supports mSATA + 2.5 inch Dual Hard Disk
■ Supports VGA+HDMI Dual Display
■ Supports WIFI or 4G
OPTIONALS
• Other colours can be customized
• Customizable with customer logo or more serial or parallel ports
• 6×COM(Default to RS232, RS422/RS485 optional);
• Optional Double Hard Disk Rack
• Optional Intel Celeron J Series or Intel i3/i5/i7 U Series
Specification
Specifications |
Optional Configurations |
|||||||||
| Chassis | All Aluminum Die-Casting Chassis, Sandblasted and Oxidized Black | Other colours can be customized | ||||||||
| Front | With Power Indicator Switch; 2×COM; 4×USB2.0 | Customizable with customer logo or more serial or parallel ports | ||||||||
| Back | DC input; VGA + HDMI Outputs, 2×USB3.0; 2×RJ45 Gigabit Network Port; Line out + MIC in; 4×COM; 2×Antenna Aperture (Support WIFI or 4G) | 6×COM(Default to RS232, RS422/RS485 optional); | ||||||||
| Hard Disk Rack | 1×Hard Disk Rack, Supporting 1×2.5 inch HDD/SSD | Optional Double Hard Disk Rack | ||||||||
| Adaptive Motherboard | MINI-ITX Motherboard Intel Celeron J Series or Intel i3/i5/i7 U Series | |||||||||
| CPU/GPU | Intel Celeron J4125 | Optional Intel Celeron J Series or Intel i3/i5/i7 U Series | ||||||||
| Memory | Default 4G DDR4 | Max. up to 32G | ||||||||
| Storage | Default 128G SSD | Max. up to 1TB mSATA SSD; Support 2.5 inch SSD and HDD | ||||||||
| Size | 234×200×64.5mm | Net/Gross Weight | 3/3.5KG | |||||||
| Power Supply | Standardized 12V@5A adapter | |||||||||
| Installation mode | Side Bracket Installation | |||||||||
Work and Environment |
||||||||||
| Working Temperature | (-20～70℃) | Storage Temperature | -40～75℃ | Environmental Humidity | 0~90% Air Humidity, no Condensation | |||||
| Shock | 10g Acceleration, 11ms Duration | Vibration | 5-17Hz/1.0mm Amplitude, 17-200Hz/1.0g Acceleration | |||||||
| EMC | GB9254-2008 class A | |||||||||
