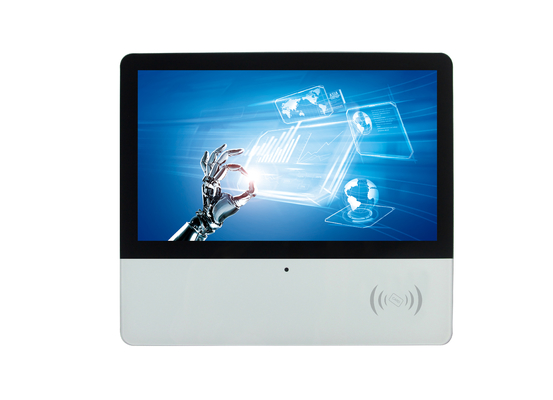

Customize 15.6'' PCAP Flat Bezel panel mounted Touch LCD Panel PC All In One Fanless with RFID reader and finger printer
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | 15.6'' Touch LCD Panel PC,Fanless Touch LCD Panel PC |
||
|---|---|---|---|
Product Description
INTRODUCTION
ITD 15.6” multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance Intel® Core™ Dual/Quad Core Processor i3/i5/i7, and Projected Capacitive Touch (PCT or PCAP)Technology in industrial-grade LCD flat panels, combined with a NFC or RFID reader with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD 15.6” multi-touch HMI comfort panel PC specifically suited for various smart access control systems.
FEATURES
▪Easy-to-clean, true flat front surface without bezel
▪ Card Reader like NFC, RFID, etc integrated
▪ Ten independent touch points with anti-vandalism & scratch
▪ Responds to a light touch to activate response
▪ Eliminates dust and debris build-up at the edge and corners of the display
▪ Provides improved power efficiency and reduced consumption
▪ Ruggedized levels of NEMA 4, IP65 ratings for front panel
▪All steel and aluminum frame construction designed for public and industrial environments
▪ CE, FCC, RoHS Compliance
OPTIONS
•WIFI, Bluetooth
•Camera, Microphone built-in
•VESA brackets, desktop stand
SPECIFICATION
| System | CPU | Intel® Core i3/i5/i7 Processor |
| BIOS | Award BIOS 4/8Mbit SPI Flash ROM | |
| Memory | 1 x SO-DIMM, DDR3 1333MHz Memory, 4GB, Max.16GB | |
| Chipset | Intel Valley View SSA‐Cunit | |
| Storage | 64G SSD | |
| Graphic Chipset | CPU integrated graphics HD and support 1080p | |
| LAN | 1 x 10/100/1000Mbps Ethernet | |
| Panel | Cell Type/Glass Surface | Color TFT LCD |
| Aspect Ratio/Size | 15.6''/16:9 | |
| Active Area/Pixel Pitch | 344.16(W) × 193.59(H)mm/0.17925 × 0.17925mm | |
| Native Resolution/Colors | 1920 x 1080 | |
| Response Brightness/Contrast | 300cd/㎡ /500:1 | |
| Viewing Angle(Typical) | 160/160 | |
| Light Source | LED backlight with 50000hours’lifetime | |
| Input / Output | Serial Ports | 1 x COM |
| USB Ports | 4 X USB | |
| HDMI Port | 1x HDMI Output | |
| VGA Port | 1 x VGA Output | |
| Audio Card |
with Realtek ALC662 Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN |
|
| Power | Input | DC 12V |
| Operation/Power Saving | 58W | |
| Operating Temperature | -10℃~60℃ | |
| Storage Temperature | -20℃~70℃ | |
| Relative Humidity | 10%~90% (Non Condensing) | |
