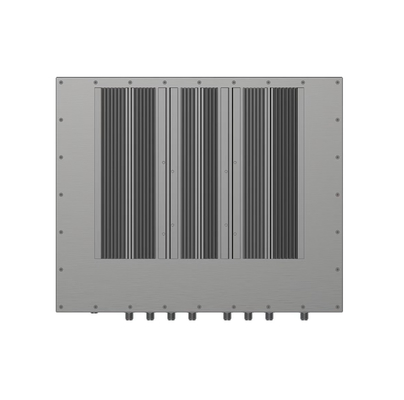

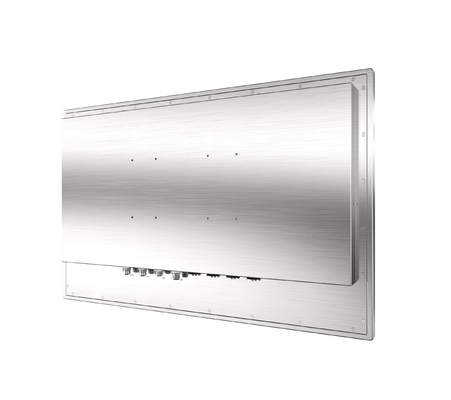

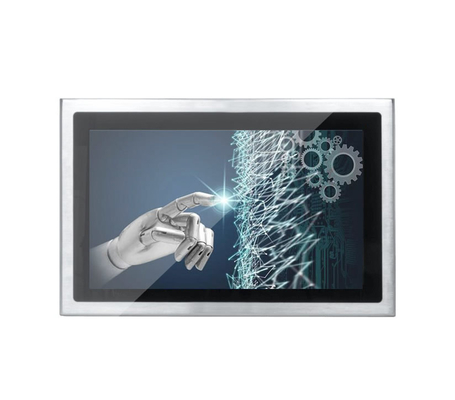

19 Inch CPU i3 Stainless Steel Panel PC for Food Production and Packaging Automation
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Touch Screen | 10-point Capacitive Touch,resistive Touch | CPU | Intel J1900,J6412,i3,i5,i7, |
|---|---|---|---|
| Protection Level | IP65/IP66/IP67/IP69K | Working Temperature | -20℃ To 60℃ |
| Display Size | 19 Inch | Product Name | IP69K Waterproof Panel PC |
| Storage | 64GB SSD,128GB,256GB | Humidity | 10% To 90% RH |
| Type | Panel PC,Industrial Computer Accessories,All-In-One | Memory | 4GB,8GB,16GB |
| Lan | 2*10/100/1000Mbps RJ45 LAN | ||
| Highlight | Food Production Panel PC,Packaging Automation Panel PC,i3 Stainless Steel Panel PC |
||
Product Description
The ITD Full IP69K panel PCs series is high-performance ARM based or x86 based PC system integrated that meets all hygiene regulation standards in the food, beverage, chemical processing, pharmaceuticals, biotechnology process manufacturing and other industrial applications. This waterproof IP69K PCs series has a wide range of sizes option, with complete stainless-steel chassis and anti-corrosive. This HMI system features fan-less design and IP69k sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration, high-pressure water jets and steam cleaning while meeting required EMI/RFI resistance compliance.
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 19”/4:3 | |
| Native Resolution/ Colors | 1280×1024 / 16.7M | |
| Brightness/ Contrast | 300cd/㎡(500~1000cd/㎡optional)/800:1 | |
| Response Time/ Viewing Angle(Typical) | 14ms/85/85/85/85 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | ARM Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz (RK3399/RK3568/RK3588 optional) | Intel® Celeron J1900//J4125/J6412 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | Rockchip | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory | 2GB; 4GB Optional
| Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412) | 2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~11th gen.) |
| Storage | 8GB: 16GB/32GB/64GB Optional
| 1×MSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD | 1×MSATA, 1×SATA 1×M.2 Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD/UHD Graphics (By CPU) | Intel HD/UHD Graphics (By CPU) |

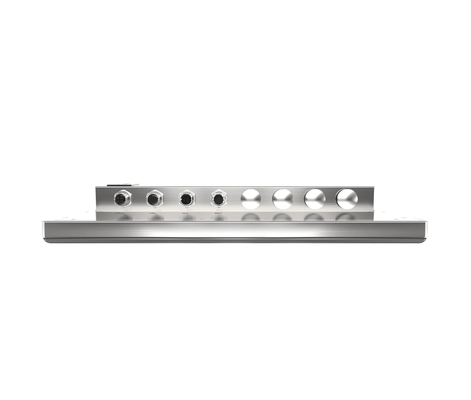

| Default Waterproof M12 I/O | 2 × USB, 1 × RJ45, 1 × DC More Waterproof I/Os optional (1 × TF Card Slot Support 8~128GB) | 2 × USB, 1 × COM, 1 × RJ45, 1 × DC More Waterproof I/Os optional | 2 × USB, 1 × COM, 1 × RJ45, 1 × DC More Waterproof I/Os optional
|
| LAN | 1×10/100/1000Mbps Ethernet | 1× 10/100/1000Mbps Ethernet( Dual LAN optional) | 1×10/100/1000Mbps Ethernet( Dual LAN optional) |
| OS | Android 7.1/8/10/11,etc. Linux Ubuntu(optional) | Windows 7/10, Linux Windows 11(available for J4125/J6412) | Windows 7/10, Linux Windows 11(available for 7th gen. or above) |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 15~35W | |
| Environmental Considerations | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90%(Non-Condensing) |
Customization:
ITD provides custom services for IP65 Panel PC, with the following product attributes:
- Brand Name: ITD
- Model Number: ITD19PPCT5IPS*
- Place of Origin: China
- Certification: CE,ROHS,FCC
- Minimum Order Quantity: 1
- Packaging Details: foam,master carton
- Delivery Time: a month
- Payment Terms: T/T in advance
- RAM: DDR3L 4GB
- Expansion Slots: Mini-PCIe, SIM Card Slot
- Power Supply: DC 12V
- I/O Ports: USB, HDMI, LAN, COM, Audio
- CPU: Intel J1900,i3,i5,i7
- Special Feature: IP66 protection grade, waterproof and dustproof, suitable for food industry, vandal-proof
Support and Services:
We provide technical support and service for our IP65 Panel PC. Our technical support team is available 24/7 to help you with installation, troubleshooting, and other inquiries.
We also offer extended warranty plans to cover up to 5 years of repair and replacement. Our dedicated team of engineers and technicians are ready to provide support and help you get the most from your IP65 Panel PC.
