1000-3000nits Sunlight Readable LCD Display Industrial High TNI 105°C LVDS Interface Panel
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Screen Size | 32" | Display Area | 698.4(H)×392.85(V) Mm |
|---|---|---|---|
| Brightness | 1000~3000 Cd/m2 | Panel Interface | LVDS |
| AD Board Interface | VGA,DVI,HDMI | Input Power | AC90-132V/180-264V |
| Operating Temperature | -20°C ~ 70°C | ||
| Highlight | LVDS Interface Industrial LCD Display,1000-3000nits Sunlight Readable LCD Display,Industrial Sunlight Readable LCD Display |
||
Product Description
high brightness open frame monitor 1000-3000nits sunlight readable lcd display industrial high TNI 105 Celsius
The ITD32OFN1KTxx is a 32 inch sunlight readable industrial grade open frame LCD, with high brightness 1000~3000 nits and high color saturation, it produces sharp images, crisp text and lifelike colors. The LED backlight technology ensures high reliability and low power consumption, widely used for outdoor application, such as outdoor totem, outdoor kiosk, factory automation, military, transportation.
| Model | ITD32OFN1KTxx |
| Description | 32” High Brightness Open Frame LCD Monitor |
| Screen Size | 32” |
| Display Area(mm) | 698.4(H)×392.85(V) |
| Brightness | 1000~3000 cd/㎡ |
| Resolution | 1920×1080 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200:1 |
| Pixel Pitch(mm) | 0.63(H)x0.63(V) |
| Viewing Angle | 178°(H),178°(V) |
| Color Saturation(NTSC) | 76% |
| Display Color | 16.7M |
| Response Time(Typical) | 15ms |
| Panel Interface | LVDS |
| AD Board Interface | VGA,DVI,HDMI |
| Input Power | AC90-132V/180-264V |
| Power Consumption | 90~150W |
| Dimensions(mm) | 723.4×422.9×76.3 |
| Weight(Net) | 9.3kg |
| Mounting | VESA 275×150mm |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -20°C ~ 70°C |
| Order Information | 32” 1000nits Open Frame LCD Monitor/ITD32OFN1KT02 |
| 32” 1500nits Open Frame LCD Monitor/ITD32OFN1KT01 | |
| 32” 2000nits Open Frame LCD Monitor/ITD32OFN1KT03 | |
| 32” 2500nits Open Frame LCD Monitor/ITD32OFN1KT04 | |
| 32” 3000nits Open Frame LCD Monitor/ITD32OFN1KT05 | |
| 32” High Brightness Open Frame LCD Monitor with PCAP Touch/ITD32OFT5KTxx |

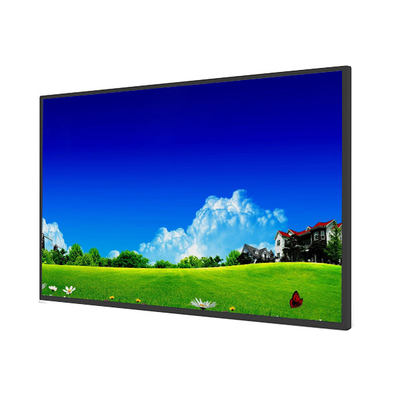

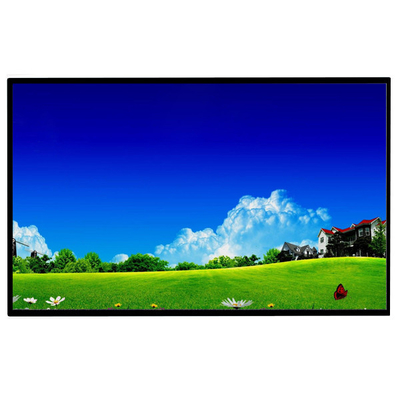

Product Display

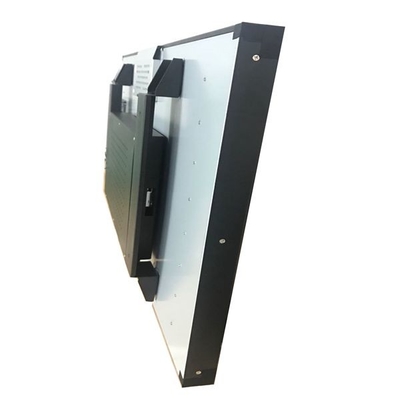

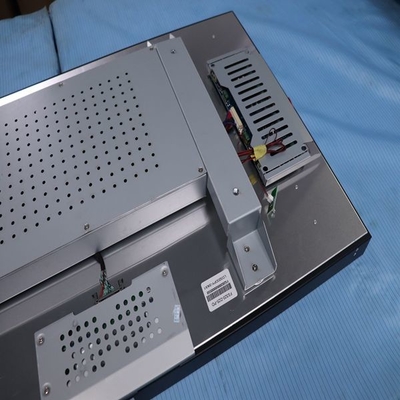

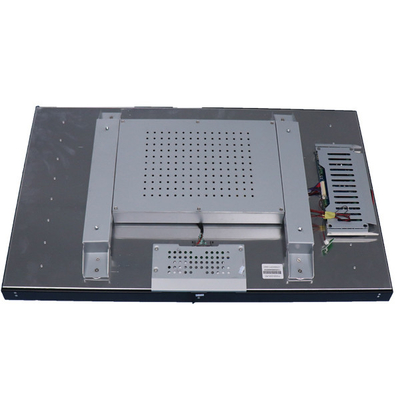

Phycical Photo
