10.1" Industrial HMI Touch Panel PC For CNC Machine Control System Fleet Management

  • 10.1" Industrial HMI Touch Panel PC For CNC Machine Control System Fleet Management
  • 10.1" Industrial HMI Touch Panel PC For CNC Machine Control System Fleet Management
  • 10.1" Industrial HMI Touch Panel PC For CNC Machine Control System Fleet Management
  • 10.1" Industrial HMI Touch Panel PC For CNC Machine Control System Fleet Management
  • 10.1" Industrial HMI Touch Panel PC For CNC Machine Control System Fleet Management
  • 10.1" Industrial HMI Touch Panel PC For CNC Machine Control System Fleet Management
  • 10.1" Industrial HMI Touch Panel PC For CNC Machine Control System Fleet Management
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD101PPCTXB-XXX
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 7-10 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Processor Onboard Intel Celeron J1900/4th 6th/7th/8th Gen.Core I3/i5/i7,J6412,J4125 Storage Disk Driver 1xMSATA,1XSATA,1XM.2
OS Support Windows 7/8/10/11.WIN CE,LINUX Construction Full Aluminum
Dimension 289.53x192.44x48.3 Mm DC Input 9-36V
Resolution 1280*800
Highlight

10.1” Industrial HMI Touch Panel PC

,

fleet management Touch Panel PC
Leave a Message
Product Description

10.1" Industrial HMI Touch Panel PC for CNC machine control system fleet management



Features:



1) Onboard Intel Celeron J1900/4th/6th/7th/8th Gen.Core i3/i5/i7 CPU

2) Onboard DDR3 4GB/DDR4 8GB Memory / Optional SODIMM SKU

3) LCD+HDMI Output, Support Dual view/Simultaneous display

4) Fanless Operation

5) IP65 Front Bezel

6) Wide DC Support 9 ~ 36V





SPECIFICATION of 10.1" Industrial HMI Touch Panel PC for CNC machine control system fleet management


ndustrial HMI Touch Panel PC

Model Name ITD101PPCT5B-xxxx
IP Rating IP65 Front Panel

PC Systems Options

ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional) X86 Based X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900/J4125/J6412 2.0GHz Intel Core i3/i5/i7
(4th~12th Generation optional)
Chipset: Rockchip Chipset: Intel Bay Trail SoC Intel SoC Chipset
Memory: Default to 2G, 4G/8G optional Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM×1(Intel J4125/J6412) 2×DDR3 1333/1600MHz SO-DIMM Slot;
DDR4 SODIMM ×2 (8th~12th Gen.)
HDD/SSD: Default to 16G, Max. 128G Storage: 1×MSATA, 1×SATA
1×M.2 (not available for J1900) Default to 64GB SSD		 Storage: 1×MSATA, 1×SATA
1×M.2 Default to 64GB SSD
1×HDMI Output; COM optional 1×VGA, 1×HDMI 1×VGA, 1×HDMI
2×USB, Max. 4×USB, 1×USB OTG (optional) 2×USB 2.0, 2×USB3.0, Max. 6 2×USB 2.0, 2×USB3.0, Max. 6
1×TF Card Slot(Supports 8~128G) 2×COM, Max. 6 2×COM, Max. 6
1×LAN 1×LAN, Dual LAN optional 1×LAN, Dual LAN optional
1×Audio Out 1×Realtek ALC662 , 1×Line-Out/MIC In 1×Realtek ALC662 , 1×Line-Out/MIC In
PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional
Android 7.1/10/11/12 or Newer Versions Windows 7/10, Linux
Windows 11(available for J4125/J6412)		 Windows 7/10, Linux
Windows 11(available for 7th gen. or above)

LCD Panel

Screen Diagonal (Inch) 10.1”
Display Active Screen Size (cm) 216.96(H)×135.6(V)
Aspect Ratio 16:10
Physical Resolution 1280×800
Maximum Resolution Supported 1920×1200
Colors 262K
Brightness (cd/m2) 350
Contrast Ratio 800:1
View Angels 85/85/85/85
Backlight/Backlight Lifetime LED Backlight with 50000Hours'Lifetime

Touch Panel

Touch Options Projected Capacitive Touch Panel, 5 Wires Resistive Touch Panel
Touch Drivers Windows 7/8/10, Linux, Android, Mac

Operation

Operating Temperature Range -20~60°C
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power

Power Indicator Green LED
Power Input DC 9-36V with 4PIN M12 Connector
Power Consumption 20W



Product Display

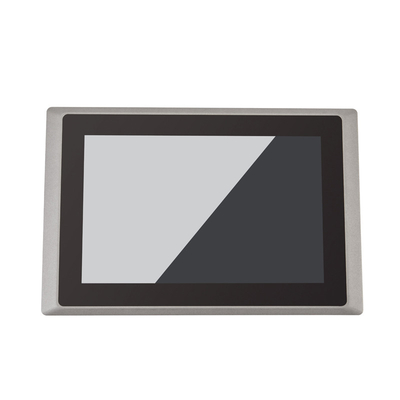

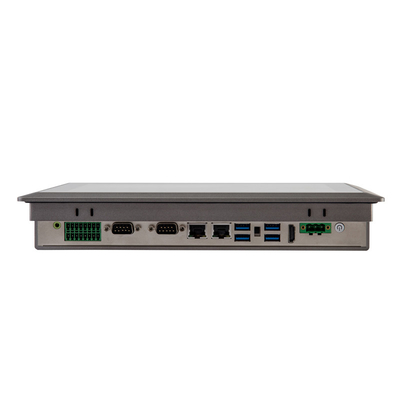

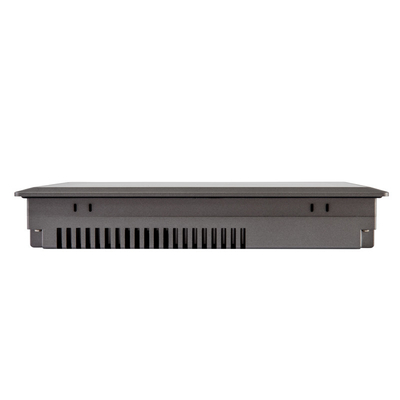

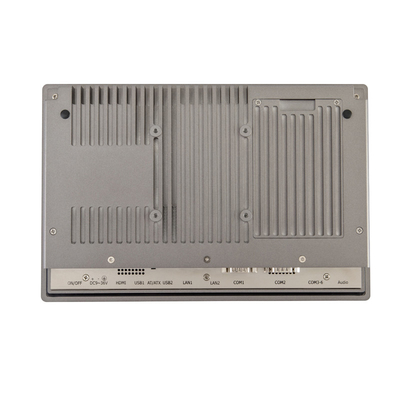

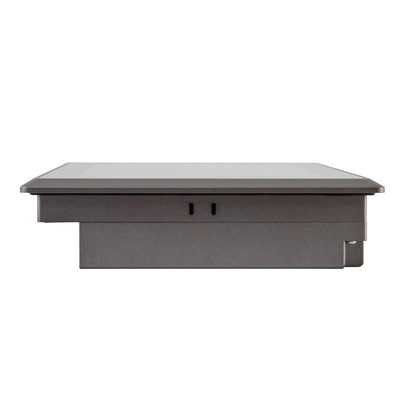

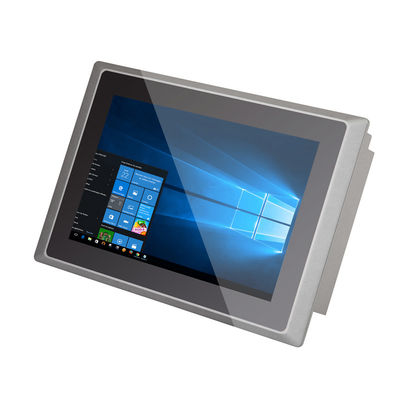

10.1" HMI panel PC

10.1" HMI industrial touch panel PC
















10.1" Industrial HMI Touch Panel PC For CNC Machine Control System Fleet Management 2
