55 Inch Industrial Capacitive USB Touch Screen Open Frame Touch Monitor For Interactive Touch Screen Kiosk
| Place of Origin | China |
|---|---|
| Brand Name | ITD |
| Certification | CE, FCC, RoHS |
| Model Number | ITD55PPCT5K1 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | ITD55OFT5K1 | IP Rating | IP65 Front |
|---|---|---|---|
| Resolution | 1920x1080/4K | Weight（N.W/G.W） | 42.2Kg / 48.3Kg (Approx.) |
| Power Supply | AC110-240V | Active Area | 1209.6(H) X 680.4(V) |
| Luminance(cd/m2) | 400 | Backlight MTBF(hr) | 50000 Hours |
| Touch Interface | USB A Type | ||
| Highlight | Open Frame Industrial Touch Screen Monitor,USB Industrial Touch Screen Monitor,55 inch Industrial Touch Screen Monitor |
||
Product Description
55 inch Industrial capacitive USB touch screen open frame touch monitor for interactive touch screen kiosk
ITD 55” PCAP multi-touch screen monitor is fully-integrated, off-the-shelf unit that combines Projected Capacitive Touch Technology with vandal proof, in an industrial/commercial -grade LCD flat panel, with a sleek‚ IP65 NEMA 4, and true flat front surface industrial design. These multi-touch displays with HMI interface provide a full range of industrial-grade units with multi-function capabilities and brilliant displays.
OPTIONAL
•ARM based PC, x86 PC built-in

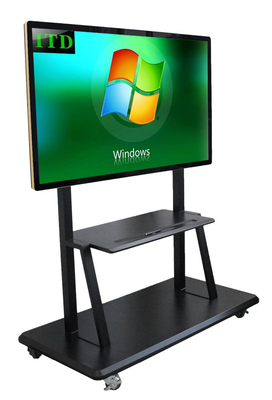

•VESA brackets, side mounting brackets, desktop stand
BENEFITES
-All steel/aluminum construction provides rugged frame for public use environments
-Ten independent touch points, plug and play
-Eliminates dust and debris build-up at the edge and corners of the display
-Provides improved power efficiency and reduced consumption
-Responds to a light touch in activating response
-Easy-to-clean surface without bezels
-Long lasting product cycle for continuity thru all phases of project
SPECIFICATION
| Model Name | ITD55OFT5K1 |
| IP Rating | IP65 Front Panel |
|
|
|
| Screen Diagonal (Inch/cm) | 55” |
| Display Active Screen Size (mm) | 1213.6(H) ×684.4(V) |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920×1080 |
| Maximum Resolution Supported | 1920×1080 |
| Colors | 16.7M |
| Brightness (cd/m2) | 400nits |
| Contrast Ratio | 4000:1 |
| View Angels | 89/89/89/89 |
| Backlight/Backlight Lifetime | LED Backlight with 50000 Hours’ Lifetime |
|
|
|
| Touch Technology | Projected Capacitive Touch |
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |
| Touch Life | 50,000,000times/click |
| Surface Hardness | 7H |
|
|
|
| Video Input | 1 × VGA |
| 1 × DVI-I | |
| 1 × HDMI | |
| Audio | 1 × PC-Audio |
| Touch Connector | 1 × USB |
|
|
|
| Operating Temperature Range | -10~60°C (-20~70°C Optional) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
|
|
|
| Power Indicator | Green LED |
| Power Input | AC100-240V |
| Power Consumption | 160W |
|
|
|
| Side Mounting Brackets, Desktop Stand, VESA Mounting Brackets, Webcam | |

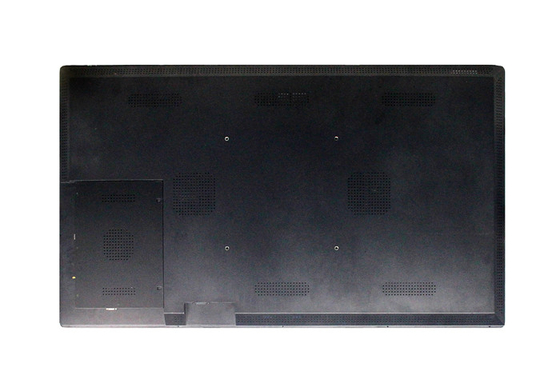

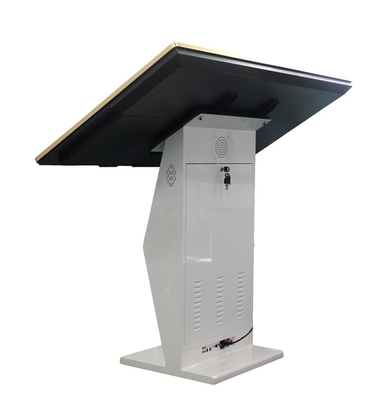

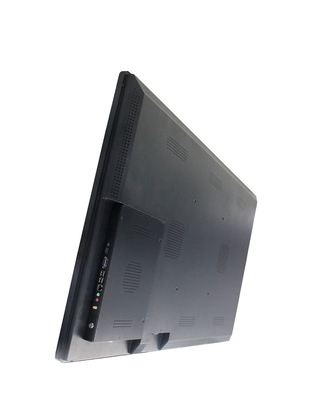

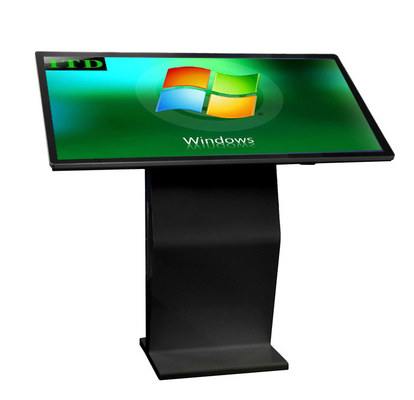

Product Display
