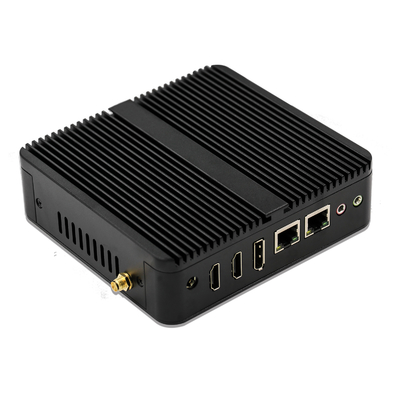

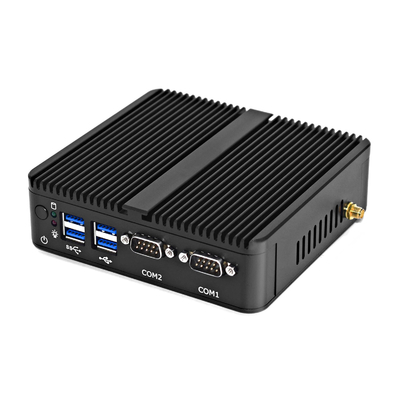

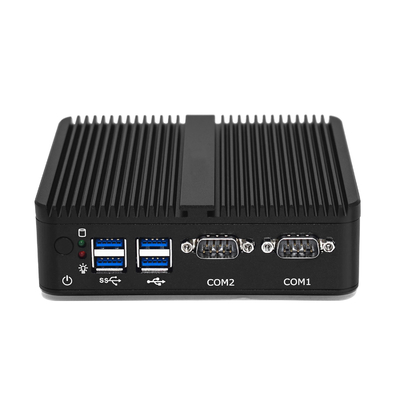

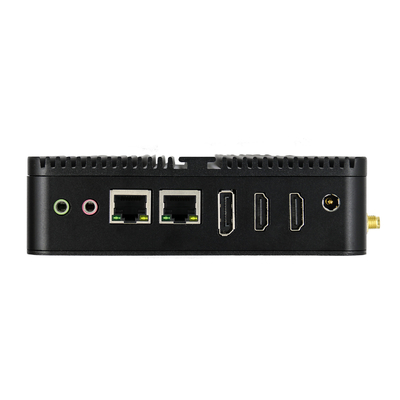

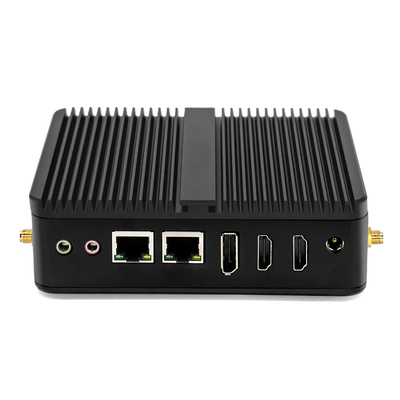

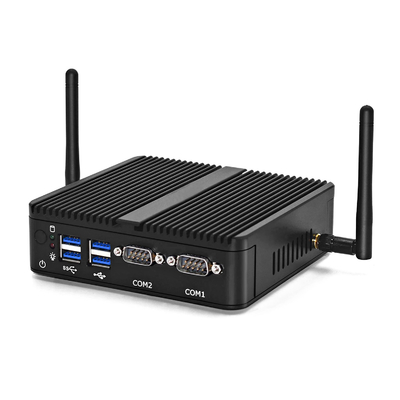

All-Aluminum Fanless Box PC Touch Monitor Industrial Embedded Box Computers Intel Elkhart Lake J6412/J641
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Humidity | 0~90% Air Humidity, No Condensation | Hard Disk Rack | X M.2 2280 NVME 1 X 2.5 Inch HDD/SSD 1 X MSATA |
|---|---|---|---|
| Storage Temperature | -30℃ To +70℃ | Optional Processor | Intel® Elkhart Lake J6412/J6413 |
| Video Outputs | 1 X HDMI，1 X DP | Operating Temperature | -20℃ To +60℃ |
| Power Supply | Standardized 12V | ||
| Highlight | All-Aluminum Fanless Box PC,Touch Monitor Embedded Box Computers,Industrial Embedded Box Computers |
||
Product Description
INTRODUCTION:
An Industrial fanless Embedded Box PC Intel J6412 by ITD are compact embedded box PCs, designed for edge computing, machine vision and other industrial applications. They offer a wide range of I/O ports including LAN, USB, COM, Audio, and Video. With rich I/O and expansion options, these fanlesss computers can power a stand-alone piece of equipment, run demanding software applications, or be embedded into a greater digital platform as powerful IoT hubs and offers a number of key advantages over traditional, actively cooled systems. Our fanless, solid state mini PCs leverage advanced passive cooling technology that enable cooling without a fan and without vents. They also utilize SSD storage, making for reliable, totally silent computers with no moving parts. Fanless PCs are more resistant to vibration and they excel in dirty and dusty environments.
FEATURES
■ Intel Elkhart Lake J6412/J6413
■ 2 x RS-232COM
■ 2x Realtek 8111H LAN
■ DDR4 SODIMM x1,up to 8GB
■ Fanless Operation
Specification
Specifications |
||||||
| Processor | Intel® Elkhart Lake J6412/J6413 | |||||
| System memory | DDR4 SODIMM x1,up to 8GB | |||||
| Ethernet | 2 x GbE RJ45 Realtek 8111H | |||||
| I/O Port |
2 x USB3.0 + 2 x USB2.0 2 x DB9 COM 2 x HDMI + 1 x DP 1 x Power LED 1 x Power Button 1 x Power input 2 x Antenna interface for WIFI |
|||||
| Storge Disk Driver |
1 x M.2 2280 NVME 1 x 2.5 inch HDD/SSD 1 x MSATA |
|||||
| Expansion Slot | x M.2 2230 Wifi | |||||
|
Watchdog timer |
1~255 Levels | |||||
| DC input | 12V | |||||
| Construction | Aluminum | |||||
| Mounting | Desktop/ wall mounted | |||||
Work and Environment |
||||||||||
| Working Temperature | (-20～60℃) | Storage Temperature | -30～70℃ | Environmental Humidity | 0~90% Air Humidity, no Condensation | |||||
