55" All In One Smart Industrial Touch Screen Computer Panel PC Android Windows System

  • 55" All In One Smart Industrial Touch Screen Computer Panel PC Android Windows System
  • 55" All In One Smart Industrial Touch Screen Computer Panel PC Android Windows System
  • 55" All In One Smart Industrial Touch Screen Computer Panel PC Android Windows System
  • 55" All In One Smart Industrial Touch Screen Computer Panel PC Android Windows System
  • 55" All In One Smart Industrial Touch Screen Computer Panel PC Android Windows System
  • 55" All In One Smart Industrial Touch Screen Computer Panel PC Android Windows System
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD55PPCT5K**
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 5-7 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IP Rating IP65 Front Touch Pcap 10 Independent Touch Points
Certification CE, FCC, RoHS Compliance Power Input DC12V,DC24V,DC9-36V
Luminous 350cd/㎡,high Brightness For Optional Mounting VESA Mount, Floor Stand, Wall Mount Bracket
Compatible System Android,Linux,Windows 7/10/11/CE Storage Temperature -20 To 60C
Highlight

55” touch screen computer panel PC

,

Industrial Touch Screen Computer Panel PC
Leave a Message
Product Description

55" all in one smart industrial touch screen computer panel PC Android Windows system



ITD 55” multi-touch screen HMI comfort zero-bezel panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance ARM Based processor or x86 based Intel CPU, and Projected Capacitive Touch (PCT or PCAP) Technology in industrial-grade LCD flat panels, with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD multi-touch HMI comfort panel PC specifically suited for various interactive digital signage and industrial applications.



SPECIFICATIONS





Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 55” 16:9
Active Area/ Pixel Pitch 1209.6(H) × 680.04(V)/0.630×0.630mm
Native Resolution/ Colors 1920 × 1080 /16.7M
Brightness/ Contrast 350cd/㎡(500~1500cd/㎡optional)/1200:1
Response Time/ Viewing Angle(Typical) 8ms/89/89/89/89
Light Source LED Backlight with 50000Hours’Lifetime

SYSTEM

Item ARM Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588 optional) Intel® Celeron J1900/J4125/J6412 2.0GHz

Intel® Core i3/i5/i7

(4th~12th Generation optional)
Chipset Rockchip Intel Bay Trail SoC Intel SoC Chipset
Memory

2GB; 4GB/8GB Optional



Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412)

2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB

DDR4 SODIMM ×2 (8th~12th gen.)
Storage

8GB; 16GB/32GB/64GB/128G Optional



1×mSATA, 1×SATA

1×M.2 (not available for J1900) Default to 64GB SSD

1×mSATA, 1×SATA

1×M.2 Default to 64GB SSD
Graphics Supports max. 4K resolution Intel HD/UHD Graphics (By CPU) Intel HD/UHD Graphics (By CPU)
I/O

1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1 × COM(Optional);

1 × TF Card Support 8~128GB

1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 2×COM port max. 6; 1×Realtek ALC662

Line-Out /MIC IN

1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 2×COM max. 6; 1×Realtek ALC662

Line-Out /MIC IN
LAN 1×10/100/1000Mbps Ethernet 1× 10/100/1000Mbps Ethernet( Dual LAN optional) 1×10/100/1000Mbps Ethernet( Dual LAN optional)
OS

Android 7.1/8/10/11/12, etc.

Linux Ubuntu(optional)

Windows 7/10, Linux

Windows 11(available for J4125/J6412)

Windows 7/10, Linux

Windows 11(available for 7th gen. or above)

GENERAL

Power Input Voltage AC100~240V input
Operation/Power Saving 120~180W
Environment Considerations Operating Temperature 0~50℃
Storage Temperature -20~60℃
Relative Humidity 10%~90%(Non-Condensing)

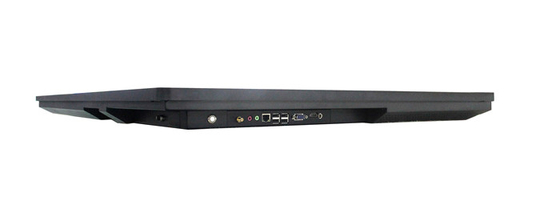

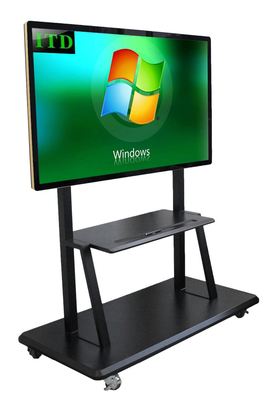

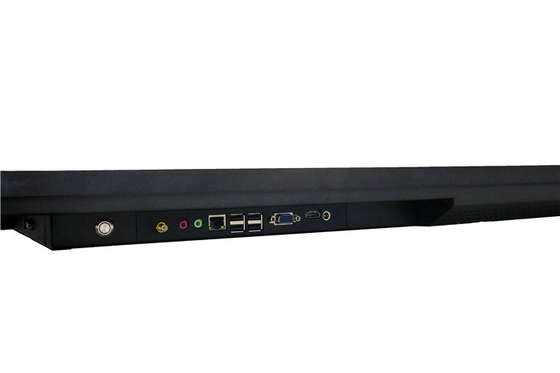

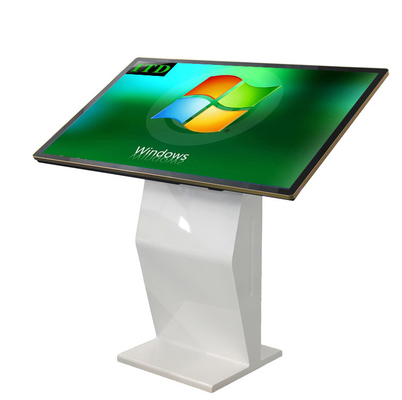

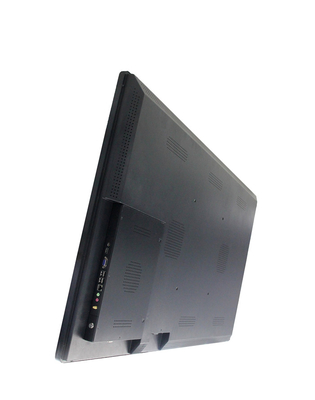

Product display:
