All-Aluminum Fanless Box PC Industrial Rugged Waterproof Box Android Based Embedded Box Computers
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Humidity | 10%~90%(Non-Condensation) | Hard Disk Rack | Default To DDR4 2GB, Max. 8GB |
|---|---|---|---|
| Storage Temperature | -20~70℃ | Processor | ARM Quad Core RK3568, Cortex-A55 |
| Video Outputs | 1 X HDMI | Operating Temperature | -20℃ To +60℃ |
| Power Supply | DC 9~36V |
Product Description
INTRODUCTION:
The ITD rugged waterproof box Android PC is designed to withstand harsh environmental conditions such as exposure to water, dust, and extreme temperatures. It is rugged and reliable computing solution that can be used in a wide range of applications, including industrial automation, outdoor surveillance, and marine environments. IP65/IP66/IP67 rating indicates that the box PC is completely protected against dust and can withstand immersion in water up to a certain depth for a specified amount of time. Rugged IP65/IP66/IP67 waterproof box computer is a robust and durable computing solution that is designed to withstand harsh environments and extreme conditions.
Features:
•Robust aluminum alloy enclosure, sealed I/O from particles, water, and corrosive agents
•Full IP65/66/IP67 and sealed with anti-corrosive rubber to providing 360 degree protection
•Rugged aluminum alloy enclosure with high EMC and IP65/IP66/67 NEMA4/4X protection
•High performance ARM based computing capabilities with low power consumption
•Fanless design, anti-Shock and anti-vibration
•CE, FCC, RoHS Compliance
Specification
Specifications |
|||||||
| System | cpu | ARM Quad Core RK3568, Cortex-A55 | |||||
| Chipset | Rockchip | ||||||
| GPU | Mali-G52-2EE High Performance | ||||||
| ROM | Default to eMMC 16GB, Max. 256GB | ||||||
| SDRAM | Default to DDR4 2GB, Max. 8GB | ||||||
| Decoding Resolution | Support 1080P/H.265(4K2K) | ||||||
| Operating System | Android 11 | ||||||
| Network | Bluetooth | Bluetooth 4.1 | |||||
| LAN | 1 × RJ45 (10M/100M Ethernet) | ||||||
| WiFi | 2.4GHz, 802.11b/g/n/AC, Dual Band optional | ||||||
| 4G/5G | optional | ||||||

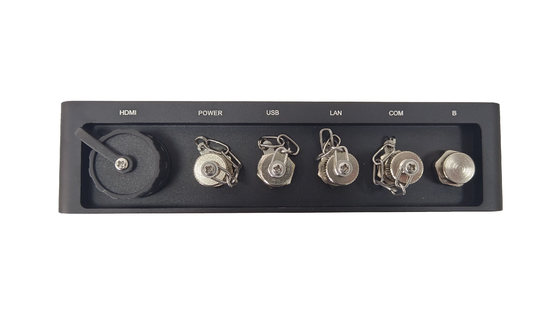

| I/O Port | Serial Ports |
1 × COM |
|||||
| USB Ports | 2 × USB 2.0 | ||||||
| LAN | 1 × RJ45 | ||||||
| Video Output |
1 × HDMI Output |
||||||
| Power | 1 × DC9~36V input | ||||||
| Others | Power Switch | 1 × Power Switch | |||||
| Breathing Valve | 1 × Breathing Valve | ||||||
| Power | Input Voltage | DC 9~36V | |||||
| Operation/Power Saving | 15W | ||||||
| Structure |
Box Material and Surface |
Aluminum Alloy, Full CNC Treated, Anodizing and Anti-scratch Treatment | |||||
| Color | Black or Silver | ||||||
| Mounting Method | VESA Mounting 75 ×75mm | ||||||
| Cooling System | Passive Cooling | ||||||
