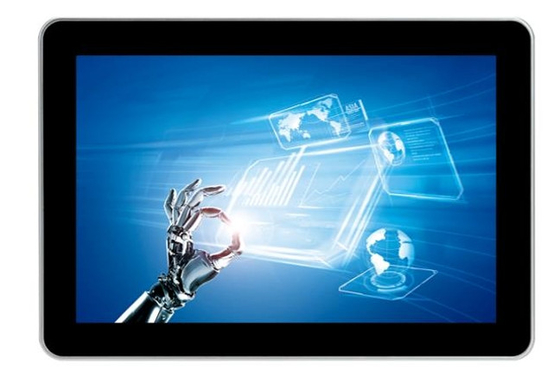

12.1'' PCAP Zero Bezel Touch LCD Panel PC All In One Fanless with Halo LED light strip

  • 12.1'' PCAP Zero Bezel Touch LCD Panel PC All In One Fanless with Halo LED light strip
Place of Origin China
Brand Name ITD/OEM
Certification CE,FCC, RoHS Compliance
Model Number ITD101PPCT5KE1-DC
Document 10.1 inch Zero Bezel PCAP T...DC.pdf
Minimum Order Quantity 1PCS, No MOQ
Price TBA
Delivery Time 10-15 Business days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

INTRODUCTION

ITD 10.1” multi-touch screen HMI comfort zero-bezel panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance ARM Based processor or x86 based Intel CPU, and Projected Capacitive Touch (PCT or PCAP) Technology in industrial-grade LCD flat panels, with sleek & flat front surface and die-casting aluminum chassis. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD multi-touch HMI comfort panel PC specifically suited for various interactive digital signage and industrial applications.



FEATURES

• Easy-to-clean, true flat front surface without bezel eliminating dust and debris build-up at the edge and corners of the display

• Die-casting aluminum chassis for a seamless design and more efficient heat dissipation

• 10-point projected capacitive touch technology with fast response, precise, and stable.

• Halo LED light strip integrated optional adding a more attractive and eye-catching element

• Provides improved power efficiency and reduced consumption

• Ruggedized levels of NEMA 4, IP65 ratings for front panel

• Universal mounting options meeting various installation requirements.

• CE, FCC, RoHS Compliance





SPECIFICATION

Item ARM Solution X86 Solution 1
CPU ARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588 optional) Intel® N100
Chipset Rockchip Intel SOC
Memory 2GB; 4GB/8GB Optional Dual Channel, DDR4 3200/ DDR5 4800 Max.18GB
Storage 8GB; 16GB/32GB/64GB/128G Optional 1×mSATA, 1×SATA
Graphics Supports max. 4K resolution Intel UHD Graphics (By CPU)
I/O 1 × HDMI Output; 1 × USB 2.0, 1× USB 3.0; 1 × RS232; 1 × RJ45 1 × TF Card Slot; 1 × Audio IN&OUT 1×HDMI Output; 3×USB 3.0; 1×Type C; 1×Audio IN&OUT; 1 × RJ45
LAN 1×10/100/1000Mbps Ethernet 1× 10/100/1000Mbps Ethernet
OS Android 7.1/8/10/11/12, etc. Windows 10/11, Linux
Panel Cell Type/Glass Surface Color TFT LCD
Aspect Ratio/Size 10.1”/16:10
Active Area/Pixel Pitch 216.96(H) ×135.6(V)mm/0.1695 × 0.1695mm
Native Resolution/Colors 1280×800/16.7M
Response Brightness/Contrast 350cd/㎡(500~1000 cd/㎡optional)/800:1
Viewing Angle(Typical) 85/85/85/85
Light Source LED backlight with 50000hours’lifetime
Power Input  DC 12V
Operation/Power Saving 10~20W
Operating Temperature 0~50℃
Storage Temperature -10~60℃
Relative Humidity 10%~80%(Non-Condensing)



12.1'' PCAP Zero Bezel Touch LCD Panel PC All In One Fanless with Halo LED light strip 012.1'' PCAP Zero Bezel Touch LCD Panel PC All In One Fanless with Halo LED light strip 112.1'' PCAP Zero Bezel Touch LCD Panel PC All In One Fanless with Halo LED light strip 2
