15" Industrial HMI Touch Panel PC for CNC Machine Control System Wide DC Support
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD15PPCT5O* |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 1024*768 | Brightness | 350nits |
|---|---|---|---|
| CPU X86 Solution | Intel Celeron J1900/J4125/J6412 2.0GHz | X86 Solution 2 | Intel Core I3/i5/i7 (4th~13th Generations Optional) |
| Input Voltage | DC12V | Communication Method | USB Port |
Product Description

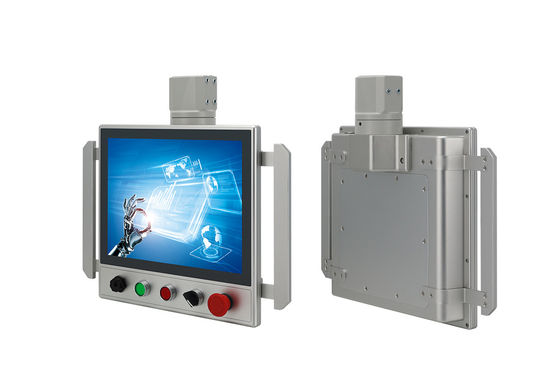

15" Industrial HMI Touch Panel PC for CNC Machine Control System Wide DC Support
The ITD integrated buttons operation panel PC typically features a touchscreen display, allowing users to interact directly with the interface by tapping or swiping on the screen. In addition to the touchscreen functionality, the device incorporates physical buttons that are strategically placed on the panel for specific functions. These buttons may serve as shortcuts, control inputs, or dedicated keys for certain tasks, enhancing the overall user experience and efficiency. It is mainly used for industrial automation, manufacturing control systems, medical equipment interfaces, and more. The integration of physical buttons with a touchscreen interface aims to strike a balance between the convenience of touch interaction and the precision of dedicated buttons, catering to a wide range of user preferences and operational requirements.
DISPLAY
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 15”/4:3 | |
| Active Area/ Pixel Pitch | 304.128(H × 228.096(V)mm/0.297 × 0.297mm | |
| Native Resolution/ Colors | 1024 ×768/16.7M | |
| Brightness/ Contrast | 350cd/㎡/1000:1 | |
| Response Time/ Viewing Angle(Typical) | 30ms/89/89/89/89 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | X86 Solution 1 | X86 Solution 2 |
| CPU | Intel® Celeron J1900/J4125/J6412 2.0GHz | Intel® Core i3/i5/i7 (4th~13th Generations Optional) |
| Chipset | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory | Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412) | 2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~12th gen.) |
| Storage | 1×mSATA, 1×SATA, 1×M.2 (not available for J1900) Default to 64GB SSD | 1×mSATA, 1×SATA, 1×M.2 Default to 64GB SSD |
| Graphics | Intel HD/UHD Graphics (By CPU) | Intel HD/UHD Graphics (By CPU) |
| I/O | 1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; COM port(optional); 1×Realtek ALC662, Line-Out /MIC IN | 1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 1×COM max. 6; 1×Realtek ALC662, Line-Out /MIC IN |
| LAN | 1× 10/100/1000Mbps Ethernet( Dual LAN optional) | 1×10/100/1000Mbps Ethernet( Dual LAN optional) |
| OS | Windows 7/10, Linux ; Windows 11(available for J4125/J6412) | Windows 7/10, Linux; Windows 11(available for 7th gen. or above) |
GENERAL
| Power | Input Voltage | DC 12V input |
| Operation/Power Saving | 15~30W | |
| Touch Panel | Touch Type | Projected Capacitive Touch |
| Touch Points | 10 Points | |
| Communication Method | USB Port | |
| Driver Support | Driver-free, Plug and Play | |
| Surface Hardness | Chemically Tempered Glass, Mohs 7, Vandal-proof | |
| Environment Considerations | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ | |
| Operating Humidity | 10%~80% (Non-Condensing) | |
| Storage Humidity | 10%~85% | |
| Mounting Method | Arm Mount(optional) | |
| Indication and Operation | Standard USB, Green Button, Red Button, Selector Switch, Emergency Stop Switch | |
| Operating vibration | SSD Applied: 1.5 Grams, IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr./axis | |
| Operating shock | SSD Applied: 10 G, IEC 60068-2-27, Half Sine Wave, Duration 11ms | |
| 15” Integrated Buttons Panel PC with PCAP Touch J1900/ITD15PPCT5OJ1 | ||
| 15”Integrated Buttons Panel PC with Tempered Glass No Touch J1900/ITD15PPCG1OJ1 | ||
| 15”Integrated Buttons Panel PC with PCAP Touch J4125/ITD15PPCT5OJ4 | ||
