Rugged Waterproof Enclosure Embedded Android PC industrial IP67 MINI PC
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD-MNPC-IPAN-3588 |
| Document | Rugged Waterproof Box Andro...8).pdf |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,wooden case,pallet |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 10000 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | ARM Octa Core RK3588, Cortex-4×A76+4×A55 | GPU | Mali-G610 MP4 Quade GPU Supports OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS |
|---|---|---|---|
| SD RAM | Default To LPDDR4/LPDDR4x 4GB 64bit LPDDR4/LPDDR4x, Max. 64GB | ROM | Default To EMMC 32GB, Max. 128GB |
| Bluetooth | Bluetooth 5.2 | Serial Ports | 1 X COM |
| Video Input | HDMI | Power | 1x DC9-36v |
Product Description
Rugged Waterproof Enclosure Embedded Android PC industrial IP67 MINI PC
The ITD rugged waterproof box Android PC is designed to withstand harsh environmental conditions such as exposure to water, dust, and extreme temperatures. It is rugged and reliable computing solution that can be used in a wide range of applications, including industrial automation, outdoor surveillance, and marine environments. IP65/IP66/IP67 rating indicates that the box PC is completely protected against dust and can withstand immersion in water up to a certain depth for a specified amount of time. Rugged IP65/IP66/IP67 waterproof box computer is a robust and durable computing solution that is designed to withstand harsh environments and extreme conditions.
Specifications:
| System | CPU | ARM Octa Core RK3588, Cortex-4×A76+4×A55 |
| GPU |
Mali-G610 MP4 Quade GPU Supports OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS |
|
| Chipset | Rockchip | |
| SDRAM | Default to LPDDR4/LPDDR4x 4GB 64bit LPDDR4/LPDDR4x, Max. 64GB | |
| ROM | Default to eMMC 32GB, Max. 128GB | |
| Speakers | Optional | |
| Multi Media | VPU 8K@60fps H.265/H.264/VP9 Video Decoding NPU Computing Power; 6Tops, 8K Video Encoding and Decoding | |
| Operating System | Android 12 | |
| Communication | Bluetooth | Bluetooth 5.2 |
| GPS | Optional | |
| WiFi6 |
2.4GHz&5GHz,IEEE 802.11b/g/n/AC, (Built-in High-Performance SDIO Interface WiFi6 Module)
|
|
| 4G/5G | Optional | |
| Default Waterproof I/O | Serial Ports | 1 × COM |
| USB Ports | 2 × USB 2.0, Max.: 6× USB 2.0(1× USB 3.0 included) | |
| LAN | 1 × RJ45 (10M/100M/1000M Ethernet) | |
| Video Output | 1 × HDMI Output | |
| Power | 1 × DC9~36V input | |
| Others | Power Switch | 1 × Power Switch |
| Breathing Valve | 1 × Breathing Valve | |
| Power | Input Voltage | DC 9~36V |
| Operation/Power Saving | 15W | |
| Structure | Housing Material | Aluminum Alloy, Full CNC Treated, Anodizing and Anti-scratch Treatment |
| Color | Black or Silver | |
| Mounting Method | VESA Mounting 75 ×75mm | |
| Cooling System | Die-Casting Aluminum Chassis with Passive Cooling | |
| Environment Considerations | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90%(Non-Condensation) | |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10 G/Peak (11 ms) | |

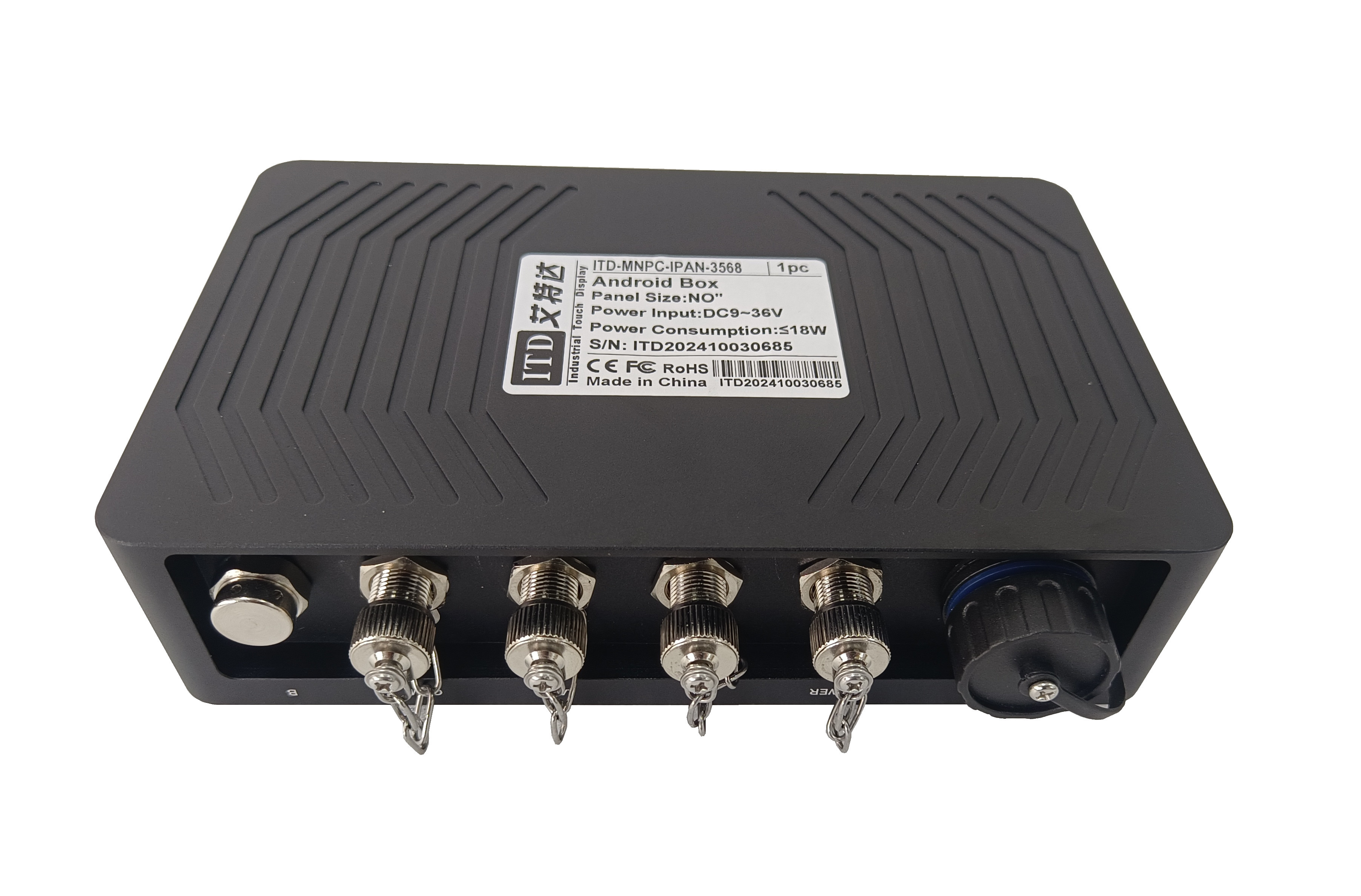

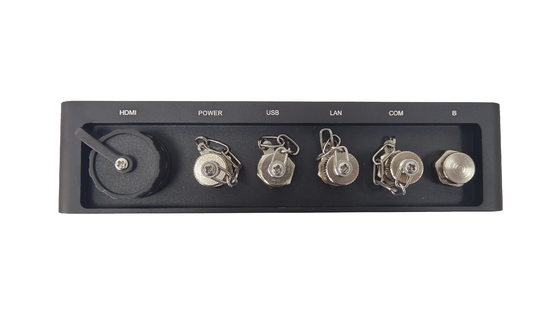

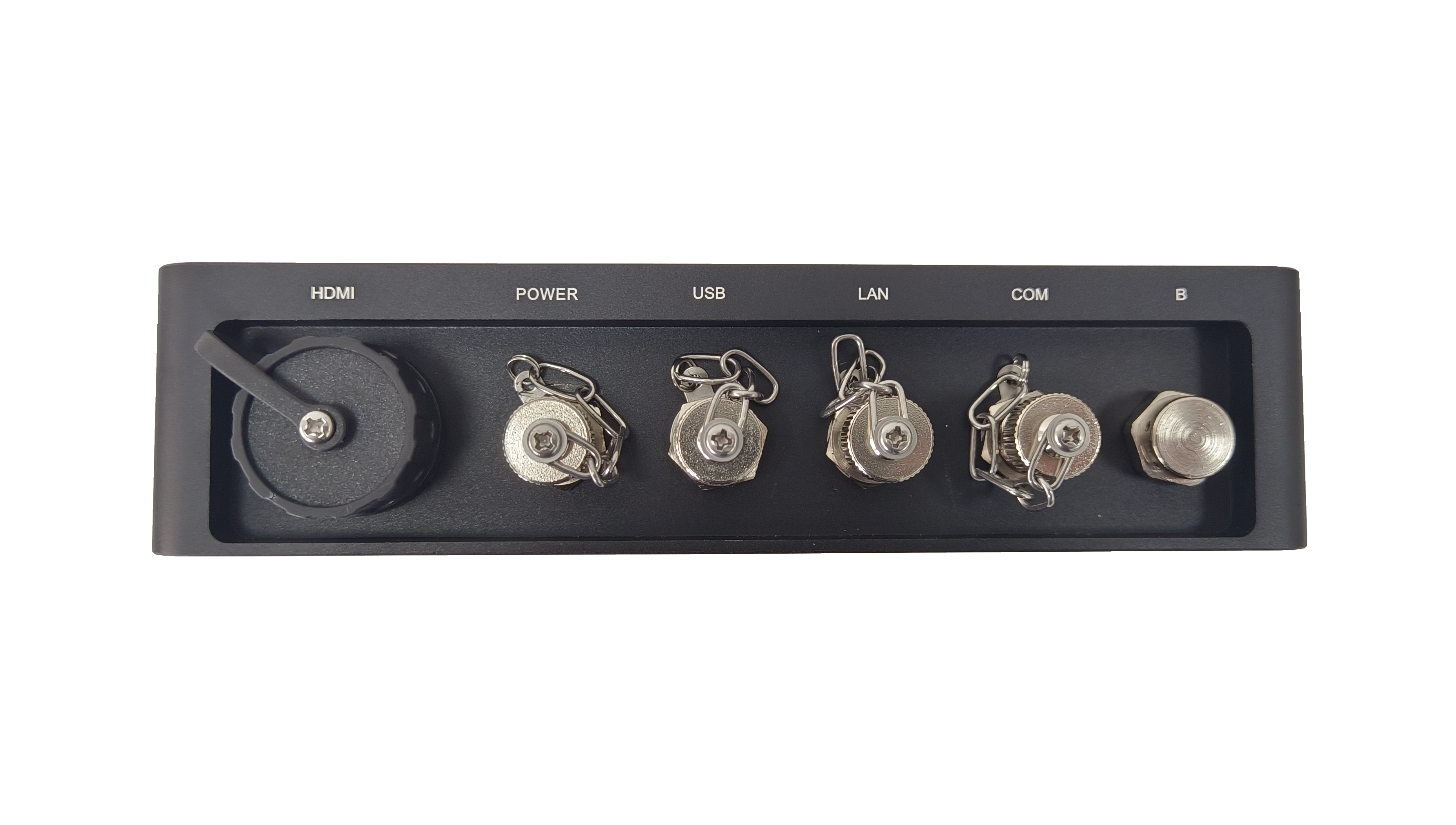

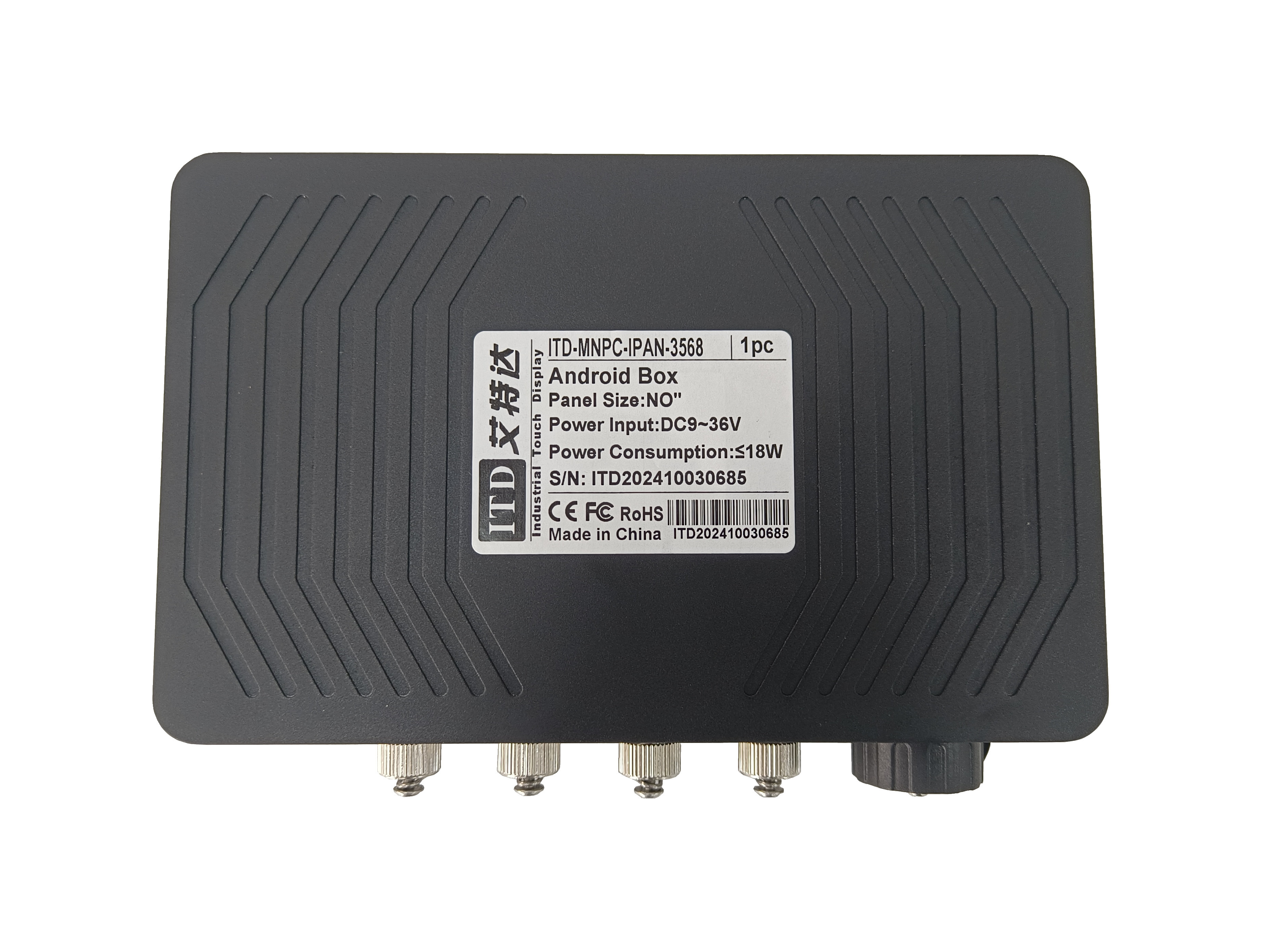

Product image:
